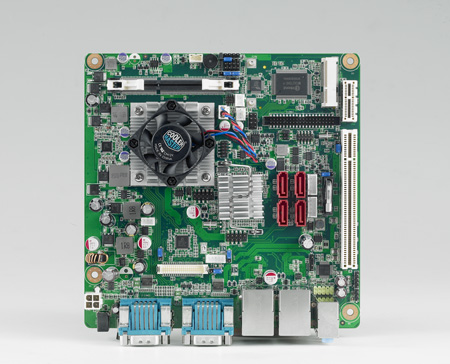

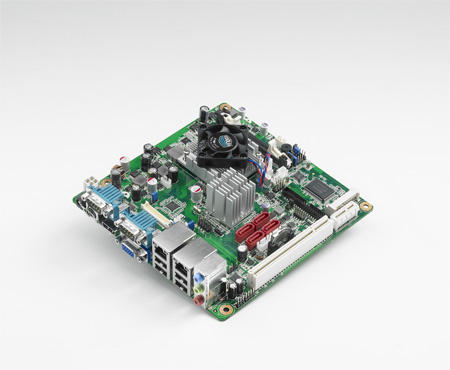

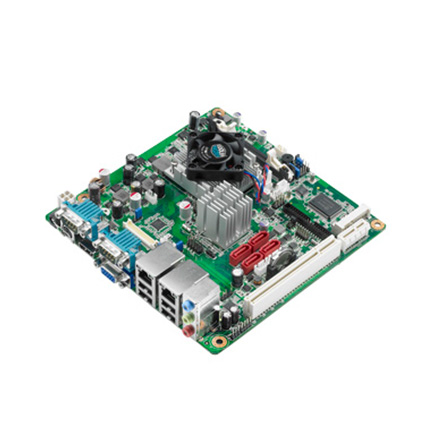

AIMB-223 Mobile AMD G-series Dual Core/Single Core Mini-ITX with CRT/LVDS/HDMI, 6 COM and Dual LAN
Call for Price
AIMB-223 supports AMD Mobile G-series Dual Core/Single Core processor. One 204-pin SODIMM up to 2 GB DDR3 1333 MHz SDRAM. Supports VGA/LVDS/HDMI. Dual LANs, 6COM, Mini PCIe, and Cfast. Supports embedded software APIs and Utilities.
Please click the link below to open the PDF datasheet
View Datasheet -
- Supports AMD Mobile G-series Dual Core/Single Core processor
- One 204-pin SO-DIMM up to 4 GB DDR31066/1333 MHz SDRAM

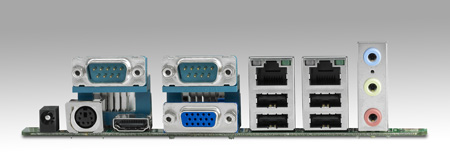

- Supports Dual display with CRT/HDMI/LVDS (eDP)
- Dual LANs, 6COM, Mini PCIe, and CFast
- Supports SUSIAccess and Embedded Software APIs
See Datasheet
