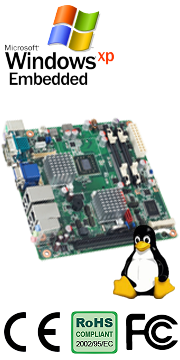

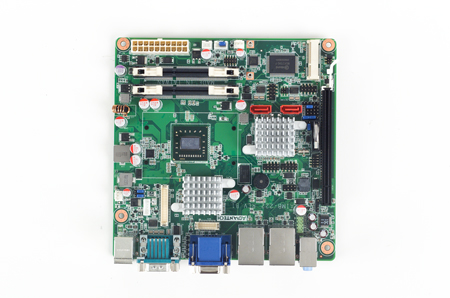

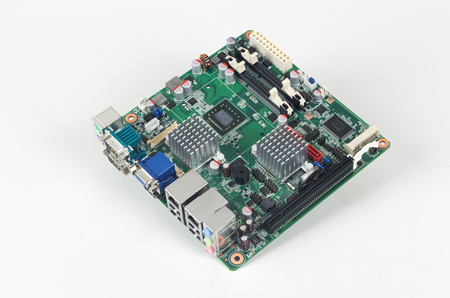

AIMB-222 AMD Mobile Athlon™ II Neo/Turion™ II Neo Mini-ITX with CRT/LVDS/HDMI/DVI, 4 COM and Dual LAN
£0.00 excl. vat
AIMB-222 supports AMD Mobile Athlon™ II Neo/AMD Turion™ II Neo ASB2 BGA processors. Two 204-pin SODIMM up to 4 GB DDR3 1066 MHz SDRAM. Supports VGA/LVDS/HDMI, DVI is optional. Dual LANs, 4COM, Mini PCIe, and CFast. Supports embedded software APIs and Utilities.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Supports AMD Mobile Athlon™ II Neo/AMD Turion™ II Neo ASB2 BGA processors.
- Two 204-pin SODIMM up to 4 GB DDR3 1066 MHz SDRAM
- Supports VGA/LVDS/HDMI, DVI is optional
- Dual LANs, 4COM, Mini PCIe, and CFast
- Supports embedded software APIs and Utilities
- Processor System (AMD Turion II Neo)
- Max. Speed: 2.2 GHz (dual-core 25W TDP)
- L2 Cache: 2 MB
- Chipset: AMD 785E + SB820
- BIOS: AMI 16 Mbit SPI
- Max. Speed:1.5 GHz (Dual-Core 15W TDP)
- L2 Cache: 2 MB
- Chipset: AMD 785E + SB820
- BIOS: AMI 16 Mbit SPI
- Max. Speed: 1.7 GHz (Single-Core 12W TDP)
- L2 Cache: 2 MB
- Chipset: AMD 785E + SB820
- BIOS: AMI 16 Mbit SPI
- PCI: –
- Mini-PCIe: 1
- PCIe: PCIe x8 (PCIe gen 2)
- Technology: Dual channels DDR3 1066 MHz SDRAM
- Max. Capacity: 4 GB
- Socket: 2 x 204-pin SODIMM
- Controller: ATI Radeon™ HD4200 serial, supports OpenGL 2.0, DirectX10, H.264, VC1
- VRAM: Side port memory 128 MB (Optional)
- VGA: Supports up to 2560 x 1536 @ 32bpp
- LVDS: Supports 24-bit dual channel and up to 1920 x 1200
- DVI: (optional) 1920 x 1200 @ 60 MHz
- HDMI: 1920 x 1200 @ 60 MHz
- Dual Display: Supports dual display of any two display device (CRT, LVDS, HDMI, DVI)
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: RTL8111DL; GbE LAN2: RTL8111DL
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 2
- Mode: None
- Channel: None
- Cfast compactFlash: Cfast type I/II
- VGA: 1
- DVI: 1
- Ethernet: 2
- USB: 4
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 2 (RS-232)
- LVDS & Inverter: 1
- DVI: 1 (optional)
- USB: 4 (USB 2.0 compliant)
- Serial: 2 (RS-232, 5V/12V by jumper selection)
- IDE: None
- SATA: 2
- Cfast compactFlash: 1
- Parallel: None
- GPIO: 8-bit
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On: AMD Turion II Neo Dual Core Processor, 4GB DDR3 DIMM
- Operating Temp:0 ~ 60° C (32 ~ 140° F)
- Non-Operating Temp: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Processor System (AMD Turion II Neo)
Processor System(AMD Athlon II Neo)
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD
Rear I/O
Internal Connector
Watchdog Timer
Power Requirement
+5 V/2.88 A + 3.3 V/0.89 A +12 V/1.79 A +5 VSB/0.09 A
Environment
Physical Characteristics
