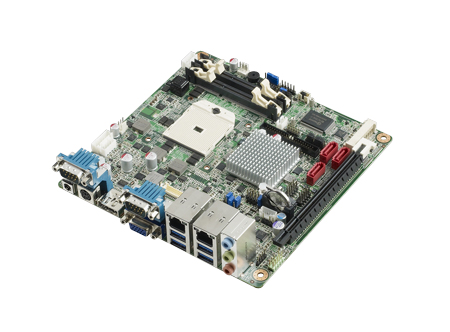

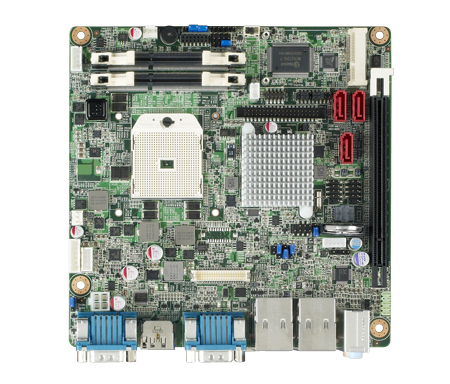

AIMB-224 Mobile AMD R-series Quad Core/Dual Core Mini-ITX with VGA/LVDS/HDMI/DP/eDP, 6COM and Dual LAN
Call for Price
Mobile AMD R-series Quad Core/Dual Core Mini-ITX with VGA/LVDS/HDMI/DP/eDP, 6COM and Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet - Supprt AMD Mobile eTrinity Quard core/Dual Core processor
- Two 204-pin SODIMM up to 16 GB DDR3 1066/1333/1600 MHz SDRAM
- Supports VGA/LVDS/HDMI/DP/eDP
- Daul LANs, 6COM, 2Mini PCIe
- Supports embedded software APIs and Utilities
- Processor System
- CPU: AMD Quad Core R-464L
- Max. Speed: 2.3 GHz (Quad core 35W)
- L2 Cache: 1M/per core
- Chipset: AMD R-series+A75M
- BIOS: AMI EFI 16 Mbit SPI
- CPU: AMD Quad Core R-460H
- Max. Speed: 1.9 GHz (Quad core 35W)
- L2 Cache: 1M/per core
- Chipset: AMD R-series+A75M
- BIOS: AMI EFI 16 Mbit SPI
- CPU: AMD Dual Core R-272F
- Max. Speed: 2.7 GHz (dual core 35W)
- L2 Cache: 1M/per core
- Chipset: AMD R-series+A75M
- BIOS: AMI EFI 16 Mbit SPI
- CPU: AMD Dual Core R-268
- Max. Speed: 2.5 GHz (dual core 35W)
- L2 Cache: 1M/per core
- Chipset: AMD R-series+A75M
- BIOS: AMI EFI 16 Mbit SPI
- PCI: None
- Mini-PCIe: 1 x H/S & 1 x F/S colay mSATA
- PCIe: PCIe x8
- Technology: Dual Channel DDR3 1066/1333/1600 MHz
- Max. Capacity: 16 GB/8 GB per SO-DIMM
- Socket: 2 x 204-pin SO-DIMM (Non-ECC)
- Controller: AMD Radeon™ GPUs, support DX11, UVD3
- VRAM: None
- VGA: Supports up to 4096 x 2400 @ 60 Hz
- LVDS: Supports dual channel 48 bit up to 1920 x 1200, co-lay eDP (by BOM option)
- DP++: Two dual model display port, max resolution: 1920 x 1200 @ 60Hz
- Triple Display: Supports triple display with CRT+DP1.2+LVDS or DP1.2+DP1.2+LVDS or CRT+DP1.2+eDP or DP1.2+DP1.2+eDP
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek 8111E; GbE LAN2: Realtek 8111E
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 600 MB/s
- Channel: 3
- VGA: 1
- DP: 2
- Ethernet: 2
- USB: 4 (2 USB 3.0 & 2 USB 2.0)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 1 (RS-232)
- DCjack: 1 (2.5 mm)
- KB/MB: 1
- LVDS & Inverter: 1
- USB: 6 (USB 2.0)
- Serial: 5 (4 x RS-232, 1 x RS-232/422/485; COM 6 support RS-232/422/485 auto flow control; COM 3 support 5V/12V by
- IDE: None
- SATA: 3
- Parallel: None
- GPIO: 8-bit
- Output System: reset
- Interval: Programmable 1 ~ 255 sec/min
- Typical:
- Operating: Temperature: 0 ~ 60° C (32 ~ 140° F)
- Non-Operating: Temperature: -40 ~ 85° C (-40 ~ 185° F)
Expansion Slot
Memory
Graphics
Ethernet
SATA

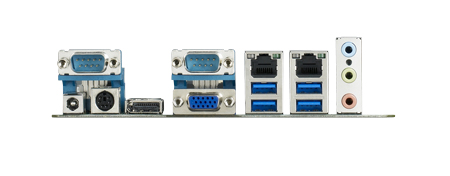

Rear I/O
Internal Connector
jumper selection)
Watchdog Timer
Power Requirement
Single Voltage 12V DC input by 1x External DC phone Jack or 1x Internal 2×2-pin Power Connector;
AT/ATX Supported by Jumper
Max power consumption: 90W(R-464L/R-460H+16G DDR3 RAM)
