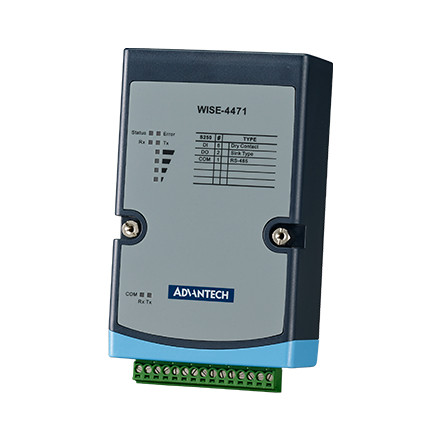

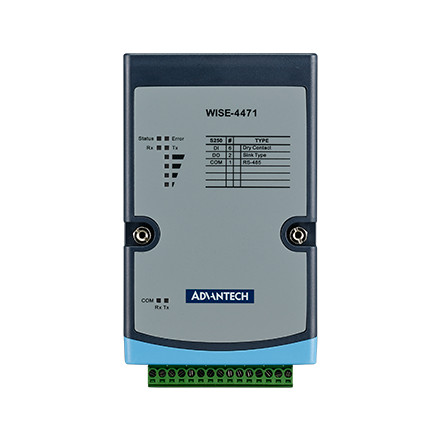

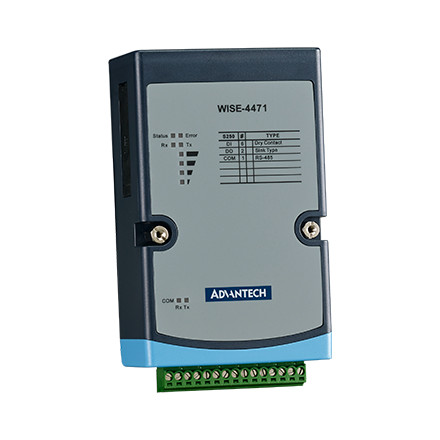

WISE-4471-S250 NB-IoT / eMTC IoT Wireless Sensor Node
£200.00 excl. vat
WISE-4471 series is a 4G cellular based NB-IoT wireless sensor node compliant with LTE Cat. NB1 and Cat. M1 with built in antenna for flexible installation. In addition to offering various I/O types, WISE-4471 series provides a data logger and direct cloud connectivity so that data can be published to the cloud by messaging protocol such as MQTT, CoAP, LWM2M with secure socket supported.
Please click the link below to open the PDF datasheet
View Datasheet -
- Global coverage of NB-IoT and eMTC frequency bands
- Application-ready I/O combination with optional IP65 I/O
- Wide voltage power input with 10 ~ 50VDC
- Data buffered function with time stamp reducing data lost
- Fast and easy deployment to reduce operation cost
- Supports direct cloud service for IoT integration
- Supports MQTT and CoAP protocols
Wireless Communication
-
- 3GPP Standards: R.13, Cat. NB1/ Cat. M1
- Frequency Band: 2, 3, 4, 5, 8, 12, 13, 20, 28
- Antenna Type: Internal
General
-
- Power Input: 10 ~ 50VDC external power
- Power Consumption: 2.0 W
- Configuration Interface: Micro-B USB
- SIM: 3FF/Micro SIM
- Connector:
WISE-4471-S2xx: Plug-in screw terminal block (I/O and power)
WISE-4471-S4xx: M12 4-pin code-A male x 1 (Power)
M12 8-pin code-D female x 1 (I/O)
-
- LED Indicator: Status, Error, Tx, Rx, Signal Level
- Mounting: DIN 35 rail, wall, pole and stack
- Dimension (W x H x D): 70 x 112 x 38 mm
- Certification: CE, NCC, FCC, IC
WISE-S250 (6DI, 2DO& 1RS-485)
-
- Digital Input
- Channels: 6 (Dry Contact)
- Supports 3kHz Frequency Input
Digital Output
-
- Channels: 2
Serial Port
-
- Port Number: 1
- Type: RS-485
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Odd, Even
- Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Protocol: Modbus/RTU (Total 64 addresses by 30 max. instructions)
