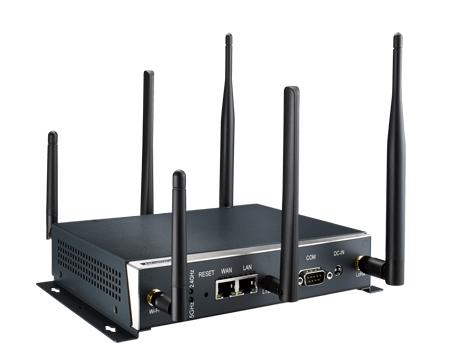

WISE-3610 Wireless IoT LoRa Private Network Gateway
Call for Price
WISE-3610 is Qualcomm ARM Cortex A based hardware platform, which is operating at OpenWRT, described as a Linux distribution for embedded devices. The Advantech WISE-3610 Industrial Router is Advantech IoT gateway design for smart city, Industrial 4.0 applications, even those in harsh environment, leveraging wireless sensor technology. This IoT gateway can aggregate both the wireless sensor networks (WSN), including Low Power WAN (LPWAN) technology by Advantech private LoRa technology, wired sensors and ties them into an IP network. With modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands, wireless communication protocol by various uplink requirement and quickly go to market.
Please click the link below to open the PDF datasheet
View Datasheet -
- Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
- Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2×2)
- LPWAN LoRa Private (WISE-Link) Connectivity
- WAN x1 / LAN x1 Gigabit Ethernet
- Integration of Modbus TCP networks
- IPSec / L2TP VPN Traffic Encryption
- Rich Network Scanrio by Easy S/W Configuration
- Modularization hardware design with 2 miniPCIe slot
- OpenWRT BSP embeded
- Web UI user interface
Processor System
-
- CPU: QCA Quad-core ARM Cortex A7 CPU 716 MHz
- RAM: DDR3L 256MB
- Flash: 128MB
Ethernet
-
- WAN: 1 10/100/1000 Mbps
- LAN: 1 10/100/1000 Mbps
Security
-
- VPN Engine: IPsec, L2TP
Connectivity
-
- Wi-Fi: 2×2 IEEE802.11ac MU-MIMO 2.4GHz / 5GHz Qualcomm® VIVE™ technology
- LoRa: LoRa Private Network – WISE-Link up-to 500 sensor nodes support
- 4G/LTE (Option): 4G miniPCIe card
Expansion
-
- SD socket: 1 x Micro SD socket
- mini PCIe: 1 x Full size mini PCIe slot
1 x Full size mini PCIe Module For LoRa Host
-
- SIM: 2 x Micro SIM slot
I/O (Edge)
-
- USB: 1 x USB 3.0 type A
- Serial Port: 1 x RS-232/422/485 (DB9 Male) Configure by hardware switch on board
- Antenna: 6 x SMA Connector
Wi-Fi: 2 x RP-SMA
LoRa: 2 x SMA
Optional for 4G: 2 x SMA (1 x Rx Diversity)
-
- LED: 6 x PWR/LoRa/Wi-Fi 2G/Wi-Fi 5G/USB/WWAN
- Button: 1 x Reset button
Power
-
- Power Supply Voltage: 9 – 24V
- Power Type: DC-in
- Power Comsuption: 18 Watt
Environment
-
- Operational Temperature: -20 ~ 70 °C
- Operating Humidity: 5 ~ 95% Relative Humidity, non-condensing
Mechanical
-
- Dimensions (W x D x H): 187.9mm x 150mm x 39mm
Operating System
-
- OpenWRT Barrier Breaker (Linux (3.14))
Network Sub-sysem
-
- L2/3 multilayer switch / router
- Access Control List mask rules
- Hardware network address translation (NAT) engine
Network Connectivity
-
- 4 x scenario configurations by corresponding communicaiton network support
– NorthBond: WWAN (4G), WAN, Wi-Fi (2.4Ghz or 5Ghz)
– SouthBond: LAN, Wi-Fi (2.4Ghz or 5Ghz), LoRa
Depend on different application environment for corresponding configuration
Cloud
-
- WebAccess / SCADA & WISEPaaS / EdgeSense & ARM Pelion
Certification
-
- TELEC, CE/FCC/IC Class B, SRRC, VCCI, BSMI, NCC
