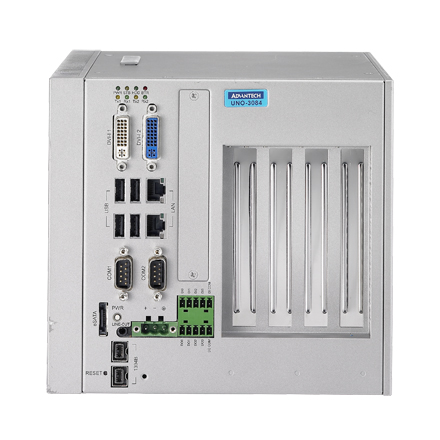

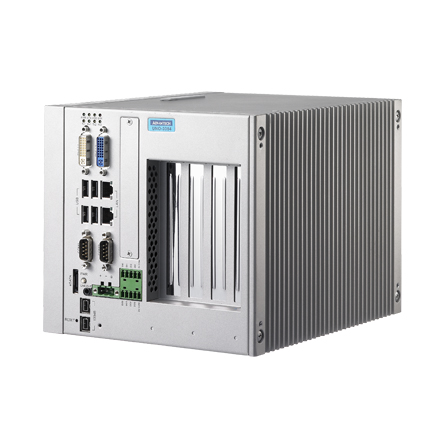

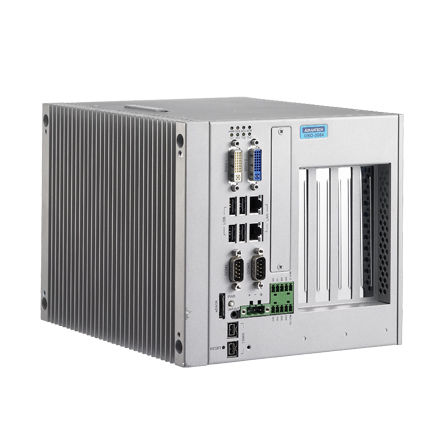

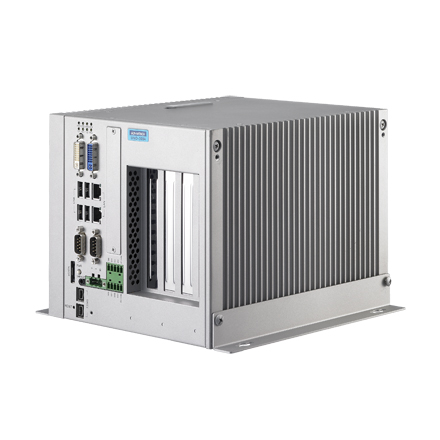

UNO-3084 Intel® Core™ 2 Duo Automation Computer with Dual DVI, 1 x PCIe, 3 x PCI and FireWire
Call for Price
UNO-3082 and UNO-3084 are high performance Core 2 Duo Embedded Automation Computers with up to four expansion slots for PCI express or PCI support. The Gigabit LAN on the UNO-3082/3084 supports Teaming function with fault tolerance, link aggregation, and load balance features. They are also equipped with two IEEE 1394b bilingual interfaces which allow users to connect their own devices for machine vision application. Critical data can be saved on the battery backup SRAM. They also support two HDD bays with RAID 0/1.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Core 2 Duo L7500 1.6 GHz processor
- Dual DVI-I to support up to 3 displays
- Dual IEEE-1394 for vision inspection devices
- AT/ATX power mode by jumper selection
- Onboard 512KB Battery- backup SRAM
- Two RS-232/422/485 ports with automatic flow control
- Two 10/100/ 1000 Base-T RJ-45 ports with teaming function support
- Up to three PCI and one PCIe x 1 board expansion
- 4-ch isolated DI, 4-ch isolated DO
- Dual SSD/HDD with onboard RAID 0/1 support
- Fanless design with no internal cables
- Isolation between chassis and power ground
- Front-accessible I/O design
- One internal USB for dongle and flash drive
- General
- Certification: CE, FCC class A, UL, CCC
- Dimensions (W x H x D): UNO-3082: 157 x 238 x 177 mm (6.2″ x 9.3″ x 7.0″)
- Enclosure: Aluminum + SECC

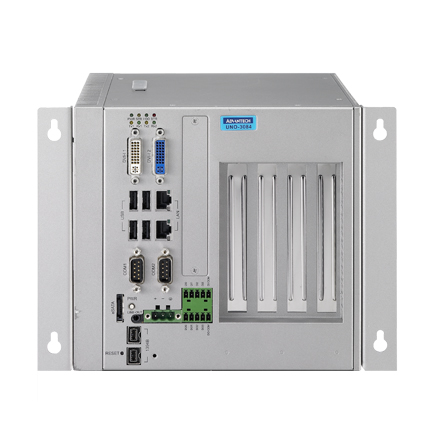

- Mounting: Wallmount, Stand, Panel
- Industrial Grounding: Isolation between chassis and power ground
- Power Consumption: 40 W (Typical, no add-on card)
- Power Requirement: 9 ~ 36 VDC (e.g +24 V @ 5 A), ATX, AT/ATX power Jumper
- Weight: UNO-3082: 4.5 kg / UNO-3084: 5.0 kg
- OS Support: WES, Windows XP Embedded, Windows Vista/XP,
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows CE/XPe
- CPU: Intel Core 2 Duo L7500 1.6 GHz
- Memory: 2 GB/4 GB DDRII SDRAM built-in
- Battery Backup: SRAM 512 KB
- Expansion Slots: UNO-3082: 2 x PCI V2.2 slots
- PCI Slot Power: 12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A,
- Indicators: LEDs for Power, Standby, HDD, SRAM battery, Rx/Tx for COM
- Audio: AC 97, Line Out
- Storage: CF: 1 x internal type I/ II CompactFlash slot
- Display Dual: DVI-D independent,
- Watchdog Timer: Programmable 256 level timer interval, from 1~255 sec
- LAN: 2 x 10/100/1000Base-T RJ-45 ports (Intel 82574L, supports
- Serial Ports: 2 x RS-232/422/485 with DB9 connectors, automatic RS-485 data
- Serial Speed: RS-232 Speed: 50 bps ~ 115.2 kbps,
- USB Ports: 5 x USB 2.0 (one internal), 2 x USB 2.0 pin header
- Optional: I/O PS/2 KB/MS, 2 x COM-232 (with packing), 2 x USB 2.0, LPT
- Digital Input: 4-ch. contact DI0 ~ DI3
- Digital Output: 4 ch. DO0 ~ DO3
- Counter Source: DI1 & DI3
- Pulse Output: DO2 & DO3
- Can be cascaded as one 32-bit counter/timer
- Down counting, preset counting value
- Timer Time Base: 100 kHz, 10 kHz, 1 kHz, 100 Hz
- Operating Temperature: (IEC 60068-2-2, 100% CPU/ I/O loading)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Humidity: 95% @ 40°C (non-condensing)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
UNO-3084: 195 x 238 x 177 mm (7.6″ x 9.3″ x 7.0″)
selection and BIOS AT simulation (support system reboot
automatically after power recovery)
Windows 7, Linux, QNX
System Hardware
UNO-3084: 1 x PCIe plus 3 x PCI v2.2 slots
+3.3 V @ 6 A (total combined power consumption on the PCI
slots should be less than 40W)
ports
1 x external type I/ II CompactFlash slot
HDD: Two built-in 2.5″ SATA HDD brackets with
support for RAID 0 and RAID 1
One external SATA 2.0 (does not support hot swap)
or DVI-D + Dual VGA cloned displays
I/O Interface
Wake on LAN, Teaming, built-in boot ROM, and IEEE1588
hardware support)
flow control, 2 x RS-232 (optional)
RS-422/485 Speed: 300 bps ~ 921.6 kbps (Max)
IEEE 1394 (Firewire) 2 x type B (Bilingual)
Wet contact: Logic 0: -3 ~ 3 VDC; Logic 1: ±10 ~ 50 VDC
Dry contact: Logic 0: open; Logic 1: close to GND
isolation and ESD protect 1500 VDC,, 50~70 VDC over voltage protection
Opto-Isolator Response: 25µs- Interrupt capable channel: DI0 ~ DI3
1,500 VDC isolation, 200 mA max/channel sink current
Keeps output status after system hot reset
Open collector to 40V (200mA maximum sink current load) and
3 kHz speed
Timer/Counter
Environment
-10 ~ 55°C (14 ~ 131°F)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash®: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
