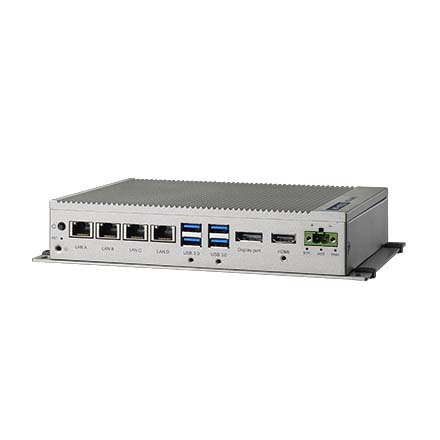

UNO-2484G Modular Compact Embedded Box PC with 6th/7th Gen Intel® Core™ i CPU
Call for Price
Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2484G V2 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission. 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech’s iDoor technology.
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Core™ i7/i5/i3/Celeron Processor with 8GB DDR4 built-in Memory
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact Fanless Design
- Ruggedized by zero cable and lockable I/O design
- Supports 30+ iDOOR combination with four main categories
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance
See Datasheet
