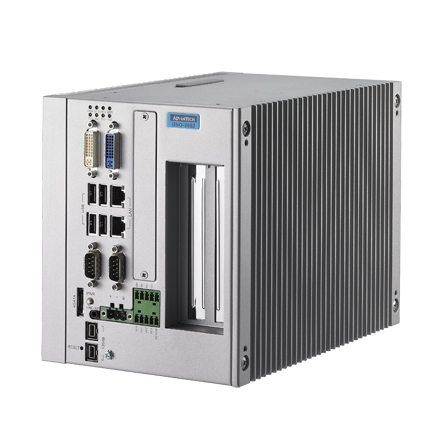

UNO-3082 Intel® Core™ 2 Duo Automation Computer with Dual DVI, 2 x PCI and FireWire
Call for Price
UNO-3082 and UNO-3084 are high performance Core 2 Duo Embedded Automation Computers with up to four expansion slots for PCI express or PCI support. The Gigabit LAN on the UNO-3082/3084 supports Teaming function with fault tolerance, link aggregation, and load balance features. They are also equipped with two IEEE 1394b bilingual interfaces which allow users to connect their own devices for machine vision application. Critical data can be saved on the battery backup SRAM. They also support two HDD bays with RAID 0/1.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Core 2 Duo L7500 1.6 GHz processor
- Dual DVI-I to support up to 3 displays
- Dual IEEE-1394 for vision inspection devices
- AT/ATX power mode by jumper selection
- Onboard 512KB Battery- backup SRAM
- Two RS-232/422/485 ports with automatic flow control
- Two 10/100/1000Base-T RJ-45 ports with teaming function support
- Up to three PCI and one PCIe expansion
- 4-ch isolated DI, 4-ch isolated DO
- Dual SSD/HDD with onboard RAID 0/1 support
- Fanless design with no internal cables
- Isolation between chassis and power ground
- Front-accessible I/O design
- One internal USB for dongle and flash drive
- General
- Certifications CE, FCC class A, UL, CCC
- Dimensions (W x H x D) UNO-3082: 157 x 238 x 177 mm (6.2″x 9.3″x 7″) UNO-3084: 195 x 238 x 177 mm (7.6″x 9.3″x 7″)
- Enclosure Aluminum + SECC
- Mounting Wallmount, Stand, Panel
- Industrial Grounding Isolation between chassis and power ground
- Power Consumption 40 W (Typical, no add-on card)
- Power Requirement 9 ~ 36 VDC (e.g +24 V @ 5 A), ATX, AT/ATX power Jumper selection and BIOS AT simulation (support system reboot automatically after power recovery)
- Weight UNO-3082: 4.5 kg / UNO-3084: 5.0 kg
- OS Support: WES, Windows XP Embedded, Windows Vista/XP, Windows 7, Windows CE 6.0, Linux, QNX
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows CE/XPe
- CPU: Intel Core 2 Duo L7500 1.6 GHz
- Memory: 2GB/4GB DDRII SDRAM built-in
- Expansion Slots: Two PCI V2.2 slots (UNO-3082) One PCIe plus three PCI v2.2 slots (UNO-3084)
- PCI: Slot Power 12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A, +3.3 V @ 6 A (total combined power consumption on the PCI slots should be less than 40W)
- Indicators: LEDs for Power, Standby, HDD, SRAM battery, Rx/Tx for COM ports
- Audio: AC 97, Line Out
- Storage: CF: 1x internal type I/ II CompactFlash slot 1x external type I/ II CompactFlash slot HDD: Two built-in 2.5″ SATA HDD brackets with support for RAID 0 and RAID 1 One external SATA 2.0 (does not support hot swap)
- Display Dual DVI-D independent, or DVI-D + Dual VGA cloned displays
- Watchdog Timer: Programmable 256 level timer interval, from 1~255 sec
- LAN: 2 x 10/100/1000 Base-T RJ-45 ports (Intel 82574L, supports Wake on LAN, Teaming, built-in boot ROM, and IEEE1588 hardware support)
- Serial Ports: 2 × RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control, 2 x RS-232 (optional) </li
- Serial Speed: RS-232 Speed: 50 bps ~ 115.2 kbps, RS-422/485 Speed: 300 bps ~ 921.6 kbps (Max)
- USB: Ports 5 x USB 2.0 (one internal), 2 x USB 2.0 pin header
- IEEE: 1394 (Firewire) 2 x type B (Bilingual)
- Optional: I/O PS/2 KB/MS, 2 x COM-232 (with packing), 2 x USB 2.0, LPT
- Digital Input: 4-ch. contact DI0 ~ DI3 Wet contact: Logic 0: -3 ~ 3 VDC; Logic 1: ±10 ~ 50 VDC Dry contact: Logic 0: open; Logic 1: close to GND isolation and ESD protect 1500 VDC,, 50~70 VDC over voltage protection Opto-Isolator Response: 25μs- Interrupt capable channel: DI0 ~ DI3
- Digital Output: 4 ch. DO0 ~ DO3 1,500 VDC isolation, 200 mA max/channel sink current
- Keeps output status after system hot reset
- Open collector to 40V (200mA maximum sink current load) and 3 kHz speed
- Counter Source: DI1 & DI3
- Pulse Output: DO2 & DO3
- Can be cascaded as one 32-bit counter/timer
- Down counting, preset counting value
- Timer Time Base 100 kHz, 10 kHz, 1 kHz, 100 Hz
- Operating Temperature: (IEC 60068-2-2, 100% CPU/ I/O loading) -10 ~ 55° C (14 ~ 131° F)
- Storage Temperature: -20 ~ 80° C (-4 ~ 176° F)
- Humidity: 95% @ 40° C (non-condensing)
- Shock Protection: IEC 60068-2-27 CompactFlash: 50 G @ wall mount, half sine, 11 ms HDD: 20 G @ wall mount, half sine, 11 ms
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash®: 2 Grms @ 5 ~ 500 Hz, HDD: 1 Grms @ 5 ~ 500 Hz
