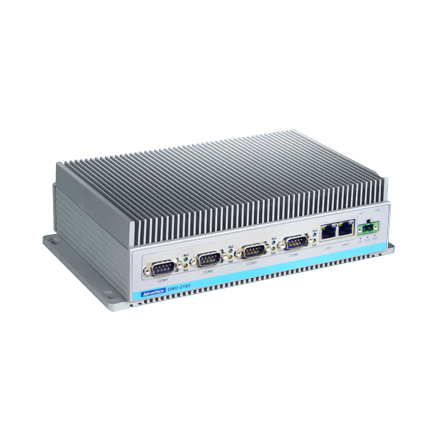

View DatasheetUNO-2182 Intel® Core™ 2 Duo/ Pentium® M/ Celeron® M Automation Computers with 2 x GbE, 4 x COM, DVI
Call for Price
UNO-2172 and UNO-2182 are high-performance Pentium M/ Core 2 Duo grade controllers that support PCI-104 expansion, serial communication ports and several other networking interfaces. They support Windows WES2009 OS, which offers a pre-configured image with optimized onboard device drivers. Windows WES2009 delivers the power of the Windows operating system in componentized form. You can seamlessly integrate your applications into Windows WES2009 and speed up your system development with application-ready platforms that provide rich networking interfaces to fulfill diverse requirements.
- Onboard Intel Core 2 Duo 1.5 GHz (L7400)/ Pentium M 1.6 GHz/ Celeron M 1.5 GHz processors
- Onboard 512 KB battery-backup SRAM
- 2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
- 2 x 10/100/1000 Base-T Ethernet
- DVI-I supports dual display
- Audio with Mic in, Line in, Line out
- 2 x USB 2.0 ports
- PCI-104 expansion
- Windows® WES 2009, WES 7 ready solution
- Supports one SATA HDD and one external eSATA devices
- Onboard system status LED indicators
- Supports wake on LAN and boot from LAN function
- Fanless design with no internal cabling
- Isolation between chassis and power ground
- General
- Certifications: CE, FCC Class A, UL, CCC
- Dimensions (W x D x H): 255 x 152 x 69 mm (10″ x 6.0″ x 2.7″)
- Enclosure: Aluminum
- Mounting: DIN-rail, Wallmount, VESA
- Industrial Grounding: Isolation between chassis and power ground
- Power Consumption: UNO-2182: 35W (Typical)
- Power Requirements: 9 ~ 36 VDC (e.g +24V @ 2A) (Min. 48W), ATX
- Weight: 3.0 kg
- OS Support: Windows 2000/XP, WES7, WES-2009, XPe, CE 5.0 &
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
- CPU: UNO-2182: Core 2 Duo L7400 1.5GHz
- Memory: UNO-2182: 2GB DDR2 SDRAM built-in
- Indicators: LEDs for Power, IDE, Alarm for battery backup SRAM,
- Battery Backup SRAM: 512 KB
- Keyboard/Mouse: 1 x PS/2
- PC/104 Slot: PCI-104 slot, supports +5 & 3.3V power
- Storage: CF: 1 x external type I/II CompactFlash® slot

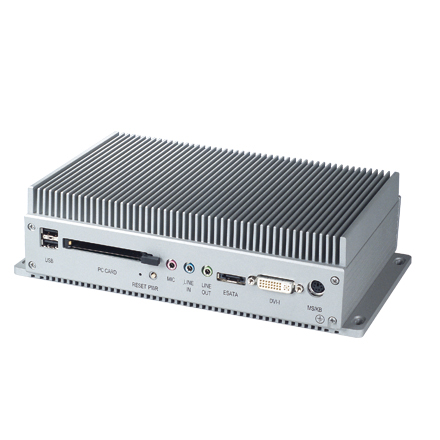

- Display: DVI-I supports DVI and VGA for dual display
- Audio: Mic in, Line in, Line out
- SATA: 1 x internal, 1 x external SATA 1.0
- Watchdog Timer: Programmable 256 levels timer interval, from 1 to 255

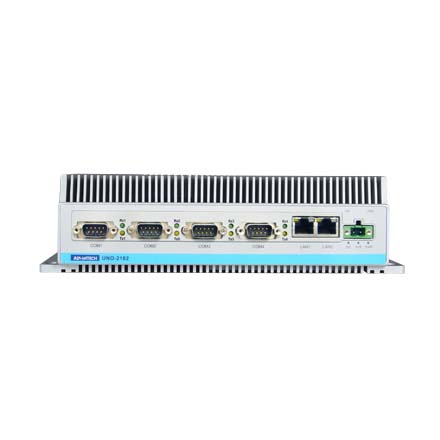

- Serial Ports: 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors
- Serial Port Speed: RS-232: 50 ~ 115.2 kbps
- LAN: 2 x 10/100/1000 Base-T RJ45 ports (supports wake on
- USB Ports: 2 x USB, EHCI, Rev. 2.0 compliant
- Humidity: 95% @ 40° C (non-condensing)
- Operating Temperature: IEC 60068-2-2, 100% CPU/ I/O loading)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
UNO-2172: 45W (Typical)
6.0, Linux, QNX
CE / WES2009 / WES7
System Hardware
UNO-2172: Pentium M 1.6GHz, Celeron M 1.5GHz
UNO-2172: 1GB DDR2 SDRAM built-in
LAN (Active, Status) and Serial (Tx, Rx)
HDD: Build-in one 2.5″ SATA/IDE HDD bracket
sec
I/O Interface
Automatic RS-485 data flow control
RS-422/485: 50 ~ 921.6 kbps (Max.)
LAN and built-in boot ROM in flash BIOS)
Environment
UNO-2182: -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH.
UNO-2172: -20 ~ 50°C (-4 ~ 122°F) @ 5 ~ 85% RH.
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
