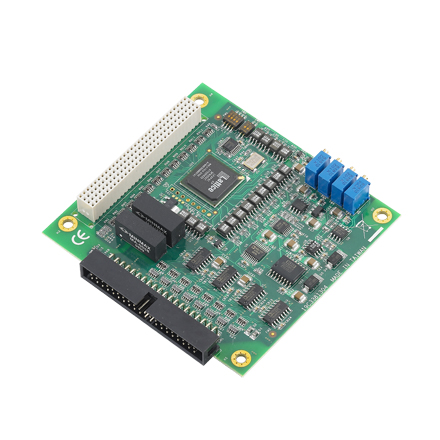

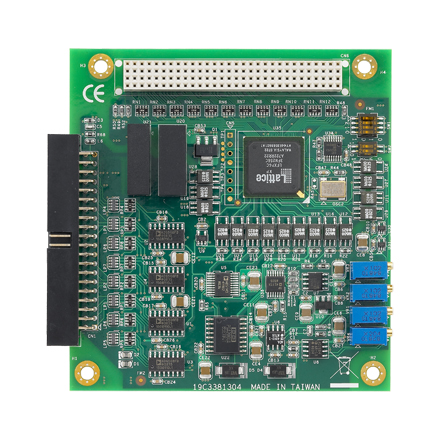

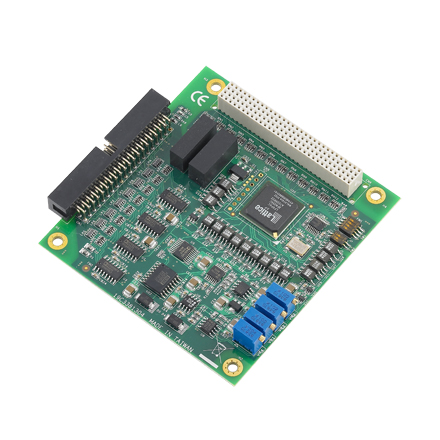

PCM-3813I 100 kS/s, 12-bit, 32-ch Isolated Analog Input PCI-104 Module
Call for Price
By offering 2500 VDC isolation protection and software programmable gain on each analog input channel, PCM-3813I protects computers and connected peripherals from high voltage damage on the input lines. Moreover, PCM-3813I breaks the traditional limitations of analog input data transmission, providing significantly faster speeds than similar modules on the market. PCM-3813I also supports single-ended and differential analog inputs, or a combination of these two, making it flexible for users to adjust the input mode depending on their needs.
Please click the link below to open the PDF datasheet
View Datasheet - Compact size with robust design
- 32 single-ended or 16 differential analog inputs
- Programmable gain for each input channel
- Automatic channel/ gain/ SD scanning
- Onboard ring buffer (1,024 samples)
- Isolation protection (2,500 VDC)
- Analog Input
- Channels: 32 single-ended or 16 differential or combination
- Resolution: 12 bits
- Max. Sampling Rate: 100 kS/s
- Ring Buffer Size: 1,024 samples
- Input Range and Gain List:
- Input Protect: 30 Vp-p
- Input Impedance: 100 MW/10pF (off); 100 MW/100pF (on)
- Sampling Mode: Software polling, onboard programmable pacer, or
- Bus Type: PCI-104
- I/O Connectors: 1 x 40-pin box header
- Dimensions (L x H): 96 x 90 mm (3.8″ x 3.5″)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
- Storage Temperature: -20 ~ 70° C (-4 ~158° F)
Gain: 0.5 1 2 4 8
Unipolar: N/A 0 ~ 10 0 ~ 5 0 ~ 2.5 0 ~ 1.25
Bipolar: ±10 ±5 ±2.5 ±1.25 ±0.625
external TTL trigger
