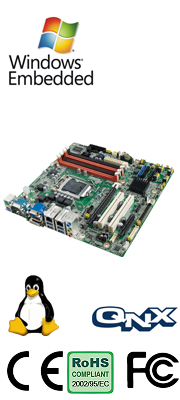

AIMB-582 Intel® Xeon® E3 Core™ i7i5i3 LGA1155 MicroATX with CRTDVIeDPLVDSDP, 6 COM, Dual LAN, DDR3 and SATAIII
Call for Price
Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/eDP/LVDS/DP, 6 COM, Dual LAN, DDR3 and SATAIII
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Xeon®/ Core™ i7/i5/i3 processor with Q77/C216 chipset
- Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
- Supports CRT, DVI, LVDS, DP, eDP (optional) and dual GbE LAN
- Supports Inel vPro, AMT 8.0, PECI 3.0, USB 3.0, Software RAID 0, 1, 5, 10, TPM 1.2 (optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU : Intel Xeon E3-1275v2
- CPU : Intel Xeon E3-1275
- CPU : Intel Xeon E3-1225v2
- CPU : Intel Xeon E3-1225
- CPU : Intel Corei3-2120
- CPU : Intel Pentium G850
- CPU : Intel Core i7-3770
- CPU : Intel Core i7-2600
- CPU : Intel Corei7-3550S
- CPU : Intel Core i3-3220
- CPU : Intel Core i5-2400
- CPU : Intel Celeron G5400
- PCI : 32-bit/33 MHz, 2 slots
- PCIe x4 : (Gen2) 2.0 GB/s per direction, 1 slot
- PCIe x16 : (Gen3) 8 GB/s per direction, 1 slot
- Technology : Dual Channel DDR3 1333/1600 MHz SDRAM
- Max. Capacity : 32 GB
- Socket : 4 x 240-pin DIMM
- Controller : Intel HD Graphics
- VRAM : 1 GB maximum shared memory with 2 GB and above system memory installed
- LVDS : Single channel 24-bit/dual channel 48-bit LVDS
- CRT : Yes, supports max resolution 2048 x 1536 at 60 Hz
- DVI : Yes, supports max. resolution 1920 x 1200 at 60 Hz
- eDP : Yes, with internal pin header, supports max. resolution 1920 x 1200 at 60 Hz
- Display Port : Yes, supports max resolution 2560 x 1600 at 60 Hz
- Triple Display : CRT+eDP (or LVDS)+DP, CRT+eDP (or LVDS)+ DVI
- Dual Display : CRT+eDP (or LVDS), CRT+DVI, eDP (or LVDS)+ DVI
- Interface : 10/100/1000 Mbps
- Controller : GbE LAN1: Intel 82579LM, GbE LAN2: Intel 82583V
- Connector : RJ-45 x 2
- Max Data Transfer Rate : 600 MB/s (SATA 3.0)/ 300 MB/s (SATA 2.0)
- Channel : 2/4
- CRT : 1
- DVI : 1
- Display Port : 1
- Ethernet : 2
- USB : 4 (4 USB 3.0)
- Audio : 2 (Mic-in, Line-out)
- Serial : 1 (RS-232)
- PS/2 : 2 (1 x keyboard and 1 x mouse)
- USB : 8 (USB 2.0 compliant)
- Serial : 5 (4 x RS-232, 1 x RS-232/422/485 to support auto flow control)
- IDE : –
- SATA : 2 x 600 MB/s (SATA 3.0)/4 x 300 MB/s (SATA 2.0)
- LVDS & Inverter : 1 (default)
- Extended Display Port (eDP) : 1 (optional by removing LVDS)
- Parallel : 1
- JTAG : 1
- IrDA : –
- GPIO : 8-bit GPIO
- Output System : reset
- Interval Programmable : 1 ~ 255 sec/min
- Intel Core i7-3770 3.4 GHz, 8 GB DDR3 1600 MHz x 4pcs
- Operating Temperature : 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Dimensions : 244 mm x 244 mm (9.6″ x 9.6″)
Core Number : 4
Max. Speed : 3.5 GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : WG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.4 GHz GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : WG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.2
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : WG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.1 GHz
Integrated Graphic : Yes
L3 Cache : 6 MB
Supports Model : WG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 3.3 GHz GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : WG2/QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 2.9 GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : WG2/QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.4GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : QG2 QG2 QG2 QG2 QG2 QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.4GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : QG2 QG2 QG2 QG2 QG2 QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.0GHz
Integrated Graphic : Yes
L3 Cache : 6 MB
Supports Model : QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 3.3 GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2 4 2
Max. Speed : 3.1 GHz
Integrated Graphic : Yes
L3 Cache : 6MB
Supports Model : QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4 2
Max. Speed : 2.5 GHz
Integrated Graphic : Yes
L3 Cache : 2 MB
Supports Model : QG2
Chipset : Q77/C216
BIOS : AMI EFI 64 Mbit SPI
Expansion Slot
Memory
Graphics
Ethernet
SATA
Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
Power On:
+5 V / 2.69 A
3.3 V / 0.93 A
12 V / 5.3 A
5 Vsb / 0.0 A
-12 V / 0.52 A
Environment
Physical Characteristics
