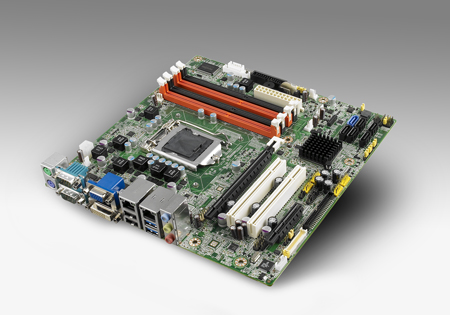

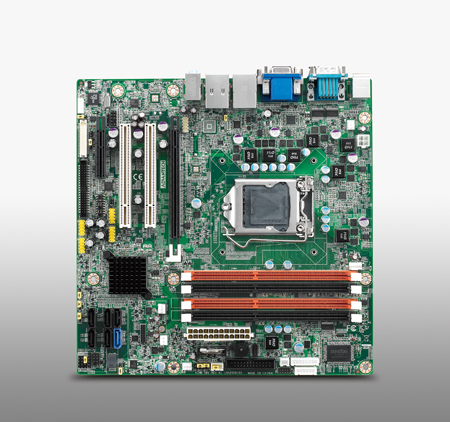

AIMB-581 Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/LVDS, 6 COM, Dual LAN, SATAIII
Call for Price
Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/LVDS, 6 COM, Dual LAN, DDR3 and SATAIII.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Xeon®/Core™ i7/i5/i3 processor with Q67/C206 chipset
- Four DIMM sockets support up to 16 GB DDR3 1066/1333 MHz SDRAM
- Supports dual display of CRT, DVI, LVDS (optional) and dual GbE LAN
- Supports Inel vPro, AMT 7.0, PECI 3.0, USB 3.0, Software RAID 0, 1, 5, 10, TPM 1.2 (optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU : Intel Xeon E3-1275
- CPU : Intel Xeon E3-1225
- CPU : Intel Core i3-2120
- CPU : Intel Pentium G850
- CPU : Intel Core i7-2600
- CPU : Intel Core i5-2400
- CPU : Intel Core i3-2120
- CPU : Intel Celeron G540
- PCI : 32-bit/33 MHz, 2 slots
- PCIe x4 : (Gen2) 2.0 GB/s per direction, 1 slot
- PCIe x16 : (Gen2) 8 GB/s per direction, 1 slot
- Technology : Dual Channel DDR3 1066/1333 MHz SDRAM
- Max. Capacity : 16 GB
- Socket : 4 x 240-pin DIMM
- Controller : Intel HD Graphics
- VRAM : 1 GB maximum shared memory with 2 GB and above system memory installed
- LVDS : Single channel 24-bit/dual channel 48-bit LVDS (optional)
- 1st DVI : Yes, supports max. resolution 1920 x 1200
- 2nd DVI : Yes, with internal pin header, supports max. resolution 1920 x 1200
- Dual Display : CRT+LVDS, CRT+DVI, LVDS+DVI
- Interface : 10/100/1000 Mbps
- Controller : GbE LAN1: Intel 82579LM, GbE LAN2: Intel 82583V
- Connector : RJ-45 x 2
- Max Data Transfer Rate : 600 MB/s (SATA 3.0)/ 300 MB/s (SATA 2.0)
- Channel : 2/4
- CRT : 1
- DVI : 1
- Ethernet : 2
- USB : 4 (2 USB 2.0, 2 USB 3.0)
- Audio : 2 (Mic-in, Line-out)
- Serial : 2 (RS-232)
- PS/2 : 2 (1 x keyboard and 1 x mouse)
- USB : 8 (USB 2.0 compliant)
- Serial : 4 (3 x RS-232, 1 x RS-232/422/485 to support auto flow control)
- IDE : –
- SATA : 2 x 600 MB/s (SATA 3.0)/4 x 300 MB/s (SATA 2.0)
- LVDS & Inverter : 1
- Parallel : 1
- IrDA : –
- GPIO : 8-bit GPIO
- Output System : reset
- Interval Programmable : 1 ~ 255 sec/min
- Intel Core i7-2600 3.4GHz, 2GB DDR3 1333 MHz x 4pcs
- Operating Temperature : 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Humidity: 10-95% @ 40° C, non-condensing
- Non-Operating Temperature : -20 ~ 70° C (-4 ~ 158° F)
- Humidity: 10-95% @ 40° C, non-condensing
- Dimensions : 244 mm x 244 mm (9.6″ x 9.6″)
Core Number : 4
Max. Speed : 3.4 GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : WG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.1 GHz
Integrated Graphic : Yes
L3 Cache : 6 MB
Supports Model : WG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 3.3 GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : WG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 2.9 GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : WG2/QG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.4 GHz 3.1 GHz 3.3 GHz 2.5 GHz
Integrated Graphic : Yes
L3 Cache : 8 MB
Supports Model : QG2 QG2 QG2 QG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 4
Max. Speed : 3.1 GHz
Integrated Graphic : Yes
L3 Cache : 6 MB
Supports Model : QG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 3.3 GHz
Integrated Graphic : Yes
L3 Cache : 3 MB
Supports Model : QG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Core Number : 2
Max. Speed : 2.5 GHz
Integrated Graphic : Yes
L3 Cache : 2 MB
Supports Model : QG2
Chipset : Q67/C206
BIOS : AMI EFI 64 Mbit SPI
Expansion Slot
Memory
Graphics
Ethernet
SATA

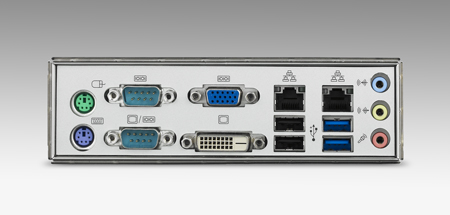

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
Power On :
5V / 3.52 A
3.3V / 1.07 A
12V /3.79 A
5Vsb /0.32 A
-12V / 0 A
Environment
Note: The spec above is based on board test only.
Physical Characteristics
