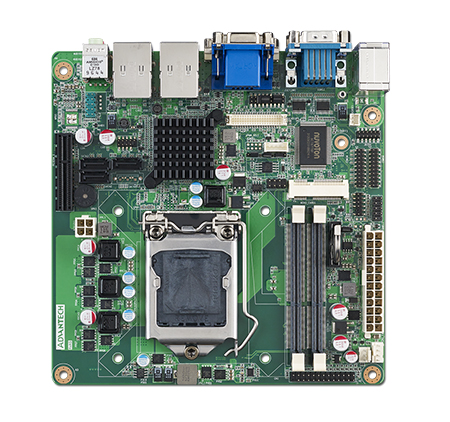

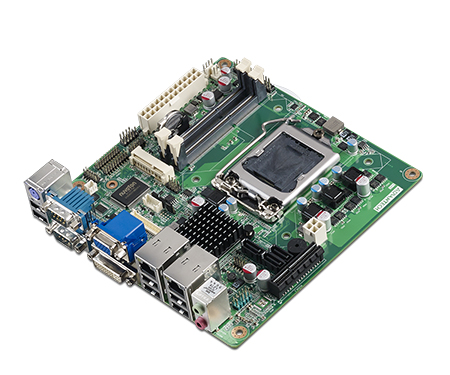

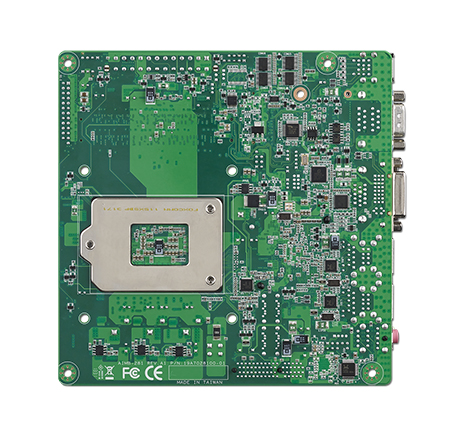

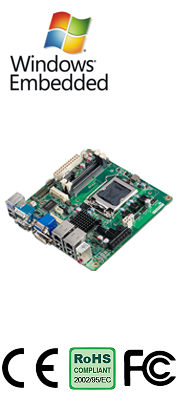

AIMB-281 Intel® Core™ i7/i5/i3/Celeron LGA1155 Mini-ITX with CRT/DVI/LVDS, 6 COM, Dual LAN, PCIe x4
Call for Price
Intel® Core™ i7/i5/i3/Celeron LGA1155 Mini-ITX with CRT/DVI/LVDS, 6 COM, Dual LAN, PCIe x4
Please click the link below to open the PDF datasheet
View Datasheet - Support Intel Xeon E3/ Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA) with Intel H61 chipset
- Supports dual display for VGA, DVI, LVDS
- Support PCIe x4 (Gen 2) and mini PCIe
- Support 8 USB, 6 COMs, 3 SATA II, 8 bit GPIO
- Support embedded software APIs and Utilityies
- Two 204-pin SO-DIMM up to 8GB DDR3 1066/1333/1600 MHz SDRAM
- Processor System
- CPU: Core i7-3770
- Core Number: 4
- Max Speed: 3.9 GHz
- L3 Cache: 8 MB
- Chipset: H61
- BIOS: AMI EFI 32 Mbit SPI
- CPU: Core i5-3550S
- Core Number: 4
- Max Speed: 3.7 GHz
- L3 Cache: 3 MB
- Chipset: H61
- BIOS: AMI EFI 32 Mbit SPI
- CPU: Core i3-3220
- Core Number: 2
- Max Speed: 3.3 GHz
- L3 Cache: 3 MB
- Chipset: H61
- BIOS: AMI EFI 32 Mbit SPI
- CPU: Pentium G2120
- Core Number: 2
- Max Speed: 3.1 GHz
- L3 Cache: 3 MB
- Chipset: H61
- BIOS: AMI EFI 32 Mbit SPI
- CPU: Celeron G1620
- Core Number: 2
- Max Speed: 2.7 GHz
- L3 Cache: 2 MB
- Chipset: H61
- BIOS: AMI EFI 32 Mbit SPI
- PCI: –
- Mini-PCIe: 1, F/S support mSATA
- PCIe x4 (Gen2): 8 GB/s per direction, 1 slot
- Technology: Dual Channel DDR3 1066/1333/1600 MHz SDRAM
- Max. Capacity: 8 GB/4 GB per SO-DIMM
- Socket: 2x 204 PIN DDR3 SO-DIMM (Non-ECC)
- Controller: Intel HD P3000/ 4000 graphics engine supports up to DirectX 11, Shader Model 4.1 and OpenGL 3.0
- VRAM: Share memory up to 256MB
- CRT: Yes, supports max. resolution 2048 x 1536
- LVDS: Support Dual channel 48 bit and up to 1920 x 1200
- DVI: Yes, supports max resolution 1920 x 1200
- Dual Display: CRT+LVDS, CRT+DVI, DVI+LVDS
- Interface: 10/100/1000 Mbps
- Controller: 2 x RTL8111E
- Connector: RJ-45 x 2
- Max Data Transfer: Rate 300 MB/s (SATA 2.0)
- Channel: 3
- VGA: 1
- DVI: 1
- Ethernet: 2
- USB: 6 (USB2.0)
- Audio: 2 (Mic-In, Line-out)
- Serial: 2 (1 x RS232, 1 x RS232/422/485)
- PS/2: 1
- USB: 2 (USB 2.0)
- LVDS/ inverter: 1/1
- Serial: 4 (RS-232)
- IDE: –
- SATA: 3 (SATA 2.0)
- Mini-PCIe: 1
- Parallel: 1
- IrDA: –
- GPIO: 8-bit
- Output System: reset
- Interval: Programmable 1 ~ 255 sec/min
- Power On: Intel Core i7-2700K 3.5GHz, 4GB DDR3 1333MHz SDRAM:
- Operating: Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating: Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Expansion Slot
Memory
Graphics
Ethernet
SATA

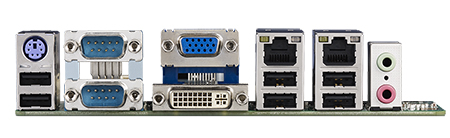

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
+12V +5V +3.3V
13.35A 3.74A 2.19A
Environment
Physical Characteristics
