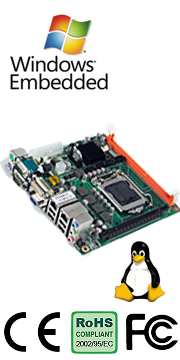

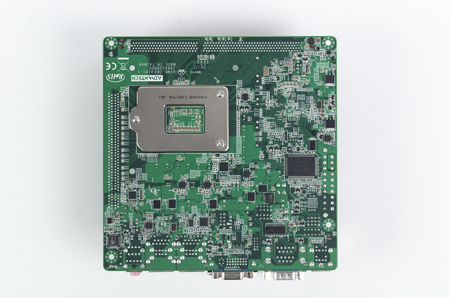

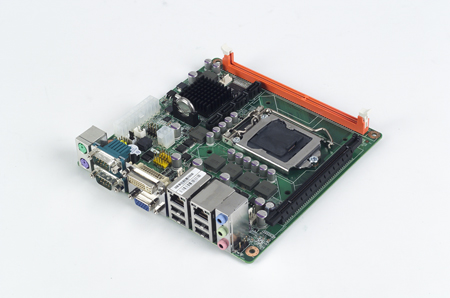

AIMB-280 Intel® Core™ i7/i5/i3/Pentium® LGA1156 Mini-ITX with CRT/DVI, 2 COM, Dual LAN, PCIe x16
Call for Price
AIMB-280 supports Intel® Core™ i7/i5/i3/Pentium® processor with Q57 chipset. One DIMM socket supports up to 4 GB DDR3 800/1066/1333 MHz SDRAM.Supports dual display, VGA and DVI, and dual GbE LAN.Supports 2 COM, 8 USB, and 4 SATA ports.Supports embedded software APIs and Utilities.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Core™ i7/i5/i3/Pentium® processor with Q57 chipset
- One DIMM socket supports up to 4 GB DDR3 800/1066/1333 MHz SDRAM
- Supports dual display, VGA and DVI, and dual GbE LAN
- Supports 2 COM, 8 USB, and 4 SATA ports
- Supports embedded software APIs and Utilities
- Processor System(all)
- Chipset: Q57
- BIOS: AMI 64 Mbit SPI
- Max. Speed: 4
- Max.speed: 2.93 GHz
- Integrated Graphics: No
- L3 Cache: 8 MB
- Max. Speed: 4
- Max.speed:2.66 GHz
- Integrated Graphics: No
- L3 Cache: 8 MB
- Integrated Graphics: Yes
- L3 Cache: 4 MB
- Integrated Graphics: Yes
- L3 Cache: 4 MB
- Integrated Graphics: Yes
- L3 Cache: 3 MB
- PCI: –
- Mini-PCI: –
- PCIe x16: (Gen2) 8 GB/s per direction, 1 slot
- Technology: DDR3 800/1066/1333 MHz SDRAM
- Max. Capacity: 4 GB
- Socket: 1 x 240-pin DIMM
- Controller: Intel HD Graphics
- VRAM: 1 GB maximum shared memory with 2 GB and above system memory installed
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Intel 82578DM, LAN2: Intel 82583V
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 4
- VGA: 1
- DVI: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 2 (RS-232)
- PS/2: 2 (1 x keyboard and 1 x mouse)
- USB: 4 (USB 2.0 compliant)
- Serial
- IDE –
- SATA: 4
- CompactFlash: –
- Parallel: –
- IrDA: –
- GPIO: –
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On
- Operating Temperature:0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating Temperature:-20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Processor System(Core i7)
Processor System(Core i5 700)
Processor System(Core i5 600) Max. Speed: 2 Max.speed: 3.3GHz
Processor System(Core i3) Max. Speed: 2 Max.speed:3.3GHz
Processor System(Pentium) Max. Speed: 2 Max.speed: 2.8GHz
Expansion Slot
Memory
Graphics
Ethernet
SATA

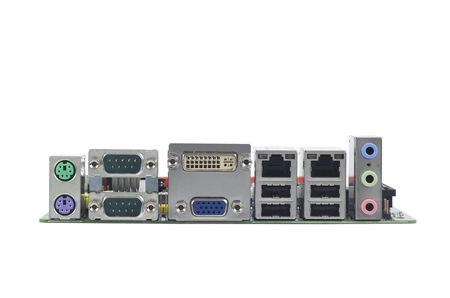

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
5 V/1.41A 3.3V/0.93A 12V/8.62A 5Vsb/0.08A -12V/0.11A
Environment
Physical Characteristic
