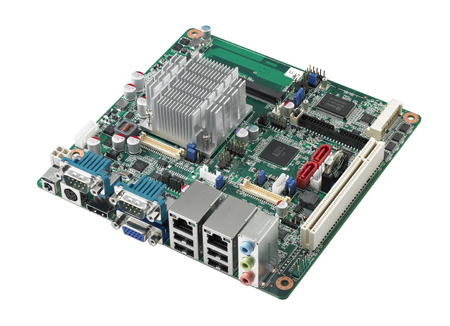

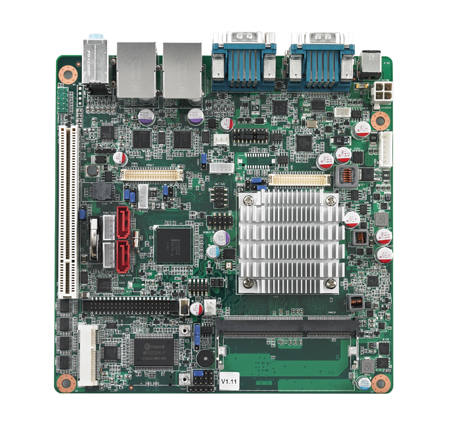

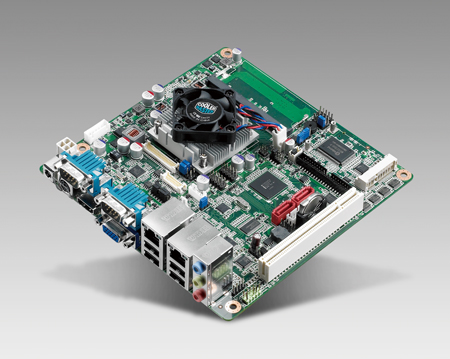

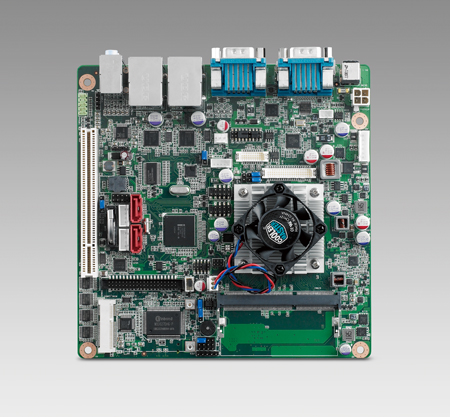

AIMB-214 Intel® Atom™ N2600/D2550 Mini-ITX with CRT/HDMI/2 LVDS, 6 COM, and Dual LAN
Call for Price
AIMB-214 Intel® Atom™ N2600D2550 Mini-ITX with CRTHDMI2LVDS, 6COM, and Dual LAN ports
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Atom™ processor N2600, and D2550 dual core
- One 204-pin SO-DIMM up to 4 GB DDR3 1066 MHz SDRAM
- Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 6 USB, and CFast
- Lower total cost of ownership with DC12V support, and supports 24/48-bit LVDS
- Onboard TPM 1.2 support
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU (32nm): Intel Atom N2600:
- CPU (32nm): Intel Atom D2550:
- PCI : 32-bit/33 MHz, 1 slot
- Mini-PCIe : 1, F/S support mSATA
- PCIe : –
- Technology : Single channel DDR3 1066 MHz SDRAM
- Max. Capacity : 4 GB
- Socket : 1 x 204 pin SODIMM (Non-ECC)
- Controller : Embedded Gen3.5+ GFX Core, 400/640 MHz render clock frequency for N2600/D2550
- VRAM : Shared system memory up to 224 MB SDRAM
- VGA : Support up to SXGA 1920 x 1200 @ 60 MHz
- LVDS : LVDS1 Support 24-bit dual channel : Max. resolution up to 2560 x 1600 (D2550); 1600 x 1200 (N2600). co-lay eDP port (optional)
- HDMI : Support up to 1920 x 1200 @ 60 MHz
- Dual Display : VGA+HDMI, VGA+LVDS, VGA+eDP (optional), Support extended mode and clone mode
- Interface : 10/100/1000 Mbps
- Controller : GbE LAN1: Intel 82574L/82583V co-lay
- Connector : RJ-45 x 2
- Max Data Transfer : Rate 300 MB/s
- Channel : 2
- Mode : None
- Channel : None
- SSD CFast CompactFlash : Support CFast Type I/II

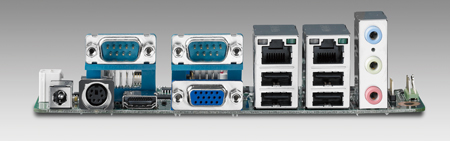

- CRT : 1
- HDMI : 1
- Ethernet : 2
- USB : 4 (USB 2.0 compliant)
- Audio : 3 (Mic-in, Line-out, Line-in)
- Serial : 2 (1 of RS-232,1 of RS-232/422/485)
- KB/MS : 1
- DC jack : 1 (2.5 mm)
- LVDS & Inverter : 2
- eDP : 1 (optional, by removing LVDS1)
- USB : 2 (USB 2.0 compliant)
- Serial : 4 (RS-232), only COM6 supply 5V/12V
- IDE : None
- SATA : 2
- SATA PWR connector : 2
- CFast : 1
- Parallel : None
- DIO : 8-bit GPIO
- Output : System reset
- Interval Programmable : 1 ~ 255 sec/min
- Power type : Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2×2) power connector; Support AT/ATX mode
- Typical power consumption : Windows IDOL: 17.8 W (Intel N2600 1.6 GHz processor/DDR3 1333 MHz 4 GB)
- Operating
- Non-Operating
- Dimensions : 170 mm x 170 mm (6.69″ x 6.69″)
Max. Speed : 1.6 GHz (Dual core)
L2 Cache : 512 KB
Chipset : NM10
BIOS : AMI 16Mbit SPI
Max. Speed : 1.86GHz(Dual core)
L2 Cache : 512 KB*2
Chipset : NM10
BIOS AMI 16Mbit SPI
Expansion Slot
Memory
Graphics
LVDS2 Support 24-bit single channel up to 1400 x 800 on D2550; 1366 x 768 on N2600
Ethernet
GbE LAN2: Intel 82583V
SATA
EIDE
Rear:I/O
Internal Connector
Watchdog Timer
Power
Environment
Temperature : 0 ~ 60° C (32 ~ 140° F)
Temperature : -40 ~ 85° C (-40 ~ 185° F)
Physical Characteristics
