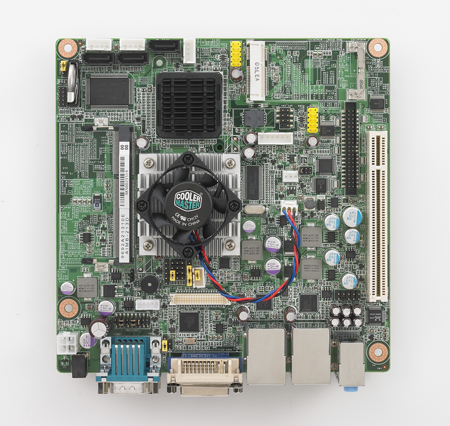

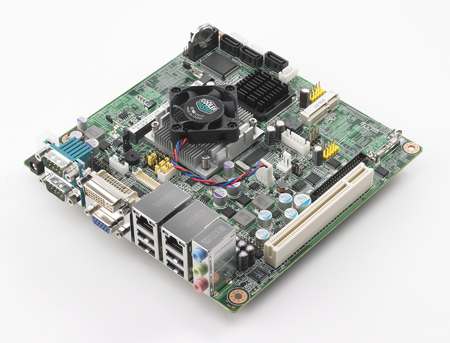

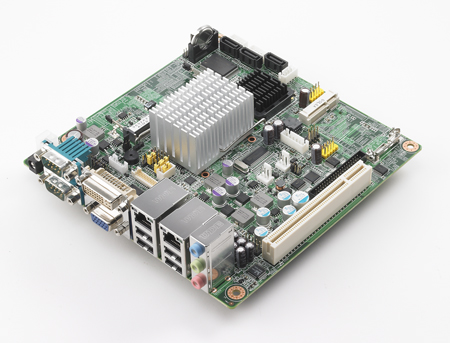

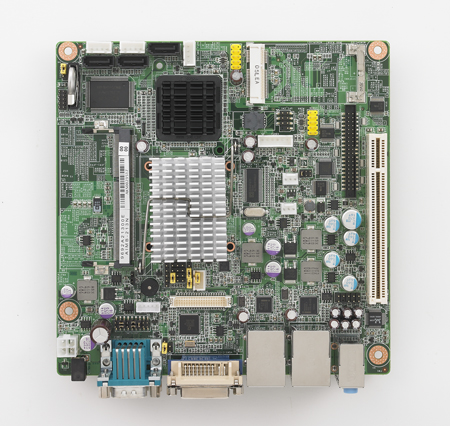

AIMB-213 Mini-ITX with VGA/DVI/LVDS, 6 COM, and Dual LAN
Call for Price
AIMB-213 Mini-ITX supports Intel® Atom™ processor N455 and D525 dual core.Two 204-pin SODIMM up to 2 GB/4 GB DDR3 800 MHz SDRAM.Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF.Lower total cost of ownership with DC12V support and support 18/24-bit LVDS. Supports embedded software APIs and Utilities.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Atom™ processor N455 and D525 dual core
- Two 204-pin SODIMM up to 2 GB/4 GB DDR3 800 MHz SDRAM
- Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF
- Lower total cost of ownership with DC12V support and support 18/24-bit LVDS
- Onboard TPM 1.2 support (optional)
- Supports embedded software APIs and Utilities
- Processor System (All)
- Chipset: ICH8M
- BIOS: AMI 16 Mbit SPI
- Max. Speed: 1.66 GHz (single core)
- L2 Cache: 512 KB
- Max. Speed: 1.8 GHz (dual core)
- L2 Cache: 1MB
- PCI: 32-bit/33 MHz, 1 slot
- Mini-PCIe: 1
- PCIe –
- Technology: Single channel DDR3 800 MHz SDRAM
- Max. Capacity: 2 GB/4 GB
- Socket: 2 x 204 pin SODIMM
- Controller: Embedded Gen3.5+ GFX Core, 200/400-MHz render clock frequency for N455/D525
- VRAM: Shared system memory up to 224 MB SDRAM
- VGA: Supports up to SXGA 1400 x 1050 @ 60Hz for Atom N455, up to 2048 x 1536 for Atom D525
- LVDS: Supports 18/24-bit single channel and up to WXGA 1366 x 768 (Chrontel 7036)
- DVI: Supports up to 1366 x 768
- Dual Display: VGA + DVI, VGA + LVDS, support extended mode and clone mode; DVI + LVDS, supports clone mode
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Intel 82567V; GbE LAN2: Intel 82583V
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 3
- Mode: None
- Channel: None
- CompactFlash Supports CompactFlash Type I/II
- VGA: 1
- DVI: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 2 (1 of RS-232,1 of RS-232/422/485)
- Parallel: –
- DC jack: 1 (2.5 mm)
- LVDS & Inverter: 1
- USB: 4 (USB 2.0 compliant)
- Seria:l 4 (RS-232), only COM6 supply 5V/12V
- IDE: None
- SATA: 3
- SATA PWR connector: 3
- CompactFlash: 1
- Parallel: None
- DIO: 8-bit GPIO
- Output: System reset
- Interval: Programmable 1 ~ 255 sec/min
- Power Type: Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2×2) power connector; Supports AT/ATX mode
- Power Consumption: 12 V @ 3.4 A (Intel D510 1.66 GHz processor/DDR2 800 MHz 2 GB, SATA HDD x1)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Processor System (Intel Atom N455)
Processor System (Intel Atom D525)
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD

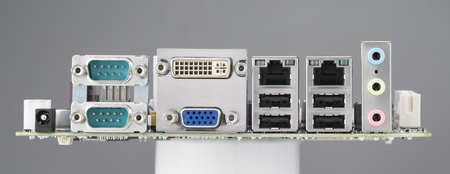

Rear I/O
Internal Connector
Watchdog Timer
Power
12 V @ 2.73 A (Intel N455 1.66 GHz processor/DDR2 800 MHz 2 GB, SATA HDD x1)
Environment
Physical Characteristics
