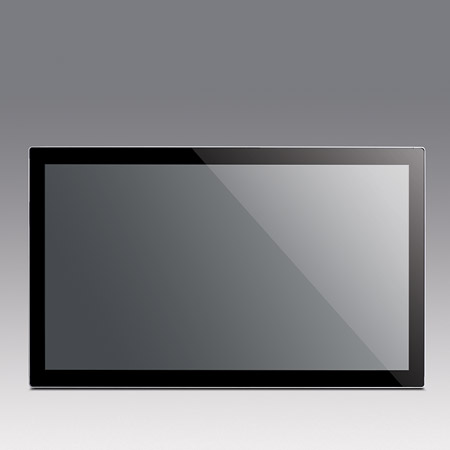

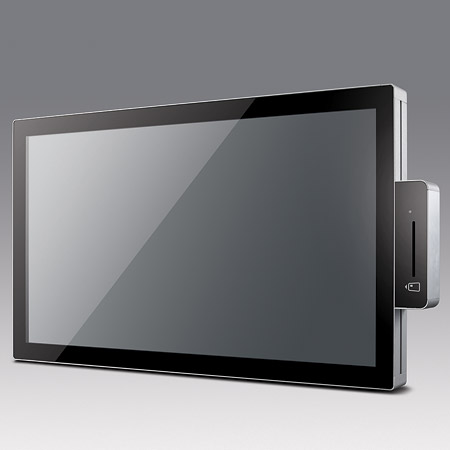

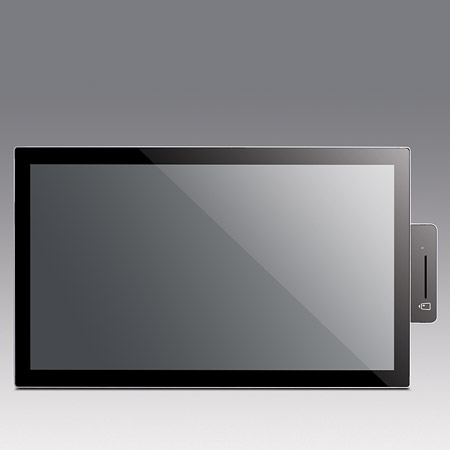

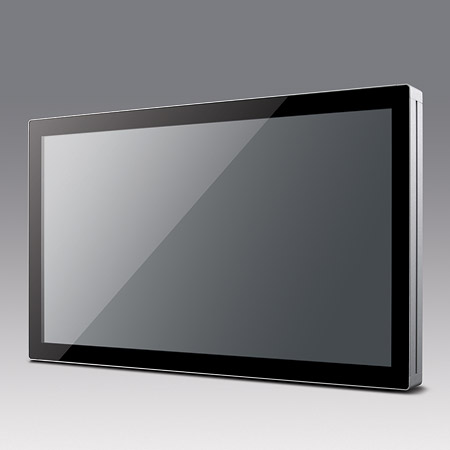

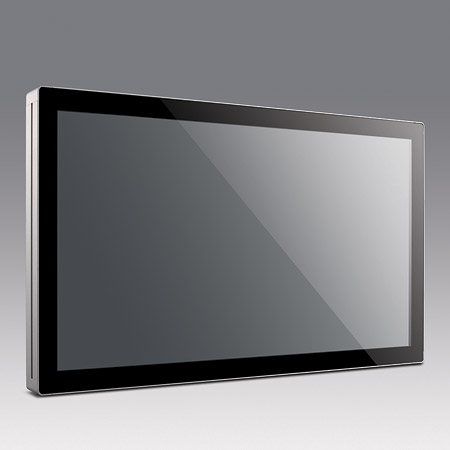

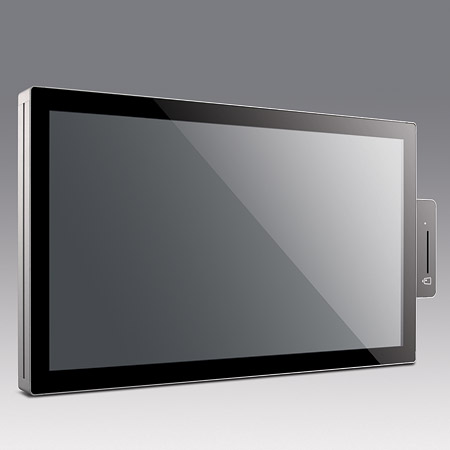

UTC-515A 15.6″ Ubiquitous Touch Computer
£1,044.00 excl. vat
UTC-515A features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and promotional usage in different application areas. The systems deliver updated information with well-designed interactive interfaces, ensuring relevant content and targeted promotions.UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Low Power & Fanless design
- Built-in AMD® G- Series T40E processor
- Providing Natural Viewing Experience with 16:9 15.6″ Display
- Front panel complies with IP65 protection standard
- All in one aluminum extrusion design
- Landscape & Portrait screen mode support different applications
- VESA 100 mm standard mounting holes for varied mounting demands

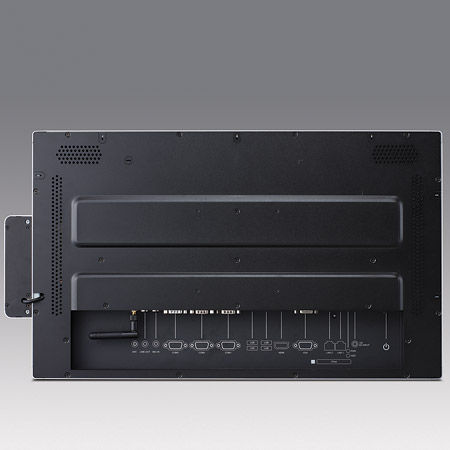

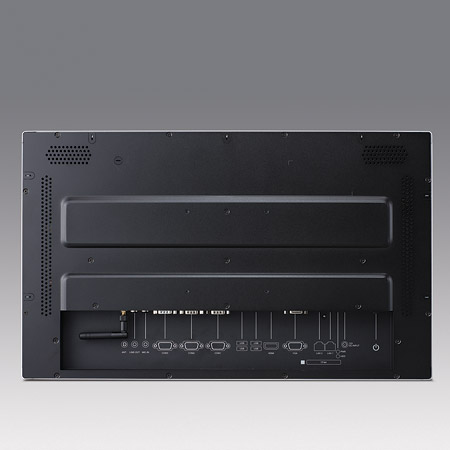

- Rear side with Rich IO for multiple field usage
- Attachable design for panel & peripherals to extend function and applications
- Processor System
- CPU: AMD® G-Series T40E Dual-core 1.0 GHZ (UTC-515A)
- Chipset: T40E + A50M
- L2 Cache: 512 KB
- Memory: 1 x SO-DIMM DDR3 1066 MHz up to 4 GB
- SSD: Support 1 x CFast
- HDD: 1 x 2.5 internal SATA HDD bay
- Network (LAN): 2 x Gigabit Ethernet ports (Supports Wake on LAN)
- I/O Ports:
- Stereo Speaker: 1 W x 2
- Bus expansion: Full-size MiniPCIe/mSATA
- Mounting: VESA 100 x 100 mm
- Dimensions (W x H x D): 389.81 x 240.12 x 45.20 (mm)
- Weight: 4.85 kg (10.67 Ib)
- Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
- Relative Humidity: 10 ~ 95% @ 40° C non-condensing
- Vibration: 0.5G
- Shock: 5 G peak acceleration (11 msec. duration)
- EMC/ Safety: CE, FCC, UL, CCC CB,BSMI
- Front Panel Protection: IP65/ NEMA4 Compliant
- Input Rating: 12 V/5 A (60 W ITE Adapter)
- Power consumption: Typical 32W
- Size/Type: 15.6″ TFT LCD with LED backlight
- Max.Resolution: 1366 x 768
- Max. Color: 16.7M
- Pixel Pitch (um): 252 x 252
- Brightness (cd/m2): 400
- View Angle: 170°/160°
- Type: Projected Capacitive. Analog Resistive 5-wires / Glass Panel
- Light Transmission: 90% ± 2% / 80% ± 5% / 90%
- Controller: USB Interface / USB Interface / –
3 x RS-232 COM (RS-422/485)*
4 x USB 2.0
2 x Gigabit Ethernet (RJ-45)
1 x VGA & HDMI
Audio Line-out x 1, Mic-in x 1
OS Support Windows XP/ XPE/ Embedded
Windows 7/Embedded Windows 8 Embedded Windows 7 32bit
Environmental Specifications
Power Supply
Max. 40W
LCD Display
Touch Screen Option (PE/RE/GE)
