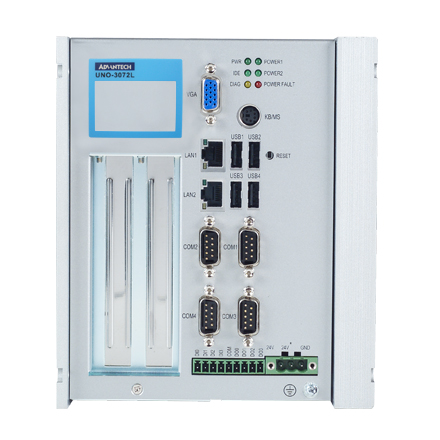

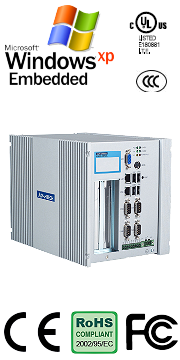

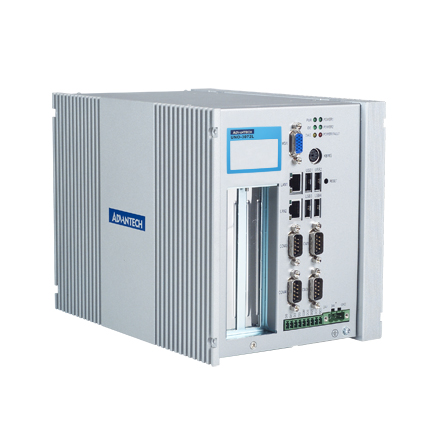

UNO-3072L Intel® Celeron® M UNO with 2 x PCI Slots
Call for Price
Advantech’s UNO-3072L series is high-performance Intel® Celeron® M grade, embedded automation computer with two PCI expansion slots. UNO-3072L features a rugged and field-proven design offering dual power inputs. Different from general industrial PCs, UNO-3072L is more compact and reliable. They are open platforms which can fulfill any demanding requirement from the industrial field, and it is an ideal solution for industrial automation and control. UNO-3072L provides embedded operating system with a pre-configured image that has optimized onboard device drivers, and support Windows XP Embedded to fulfill the toughest requirements for complete functionality and high reliability.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Celeron® M processor
- Onboard 512 KB battery-backup SRAM
- Two RS-232 & two RS-232/422/485 ports with RS-485 automatic flow control
- Two 10/100Base-T RJ-45 ports and Four USB 2.0 ports
- Two PCI-bus expansion slots for versatile applications
- Industrial proven design; anti-shock up to 50 G, anti-vibration up to 2 G
- 4-ch isolated DI, 4-ch isolated DO with timer, counter and interrupt handling
- Supports dual power inputs
- Windows® 2000/XP and Embedded Linux support
- Windows XP (SP2) Embedded Ready Platforms with write protection (EWF)
- Onboard system & I/O LED indicators
- Support Boot From LAN function
- Fanless and no internal cabling design
- General
- Certifications CE, FCC class A, UL, CCC
- Dimensions (W x D x H) 140 x 237 x 179 mm
- Enclosure Aluminum
- Mounting (Option) Wall/Panel/Stand
- Power Consumption 24 W (typical, no PCI cards)
- Power Input 9 ~ 36 VDC (e.g. +24 V @ 2 A) (Max. 5A),
- Weight (Net) 4.2 kg/6 kg (UNO-3072L-C11E/UNO-3072L-C22E)
- OS Support Windows XP embedded, Windows 2000/XP, WinCE 5.0, Linux
- CPU: Celeron M 1.0/1.5 GHz
- Memory: 512 MB/1 GB DDR SDRAM
- Expansion Slots: 2 x PCI V 2.2
- Indicators: LEDs for power, power input 1, power input 2, power fault, IDE, diagnosis, Programmable buzzer
- Keyboard/Mouse: 1 x PS/2
- PCI Slot Power: 12 V @ 2.5 A, -12 V @ 0.8 A, +5 V @ 4 A,
- SSD: 1 x internal type I/II CompactFlash® slot
- HDD: Built-in HDD bracket for installation of one standard 2.5″ HDD
- VGA: DB15 VGA connector, support to CRT mode:
- Watchdog Timer: Programmable
- Clock: Battery-backup RTC for time and date
- LAN: 2 x 10/100Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)
- Serial Ports: 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors
- Serial Port Speed: RS-232: 50 bps ~ 115.2 kbps
- USB Ports: 4 x USB, USB EHCI, Rev. 2.0 compliant
- Digital Inputs (4-ch. wet contact DI0 ~ DI3):
- Digital Outputs (4 ch. DO0 ~ DO3):
- Counters/Timers (2 x 16-bit):
- Humidity: 95% @ 40° C (non-condensing)
- Operating Temperature (with CF card): -20 ~ 55° C (UNO-3072L-C22E)
- Shock Protection: IEC 68 2-27
- Vibration Protection: IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz
(5.5″ x 9.3″ x 7.0″, for UNO-3072L-C11E)
153 x 237 x 179 mm
(6″ x 9.3″ x 7.0″, for UNO-3072L-C22E)
AT. (16 ~ 36 VDC for 12 V PCI boards)
System Hardware
(Note: The heat dissipation in the PCI cards may affect thermal performance)
+3.3 V @ 3 A
Storage
1600 x 1200 @ 85 Hz
Communications
Automatic RS-485 data flow control
RS-422/485: 50 bps ~ 921.6 kbps (Max.)
– 2,000 VDC isolation
– 50 ~ 70 VDC over-voltage protection
– ±50 VDC input range and 10 kHz speed
– Interrupt handling speed: 10 kHz
– 2,000 VDC isolation and 200 mA max/channel sink current
– Keep output status after system hot reset
– 0 ~ 40 VDC output range and 10 kHz speed
– Counter source: DI1 & DI3, Pulse output: DO2 & DO3
– Can be cascaded as one 32-bit counter/timer
– Down counting, preset counting value
– Timer time base: 100 kHz, 10 kHz, 1 kHz, 100 Hz
Environment
-20 ~ 60° C (UNO-3072L-C11E)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11ms
HDD: 1 Grms @ 5 ~ 500 Hz
