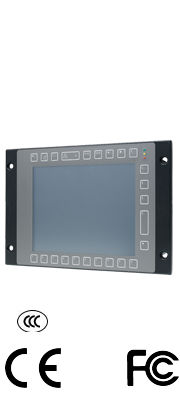

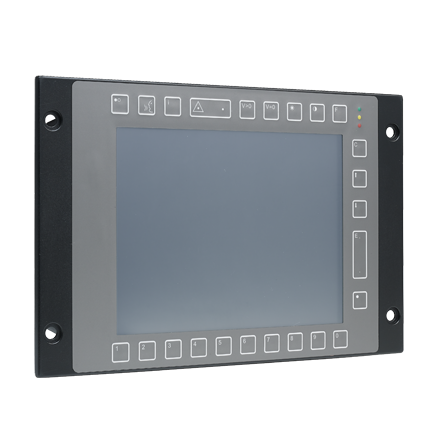

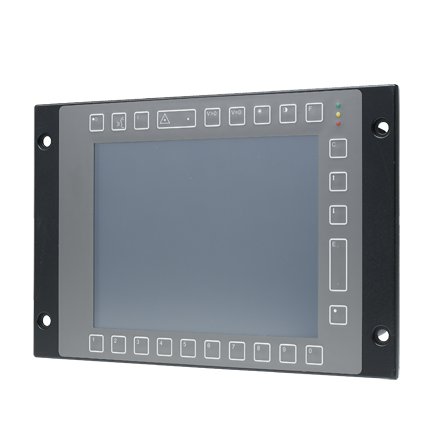

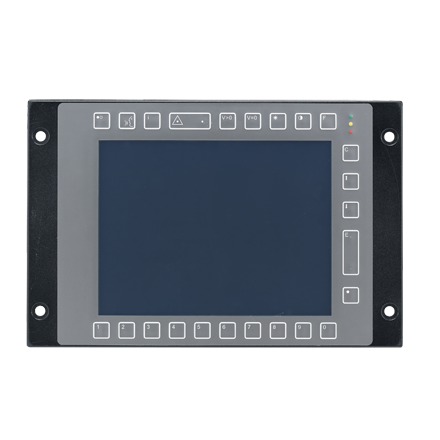

TPC-8100TR 10.4″ EN50155 Railway Panel Computer

£1,950.00 excl. vat

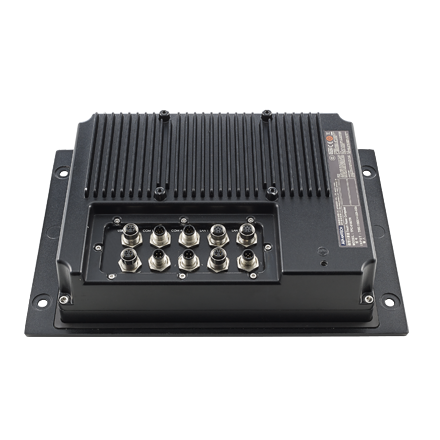

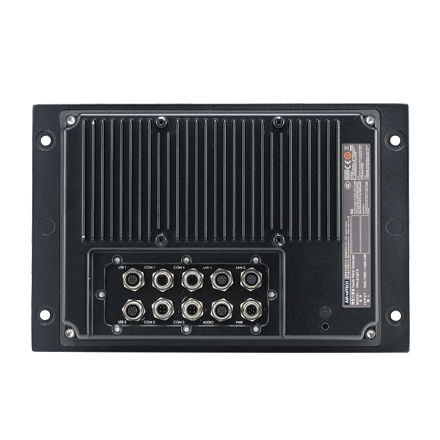

Advantech HMI TPC-8100TR for transportation is used to keep the train driver informed about status regarding the train functionalities. Its design deployed in environments with an extended temperature range ( ““30 to 70°C) and compliance with the EMC, shock and vibration test requirements of European standard EN 50155 for railway applications. The TPC-8100TR 10,4″ TFT display is with ruggedized touch panel and optical bonding for weather-prove. All round IP65 and M12 connector is a perfect choice for Human Machine Interfaces (HMI) in railway environments. Internal board are all with Conformal Coating protection for anti-moist. TPC-8100TR include comprehensive feature set with two Ethernets, serial interfaces, USB ports, build-in CFast device. Railway power module design support 10 ms interruption (EN50155, S2) , EMI EN55022 CLASS A filter, Over/Short current protection for its railway application.

Out of stock

SKU: TPC-8100TR Category:
