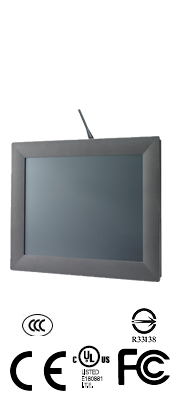

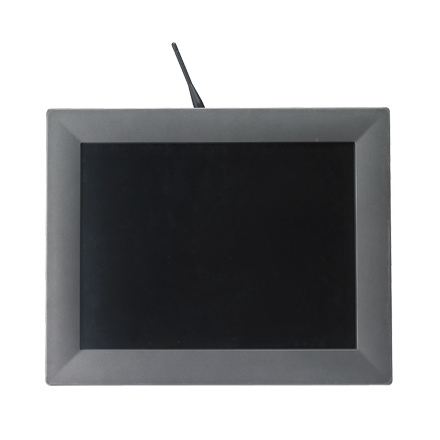

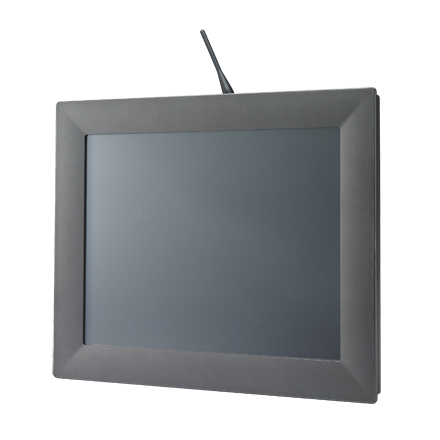

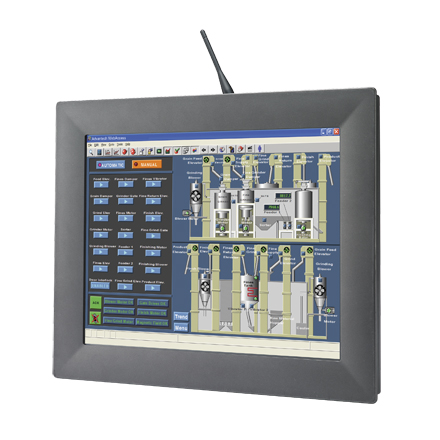

TPC-1571H 15″ XGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

£0.00 excl. vat

The TPC-1571H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5″ SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM. The TPC-1571HCA comes complete with a CANopen card already installed. This CIA certified control ready platform assures total interoperability between all CANopen devices. The value added control ready platforms have total support for IEC-61131-3 Softlogic Control software as well as HMI/SCADA software and Advantech WebOP design and WebAccess control and monitoring software.

Out of stock

SKU: TPC-1571H Category:
