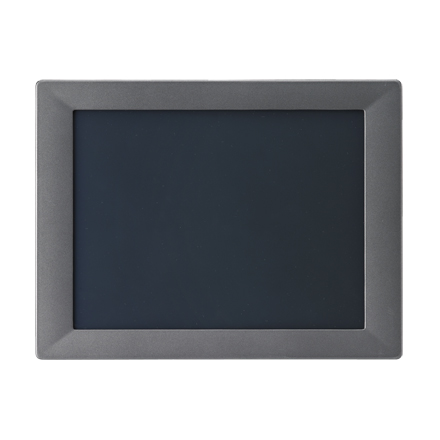

TPC-1271H 12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

TPC-1271H 12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer - Image 3

TPC-1271H 12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer - Image 4

TPC-1271H 12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer - Image 5

TPC-1271H 12.1″ SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

Name: TPC-1271H 12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer
SKU: TPC-1271H
Availability: OutOfStock

£0.00 excl. vat

The TPC-1271H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5″ SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM. The TPC-1271HCA comes complete with a CANopen card already installed. This CIA certified control ready platform assures total interoperability between all CANopen devices. The value added control ready platforms have total support for IEC-61131-3 Softlogic Control software as well as HMI/SCADA software and Advantech WebOP design and WebAccess control and monitoring software.

Out of stock

SKU: TPC-1271H Category: Touch Panel Computers

Please click the link below to open the PDF datasheet

View Datasheet

Intel® Atom™ D525 1.8 GHz processor
12.1″ SVGA TFT LED LCD
Compact design with die-cast Al alloy front bezel
Fanless cooling system
IP65 approved front panel
PCIe and Mini PCIe expansion support
Supports 4 GB DDR3 SDRAM
Integrated 16-channel Digital I/O with isolation
1 MB Battery-backed SRAM
Serial port isolation protection
Automatic data flow control RS-485
Supports external antenna for wireless communication
Supports field-bus communication for PLC connectivity

General

BIOS: AMI 8Mbit
Certification: BSMI, CCC, CE, FCC Class A, UL
Cooling System: Fanless design
Dimensions (W x H x D): 311 x 237 x 71.6 mm (12.24″ x 9.33″ x 2.82″)
Enclosure:

Front bezel: Die-cast Aluminum alloy
Back housing: PC/ABS Resin

Mounting: Desktop, Wall or Panel Mount
OS Support:

Microsoft® Windows 7/WES7/WES 2009/XPE/CE 6.0/
Linux / Android

Power Consumption: 20W (typical)
Power Input: 10~29 VDC
Watchdog Timer: 1 ~ 255 sec (system)
Weight (Net): 4.57 kg (10.07 lbs)

System Hardware

CPU: Intel® Atom™ D525 1.8 GHz with 1MB cache
Chipset: ICH8M
Memory: 4GB SO-DIMM DDR3 SDRAM
LAN: 10/100/1000Base-T x 2
Expansion Slots: Half-size PCI-E or full-size Mini PCI-E
Storage:

CompactFlash® slot x 1
2.5″ SATA HDD x 1 (Optional)

I/O:

RS-232 x 2 (COM1, 2) with isolation
RS-422/485 x 1 (COM3) with isolation and auto data flow control
USB 2.0 x 2 (Host)
PS/2 x 1

DI/DO & backup SRAM: 8 x DI/DO with isolation and backup 1MB SRAM

LCD Display

Display Type: SVGA TFT LED LCD
Display Size: 12.1″
Max. Resolution: 800 x 600
Max. Colors: 262 K
Luminance cd/m2: 450
Viewing Angle (H/V°): 160/140
Backlight Life: 50,000 hrs
Contrast Ratio: 700:1

Touchscreen

Lifespan: 10 million touches at single point
Light Transmission: Above 75%
Resolution: Linearity
Type: 5-wire, analog resistive

Environment

Humidity: 10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection: Front panel: IP65
Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
Vibration Protection: With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
