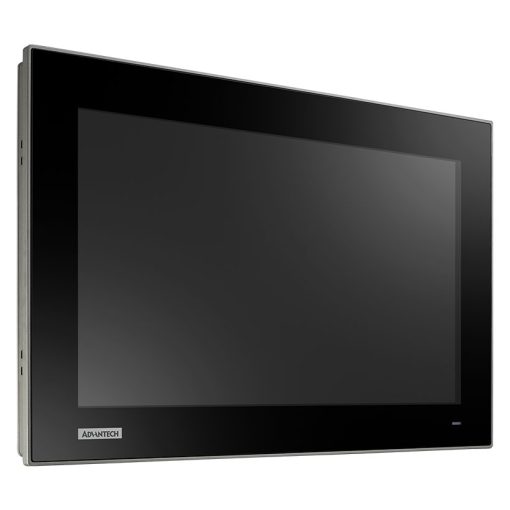

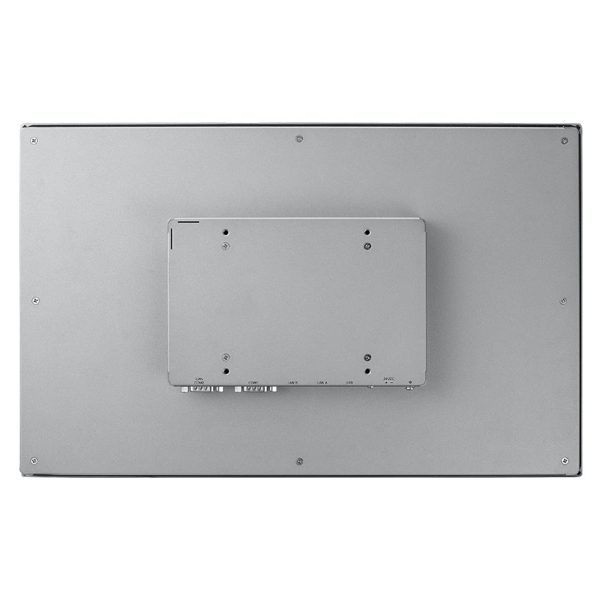

TPC-115W 15.6″ Touch Panel Computer with ARM Cortex™-A53 Processor
Call for Price
TPC-115W is equipped with an NXP® Cortex™-A53 i.MX 8M Mini quad-core processor. For web-based operations, TPC-115W offers two 10/100/1000 LANs that one supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC and browsers enable rapid Web application development and easy configuration.
Please click the link below to open the PDF datasheet
View Datasheet - NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 15.6″ 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Up to 2 GB DDR4 RAM and 16 GB eMMC storage onboard
- 1 mb FRAM backup memory for unexpected power interruptions
- 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and for rapid Web App development
- Supports Linux Yocto and Android
- Optional and mPCIe expansion modules
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
See Datasheet
