Call for Price

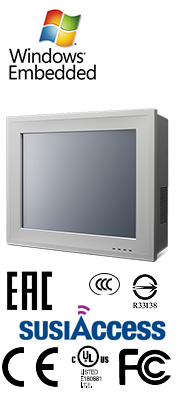

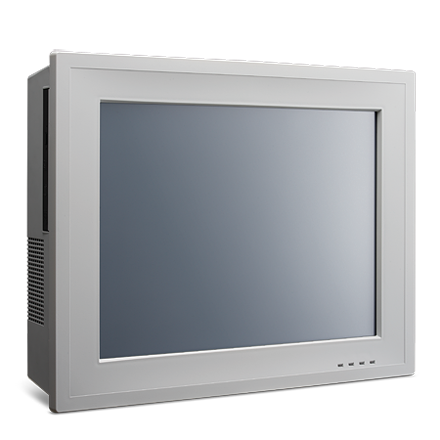

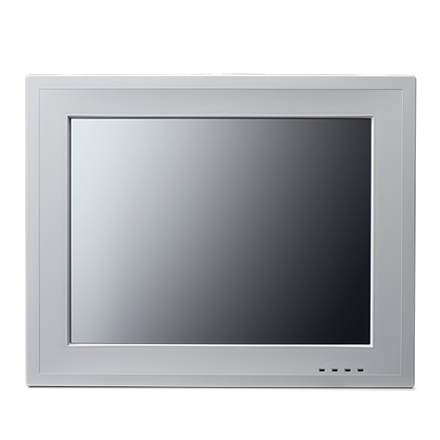

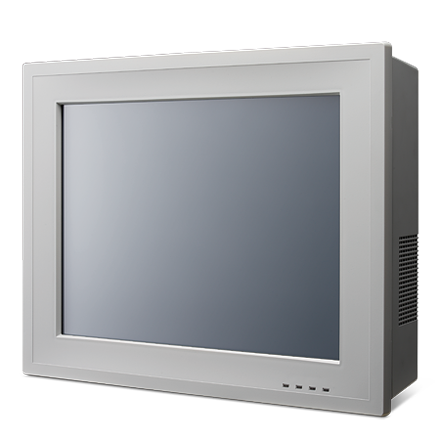

The PPC-6150 is a Panel PC with an Intel® Core™ i3/i5 or Celeron® processor, and a 15″ color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel® RAID, and one isolated RS-232/422/485 port make the PPC-6150 highly reliable, and provide a great solution for a wide range of applications.
Please click the link below to open the PDF datasheet
CPU: Intel Core i5-3610ME
CPU: Intel Core i3-3120ME
CPU: Intel Celeron 1020E

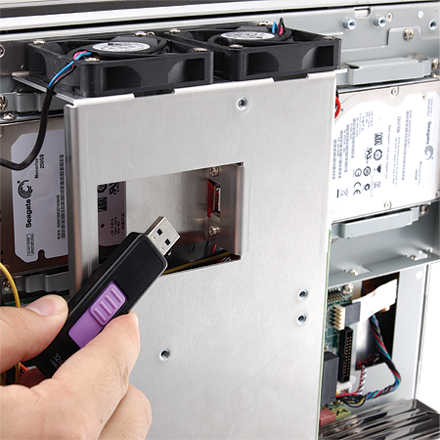

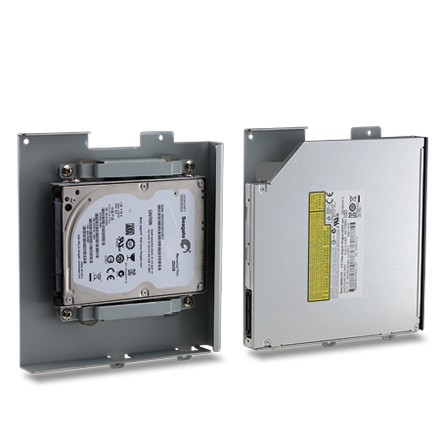

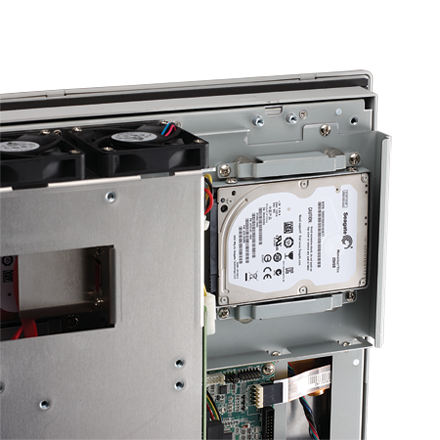

Either one: Second 2.5″ SATA bay (Intel RAID supported, optional)

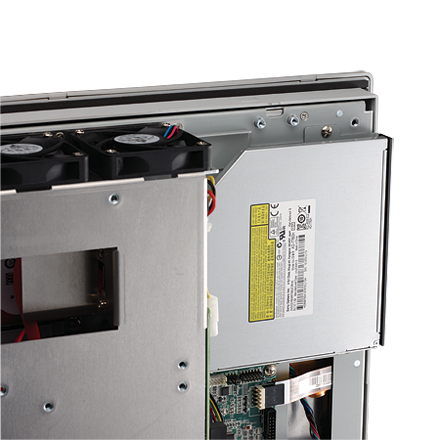

Slim type 8X or above DVD +/- RW (optional)

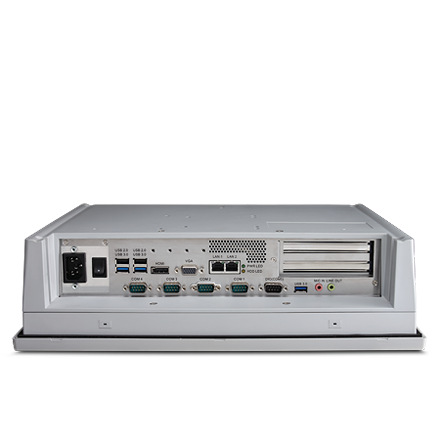

4 x Serial ports: 1 x isolated RS-232/422/485, 3 x RS-232
1 x GPIO/RS-232 (8 channels, TTL level); by pin header
3 x USB 3.0, 2 x USB 2.0
1 x VGA
1 x HDMI
1 x Line-out,1 x Mic-in

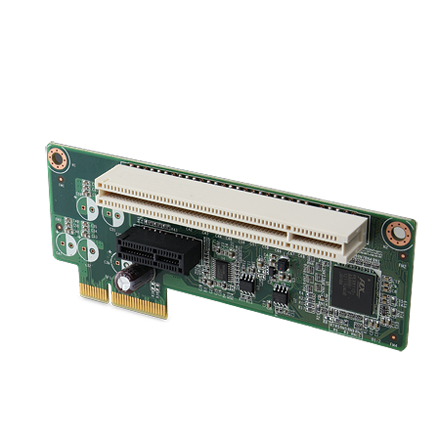

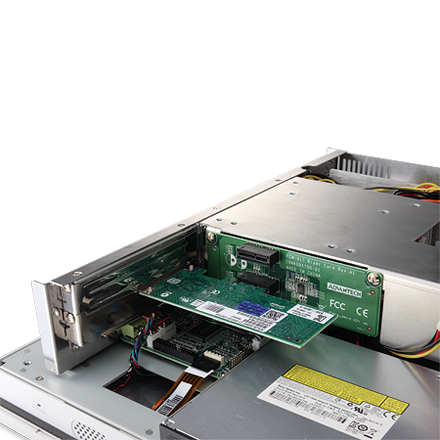

1 x PCI + 1x PCIex1 (standard)

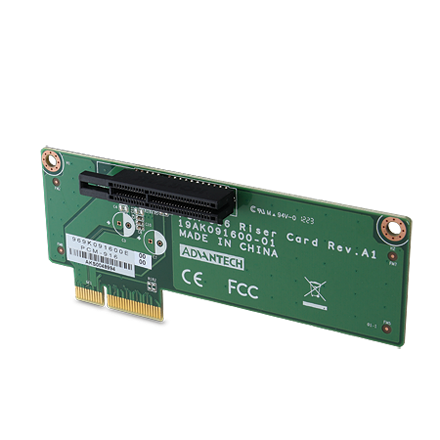

1 x PCIex 4 (in the accessory box)

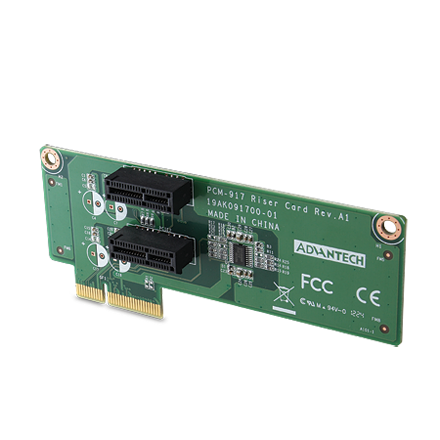

2 x PCIex 1 (optional)

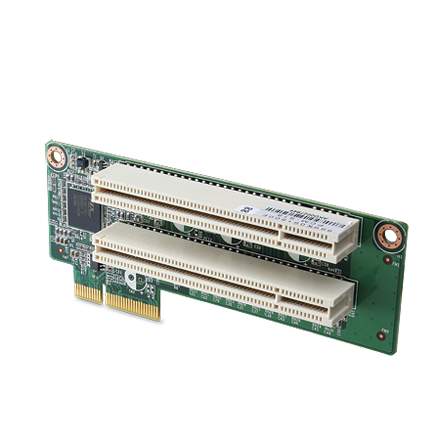

2 x PCI (optional)
1 x Full-size Mini PCIe (Supports mSATA)
1 x half-size Mini PCIe

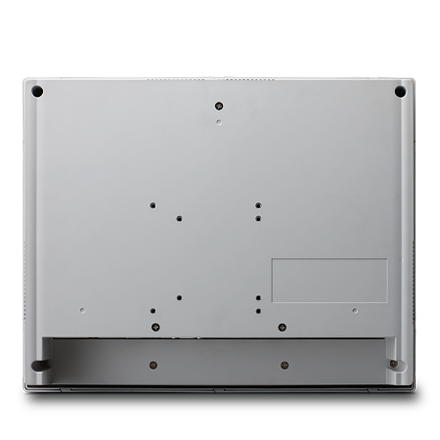

Physical Characteristics
OS Support:
Power Consumption
61W with i5-3610ME
50W with i3-3120ME
(Burn-in test 7.0 in Windows 7 32 bit)
LCD Display
