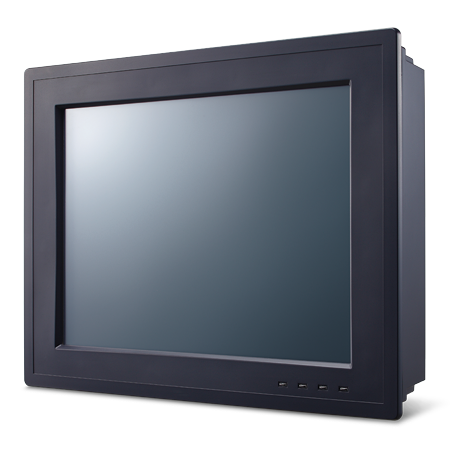

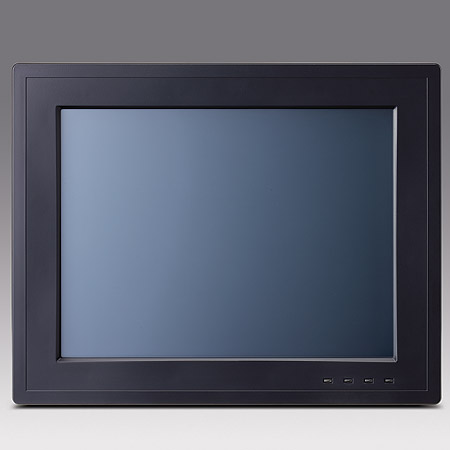

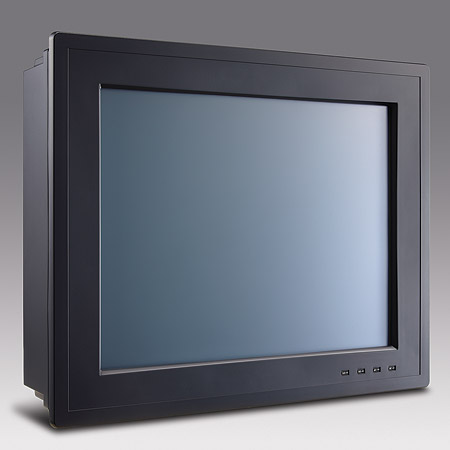

PPC-3100-RAE 10.4″ Fanless Panel PC with Intel® Atom™ D2550 Processor
Call for Price

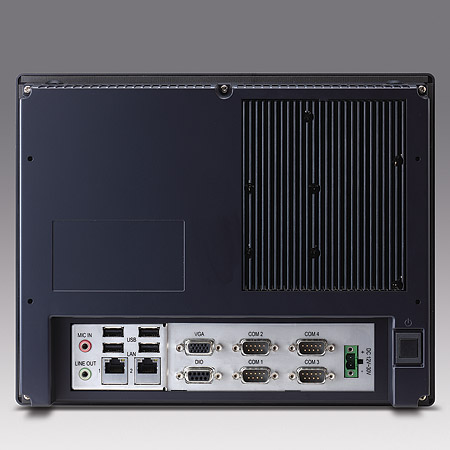

PPC-3100 is a new, 10.4″ Panel PC equipped with an Intel® Atom™ processor D2550. Meeting the demands of harsh environments, the fanless design makes the PPC-3100 extra reliable for applications in the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make device connection and integration easy. With a user friendly design, it comes with front panel LED indicators that show power on/off, storage access, and LAN activity.
Please click the link below to open the PDF datasheet
View Datasheet -
- 10.4″ TFT SVGA LED Panel with resistive touchscreen
- Embedded Intel® Atom™ processor D2550 1.86 GHz
- System memory up to 4 GB DDR3 1066 SDRAM
- Supports one internal SATA 2.5″ HDD and 1 x mSATA socket
- Fanless design and low power consumption
- Automatic data flow control over RS-485
- Adjust RS-232/422/485 through BIOS
- COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
Processor System
-
- CPU: Intel® Atom™ D2550, Dual core
- Frequency: 1.86 GHz
- 2nd Cache: 1 MB
- Chipset: NM10
- Memory: 1 x SO-DIMM, DDR3, Max 4 GB
- Storage: 1 x 2.5″ SATA Bay
1 x mSATA Bay
-
- Network (LAN): 2 x 10/100/1000 Mbps Ethernet
- I/O ports:
4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
4 x USB 2.0
1 x Line-out, 1x MIC-in
1 x DB15 VGA
1 x DB9 GPIO port (8 pin programmable)
-
- Expansion: 1 x Mini PCIe
- Watchdog Timer: 255 timer levels, set up by software
- Speaker: 2 x 3W
Physical Characteristics
-
- Dimensions: 275 x 220 x 64.3 mm (10.83″ x 8.74″ x 2.53″)
- Weight: 2.5 kg (5.51 lb)
OS Support
-
- OS Support: Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux
Power Comsumption
-
- Input Voltage: 12- 30 Vdc
- Power Consumption: 25 W (Burn-in test 7.0 in Windows 7 32bit)
22 W (Burn-in test 7.0 in Windows XP 32bit)
LCD Display
-
- Display Type: 10.4″ TFT LED Panel (LED Backlight)
- Max. Resolution: 800 x 600
- Viewing Angle: 80 (left), 80 (right), 70 (up), 70 (down)
- Luminance (cd/m2): 400
- Contrast Ratio: 700
- Backlight Lifetime: 30,000 hrs (typical)
Touchscreen
-
- Touch Type: Analog Resistive 5-wire
- Light Transmission: 81+/-3%
- Controller: RS-232 interface
- Durability (Touches): 36 million
