PICMG 1.3 Full-Size SHB Backplanes

    Call for Price

    PICMG 1.3 Full-Size SBC Backplanes are the expansion interface for Slot SBC and provide with flexibility, performance and shorten MTTR. The SBC backplane with space-saving design enables better cooling which is the ideal solution for various industrial applications.

    SKU: PICMG 1.3 FULL-SIZE SHB Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

      • PCE-5B03V-00A1E 3-slot Butterfly BP for 1U chassis
      • PCE-5B03V-01A1E 3-slot Butterfly BP for 1U chassis
      • PCE-5B05V-30A1E 5-slot Butterfly BP for 2U chassis
      • PCE-5B06V-00A1E 6-slot Butterfly BP for 2U chassi
      • PCE-5B06V-04A1E 6-slot Butterfly BP for 2U chassis
      • PCE-5B04-20A1E 4-slot BP for 5-slot chassis
      • PCE-5B05-02A1E 5-slot BP for 5-slot chassis
      • PCE-5B05-04A1E 5-slot BP for 5-slot chassi
      • PCE-5B06-00A1E 6-slot BP for 6-slot chassis
      • PCE-5B06-04A1E 6-slot BP for 6-slot chassis
      • PCE-5B06-40A1E 6-slot BP for 6-slot chassis
      • PCE-5B07-04A1E 7-slot BP for 8-slot chassi
      • PCE-5B08-02A1E 8-slot BP for 8-slot chassis
      • PCE-5B10-04A1E 10-slot BP for 14-slot chassis
      • PCE-5B12-64B1E 12-slot BP for 14-slot Chassis
      • PCE-5B12D-04A1E 12-slot, dual segments BP for 14-slot chassis
      • PCE-5B13-08A1E 13-slot BP for 14-slot chassis
      • PCE-5B12-07A1E 13-slot BP for 14-slot chassis
      • PCE-5B16Q-02A1E 16-slot BP for 20-slot chassis
      • PCE-5B18-88A1E 18-slot BP for 20-slot chassis
      • PCE-7B03V-00A1E PICMG1.3 Full-Size SHB 1U Butterfly Backplanes, 3-slot Butterfly BP for 1U chassis
      • PCE-7B03V-01A1E PICMG1.3 Full-Size SHB 1U Butterfly Backplanes, 3-slot Butterfly BP for 1U chassis
      • PCE-7B06V-04A1E 6-slot Butterfly BP for 2U chassis
      • PCE-7B06V-30A1E 6-slot Butterfly BP for 2U chassis
      • PCE-7B05-20A1E 5-slot BP for 5-slot chassis
      • PCE-7B06-04A1E 6-slot BP for 6-slot chassis
      • PCE-7B06-40A1E 6-slot BP for 6-slot chassis

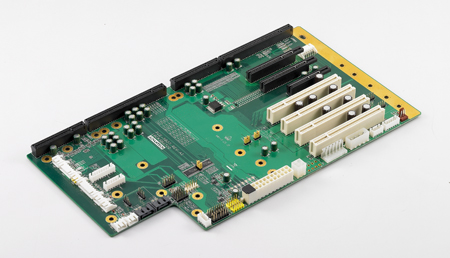

      • PCE-7B08-04A1E 8-slot BP for 8-slot chassis
      • PCE-7B10-04A1E 10-slot BP for 14-slot chassis
      • PCE-7B13-07A1E 13-slot BP for 14-slot chassis
      • PCE-7B13-64B1E 13-slot BP for 14-slot chassis
      • PCE-7B13D-04A1E 13-slot BP for 14-slot chassis
      • PCE-7B16Q-02A1E 16-slot BP for 20-slot chassis
      • PCE-7B19-88A1E 19-slot BP for 20-slot chassis

      Download Datasheet for complete range
