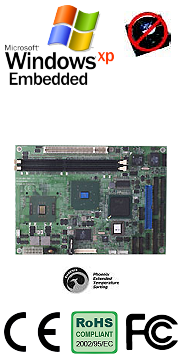

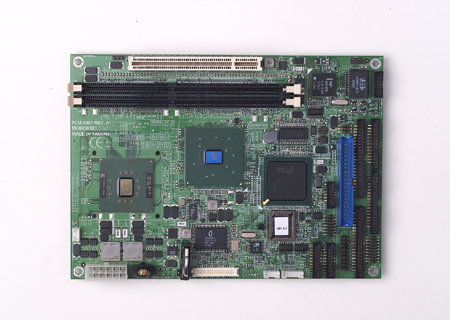

PCM-9581 Intel® Pentium® M Processor 5.25″ SBC with LAN/LVDS/VGA/Audio

Call for Price

Intel® Pentium® M Processor 5.25″ SBC with LAN/LVDS/VGA/Audio

SKU: PCM-9581 Category: 5.25" SBC

Please click the link below to open the PDF datasheet

Intel® Pentium® M/Intel Celeron® M
ECC DDR200/266/333 128 MB to 2 GB
With Vcore 2 phase design for more stable system design
Supports up to 1000Base-T Ethernet
6 USB 2.0 ports, 4 COM ports, 8-bit GPIO
36-bit LVDS interface
Supports enhanced Intel Speedstep® Technology
Supports a wide range of temperatures (select models)

Processor System

CPU: Intel Pentium M 1.1 GHz, LV Pentium M 1.4 GHz, Celeron M 600 MHz, uFCPGA2 (478-pin)
Front Side Bus: 400/533 MHz
L2 Cache: 512 KB ~ 2 MB
Chipset: Intel 855GME/GMCH + ICH4
BIOS: Award 4 Mbit

Memory

Technology: DDR 200/266/333
Max. Capacity: 2 GB
Socket: 2 x 184-pin DIMM

SSD

CompactFlash: Card Type I, Type II (shared 2nd IDE Channel)

I/O Interface

LPT: 1
FDD: 1 (optional)
RS-232: 3
RS-232/422/485: 1
K/B: 1
Mouse: 1
USB 6 x USB 2.0
Audio: AC97, Speaker out, CD-input, Line-in, Line-out, Mic-in
GPIO: 8-bit general purpose input/output
SMBus: –
IrDA: 115 kbps

EIDE

Mode: UDMA 100
Channel: 2

Expansion Slot

PCI: 1
miniPCI: 1

Ethernet

Speed: 10/100Mbps (PCM-9581F); 10/100/1000Mbps (PCM-9581FG)
Controller: Intel 82551ER, optional 82551QM, 82541PI (GbE)
Interface: RJ-45 by cable

Display

Controller: Intel 855GME
VRAM: Optimized Shared Memory Architecture up to 32 MB system memory
LVDS LCD: 1 x 36-bit LVDS
TV-Out: Supports both NTSC/PAL, S-video and Composite Video
Dual Independent Display: CRT + LVDS, CRT + DVI

Environment

Operation Temperature: 0 ~ 60° C (32 ~ 140° F)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing

Power

Power Type: AT / ATX
Power Supply Voltage: +5 V ±5%, +12 V ±5%
Power Consumption: Typical: Average: +5 V @ 3.22 A, +12 V 0.2 A(Pentium M 1.6 G, 256 M DDR 300)
Power Consumption:Max, test in HCT: Max: +5 V @ 3.8 A, +12 V @ 0.4 A(Pentium M 1.6 G, 256 M DDR 300)
Power Management: APM, ACPI
Battery: Lithium 3 V / 196 mAH

Watchdog Timer

Output: System reset
Interval: Programmable 1 ~ 255 sec

Physical Characteristics

Dimensions (L x W): 203 x 146 mm (8″ x 5.75″)
Weight: 0.85 kg (1.87 lb) (weight of total package)
