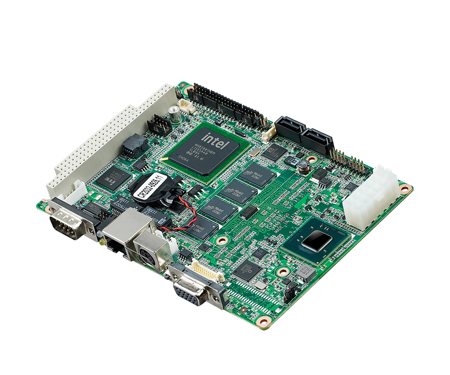

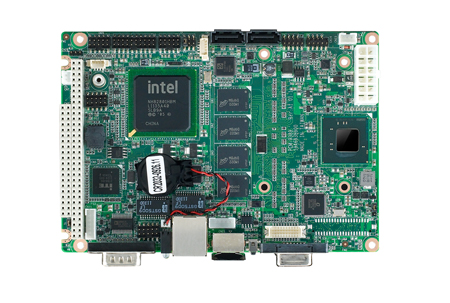

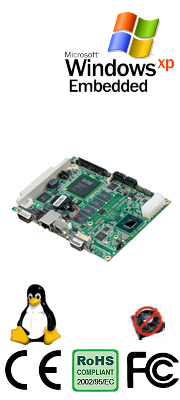

PCM-9389 Intel® Atom™ N455/D525 3.5″ SBC, DDR3 SODIMM or on-board SDRAM, PC/104, 18/24-bit LVDS, VGA, 2 GbE, 4 COM, LPC, iManager 2.0
Call for Price
Intel® Atom™ N455/D525 3.5″ SBC, DDR3 SO-DIMM or on-board SDRAM, PC/104, 18/24-bit LVDS, VGA, 2 GbE, 4 COM, LPC, iManager 2.0.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Atom™ N455 Single Core/ D525 Dual Core processor + ICH8M, DDR3 on-board memory or SO-DIMM support
- Intel Gen 3.5 DX9, MPEG2 Hardware Decoder, dual independent display: 18/24-bit LVDS, VGA
- Intel Dual GbE supported; Rich I/O interface with 4 COM , 2 SATA, 4 USB and GPIO connectors
- Integrates internal LPC connector to support four extra COM ports via PCA-COM232 or PCA-COM485
- Supports iManager, SUSIAccess and Embedded Software APIs
- Processor System
- CPU: Intel Atom N455 Single Core 1.66 GHz Processor
- Frequency: 1.66 GHz on N455, 1.8 GHz on D525
- L2 Cache: 512 KB/1 MB
- System Chipset: Intel N455/D525 + ICH8M
- BIOS: AMI 16 Mbit Flash BIOS
- Technology: DDR3 667 MHz for N455, 800 MHz for D525
- Max. Capacity: SODIMM sku: 2GB for N455, 4GB for D525
- Socket: 1 x 204-pin SODIMM
- Onboard Memory: 1GB (D525 on board memory supported by request)
- Chipset: Intel Atom Processor N455 1.66GHz/D525 1.8 GHz
- VRAM: Optimized Shared Memory Architecture up to 224 MB system memory
- Graphic Engine: Intel Gen 3.5 DX9, MPEG2 hardware decoder
- LVDS: LVDS: Single channel 18/24-bit LVDS up to WXGA 1366 x 768
- VGA: Intel Atom N455 Single Core up to 1400 x 1050 (SXGA), Intel Atom D525 Dual Core up to 2048 x 1536
- TTL: 18-bit TTL (by request)
- Dual Display: VGA+LVDS, VGA+TTL (TTL support by request)
- Speed: 10/100/1000 Mbps (Supports Wake on LAN)
- Controller: GbE1 Intel 82567V, GbE2 Intel 82583V
- Connector: GbE1 on RJ-45, GbE2 on internal box wafer
- Chipset: Realtek ALC892
- 255 levels timer interval, programmable by software. Multi-level WDT (set by iManager)

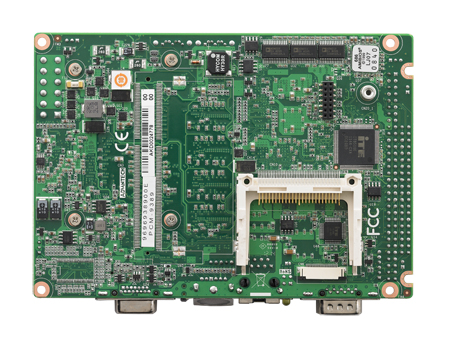

- CompactFlash: CompactFlash type I/II (Primary Master IDE Channel)
- SATA: 2 SATA II (Max. Data Transfer Rate 300 MB/s)
- Serial: 1 (COM1 supports RS-232) (ESD protection for COM1: Air gap ±15kV, Contact ±8kV)
- Ethernet: 1 (10/100/1000 Mbps)
- PS/2 KB/Mouse: 1
- VGA: 1
- Reset Button: 1
- USB: 4 x USB 2.0
- Serial: 3 x COM (ESD protection for all COM ports: Air gap ±15kV, Contact ±8kV)
- SMBus: 1
- I2C: 1 (Shared with SMBus pin)
- Ethernet: 1 (10/100/1000 Mbps)
- GPIO 8-bit GPIO (5V tolerance)
- PC/104 Expansion (8/16-bit ISA): 1 (No support ISA DMA) (Booted and powered from PC/104 supported by request)
- LPC connector: 1 (For support of COM ports by PCA-COM232 or PCA-COM485)
- Power Type: AT/ATX
- Power Supply Voltage: 5V+/-5% (12V option for LCD, PC/104)
- Power Consumption (Typical): PCM-9389N: 1.63 A @ 5 V (8.15 W)
- Power Consumption (Max, test in HCT): PCM-9389N: 2.23 A @ 5 V (11.15 W)
- Power Management: APM, ACPI
- Battery Lithium: 3 V/210 mAH
- Operational: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
- Non-Operational: -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
- Dimensions (L x W): 146 x 102 mm (5.7″ x 4″)
- Weight: 0.64 kg (1.41 lb), weight of total package
- Total Height: 26.2 mm for PCM-9389N
Intel Atom D525 Dual Core 1.8 GHz Processor
Memory
Display
Embedded Gen3.5+ GFX Core
Ethernet
Audio
High Definition Audio (HD), Line-in, Line out, Mic-in
WatchDog Timer
Storage

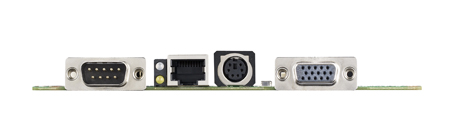

Rear I/O
Internal I/O
COM3/4 supports RS-232, COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)
Expansion
Power
PCM-9389D: 1.94 A @ 5 V (9.7 W)
PCM-9389D: 2.9 A @ 5 V (14.5 W)
Environment
Physical Characteristics
29.2 mm for PCM-9389D
