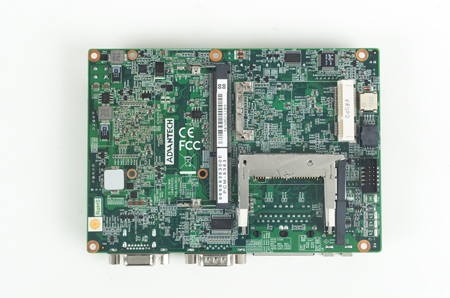

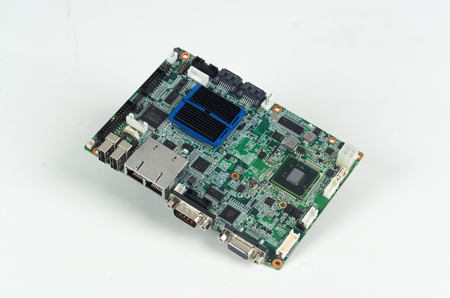

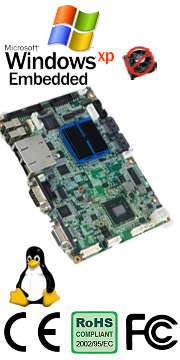

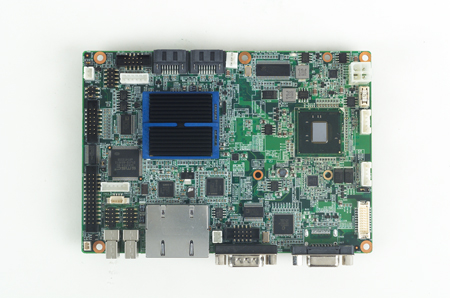

PCM-9363 Intel® Atom™ N455/D525 3.5″ SBC, DDR3, 18/24-bit LVDS, VGA/HDMI, 2 GbE, Mini PCIe, CF
Call for Price
Intel® Atom™ N455/D525 3.5″ SBC, DDR3, 18/24-bit LVDS, VGA/HDMI, 2 GbE, Mini PCIe, CF.
Please click the link below to open the PDF datasheet
View Datasheet - Embedded Intel® Atom™ N455 Single Core/ D525 Dual Core processor + ICH8M, DDR3 memory support
- Intel Gen 3.5 DX9, MPEG2 Hardware Decoder, multiple display: 18/24-bit LVDS, VGA or 1080P HDMI
- Supports extended temperature -40° C ~ 85° C
- Two Intel GbE connections; Rich I/O with 3 COM, 2 SATA, 6 USB and GPIO connectors
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU: Intel Atom N455 Single Core 1.66 GHz Processor
- Frequency: 1.66GHz for N455, 1.8GHz for D525
- L2 Cache: 512KB for N455, 1MB for D525
- System Chipset: Intel N455/D525 + ICH8M
- BIOS: AMI 16 Mbit Flash BIOS
- Technology: DDR3 667 MHz for N455, 800 MHz for D525
- Max. Capacity: 4GB for D525, and 2GB for N455
- Socket: 1 x 204-pin SODIMM
- Chipset: Intel Atom Processor N455 1.66GHz/D525 1.8GHz
- VRAM: Optimized Shared Memory Architecture up to 224 MB system memory
- Graphic Engine: Intel Gen 3.5 DX9, MPEG2 Decode in HW
- LVDS: LVDS: Single channel 18/24-bit LVDS up to WXGA 1366 x 768
- VGA: Intel Atom N455 Single Core up to 1400 x 1050 (SXGA), Intel Atom D525 Dual Core up to 2048 x 1536
- HDMI: Supported by request (the HDMI resolution has to be set with the Chrontel Utility in Windows XP/XP Embedded)
- Dual Display: VGA+LVDS
- Speed: 10/100/1000 Mbps (Supports Wake on LAN)
- Controller: GbE1 Intel 82567V, GbE2 Intel 82583V
- Connector: RJ-45 on GbE1, GbE2
- Chipset Realtek ALC892
- Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
- CompactFlash: CompactFlash type I/II (Primary Master IDE Channel)
- SATA: 2 SATA II (Max. Data Transfer Rate 300 MB/s), 1 internal SATA power connector
- Serial 1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
- Ethernet: 2 (10/100/1000 Mbps)
- VGA: 1
- HDMI: 1 (Support by request)
- USB: 2
- USB: 4 x USB 2.0
- Serial: 2 x COM (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
- Parallel(LPT): 1
- SMBus: 1
- PS/2: KB/Mouse 1
- GPIO: 8-bit GPIO
- Mini PCIe: 1 (Full-size)
- Power Type: AT
- Power Supply Voltage: Supports single 12V input, ± 10%
- Power Consumption (Typical): PCM-9363N: 0.74 A @ 12 V (8.88 W)
- Power Consumption:
- Power Management: APM, ACPI
- Battery Lithium: 3 V/210 mAH
- Operational 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
- Non-Operational: -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
- Dimensions (L x W): 146 x 102 mm (5.7″ x 4″)
- Weight: 0.64 kg (1.41 lb), weight of total package
- Total Height: 30.5mm for PCM-9363N
Intel Atom D525 Dual Core 1.8 GHz Processor
Memory
Display
Embedded Gen3.5+ GFX Core
Supports Hot Plug Detection (HPD) for HDMI
Ethernet
Audio
High Definition Audio (HD), Line-in, Line out, Mic-in
WatchDog Timer
Storage
Rear I/O
Internal I/O
COM3 supports RS-232, COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)
Expansion
Power
PCM-9363D: 0.86 A @ 12 V (10.32 W)
(Max, test in HCT)
PCM-9363N: 0.86 A @ 12 V (10.32 W)
PCM-9363D: 1.18 A @ 12 V (14.16 W)
Environment
Physical Characteristics
34.5mm for PCM-9363D
