Call for Price

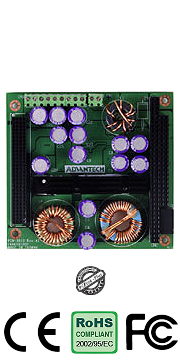

DC to DC Power Supply PC/104-plus Module.

SKU: PCM-3910 Category: PC/104 Misc Modules

Please click the link below to open the PDF datasheet

50 W output
10 V to 24 VDC input range
Reverse input protection
5 V, 12 V, -5 V and -12 V outputs

General

Bus Interface: PC/104-Plus
Input Voltage: 10 V to 24 VDC ±5%
Output Voltage

5 V output 10.0 A
12 V output 2.0 A
-5 V output 0.4 A (optional)
-12 V output 0.4 A

Mechanical and Environmental

Dimensions (L x W): 96 x 90 mm (3.8″ x 3.5″)
Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
Weight: 0.084 kg (0.185 lb)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing
