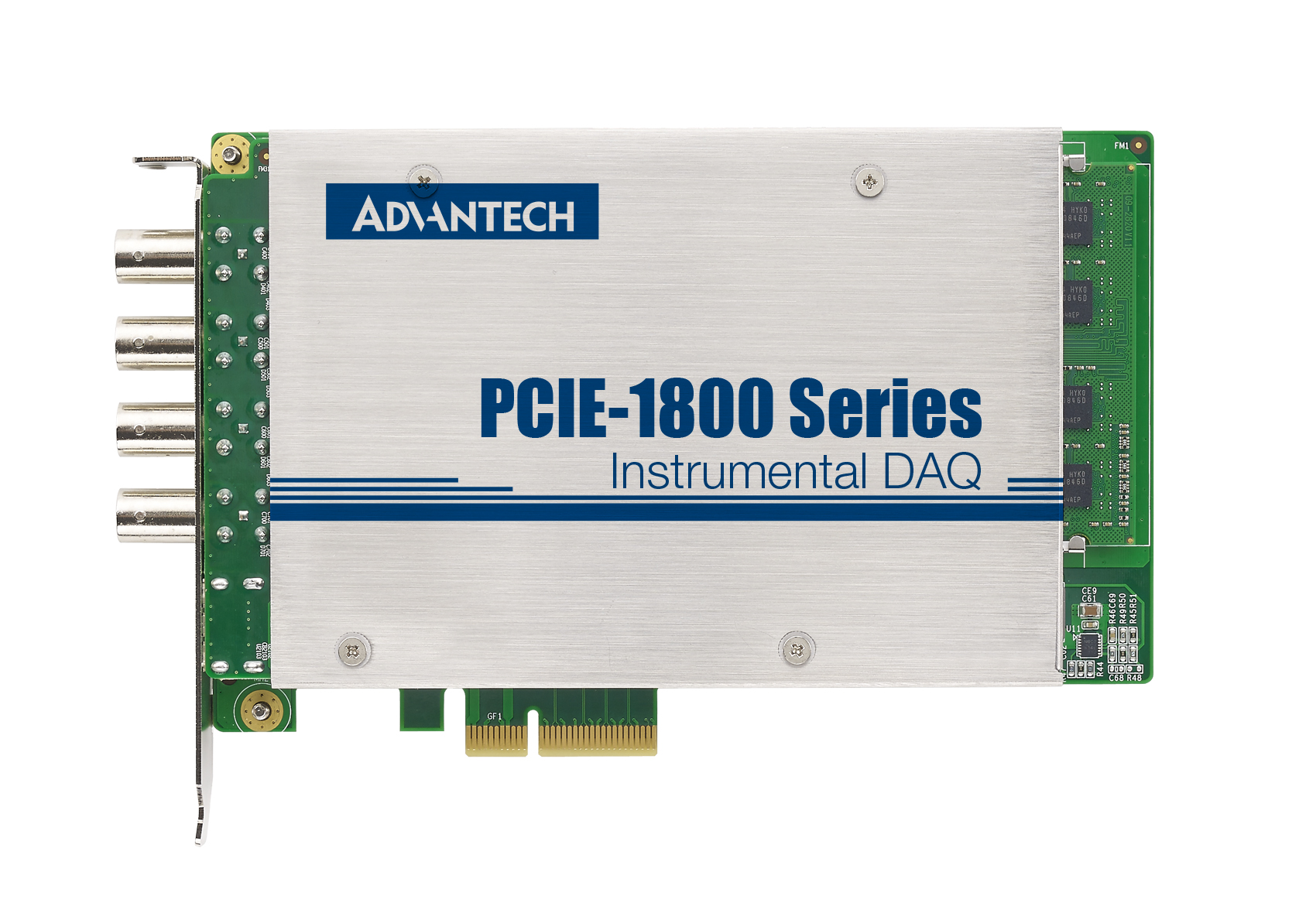

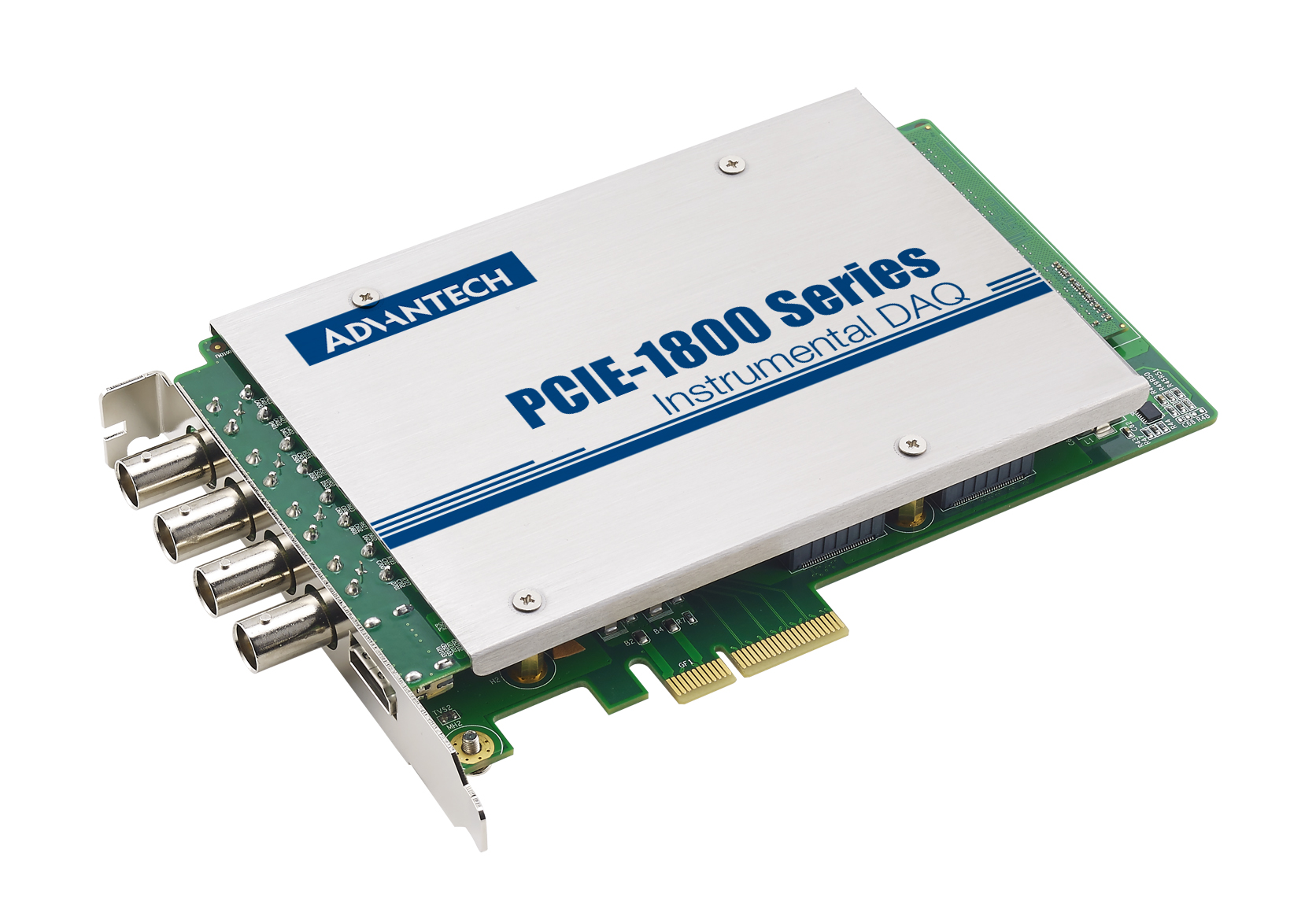

PCIE-1840L 16-bit, 4-ch, high speed up to 125/80 MSPS DSA card
£2,113.00 excl. vat
The PCIE-1840 16-bit resolution digitizer divides the input voltage range into 65,536 different digitization levels, it also features sampling rates up to 125M Samples per second, and can be combined into 1 or 2 digitizing channels up to 250 MSPS or 500 MSPS , deep onboard sample memory up to 2 GB, and true ENOBs up to 11.4 bits
Please click the link below to open the PDF datasheet
View Datasheet - 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
- 500MHz Time Interleaved Sampling
- Non-stop data streaming capable
- 2 GB on-board memory
- 1M or 50 Ohm selectable input impedance
- On-Board tunable anti-aliasing filter
- AC/DC Coupling
- Analog Input
- Channels: 4 single-ended , simultaneously
- Resolution: 16 bits
- Max. Sampling Rate: 80 MS/s (PCIE-1840L)
- Memory Size: 2GB
- Over Voltage Protection: 30 Vp-p
- Input Impedance: 50 Ω / 1M Ω
- Sampling Modes: Software and external clock
- Trigger Modes: Start trigger, Delay to Start trigger
- Input Range: 0.2 / 0.4 / 1 / 2 / 4 / 10 /
- Time Interleaved Sampling: – 4 channels combined,
- Bus Type: PCI Express GEN2 x 4
- I/O Connectors: 4 x BNC connector (for AI)
- Dimensions (L x H): 175 x 100 mm (6.9″ x 3.9″)
- Power Consumption: Under test
- Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Storage Humidity: 5 ~ 95% RH, non-condensing
For 1 MΩ: AC Coupling /DC Coupling
Stop trigger, Delay to Stop trigger
20 Vpp (input Impedance must be 1 MΩ)
320 MPS max. (PCIE-1840L)
– 2 channels combined,
160 MPS max. (PCIE-1840L)
– Configured automatically by setting sampling
rate
General
1 x HDMI connector (for Ext. clock and trigger)
