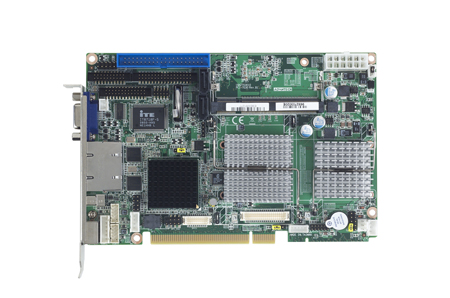

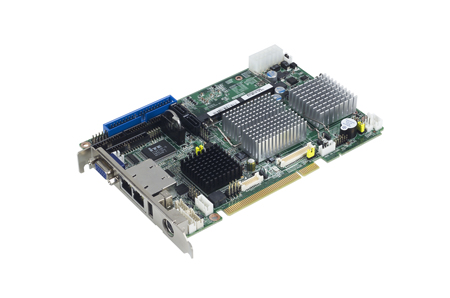

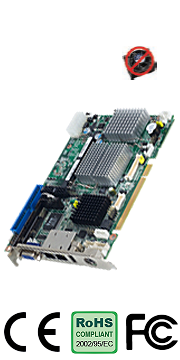

PCI-7030 Intel® Atom™ N270 PCI Half-size SBC with Dual GbE LAN/LVDS/DVI/SATA/6 COM
Call for Price
PCI-7030 Intel® Atom™ N270 PCI Half-size SBC with Dual GbE LAN/LVDS/DVI/SATA/6 COM.
Please click the link below to open the PDF datasheet
View Datasheet - Ultra Low power Fanless Intel® Atom™ processor N270 1.6 GHz
- One/Dual Gigabit Ethernet
- Supports up to 6 COM (Optional module 4 x RS-485 w/auto-flow control by PCA-COM485 module)
- 1600 x 1200 @ 18/36-bit LVDS, DVI support
- CPU: Intel Atom N270 processor 1.6 GHz
- FSB: 400/533
- L2 Cache: 512 KB cache
- Chipset: Intel 945GSE + Intel ICH7M
- BIOS: Award SPI 8 MB
- PCI: 32-bit/ 33 MHz
- Technology: Single Channel DDR2 SODIMM 400/533 MHz
- Max. Capacity: 2 GB
- Socket: Yes
- Controller: Intel 945GSE integrated VGA mode: Supports up to QXGA 2048 x 1536 pixels with 32-bit color @ 75 Hz
- VRAM: Shared system memory up to 224 MB (DVMT 3.0)
- LVDS: Supports 18/36-bit up to UXGA 1600 x 1200
- DVI: Maximum pixel lock of 400 MHz up to 1600 x 1200 pixels and 1920 x 1200 (reduced blanking) resolutions @ 75 Hz
- Dual Display: VGA, LVDS, DVI
- Interface: 10/100/1000 Mbps Ethernet
- Controller: Intel 82574L

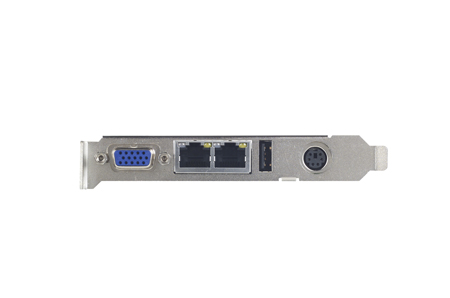

- Connector: RJ-45 x 1 for VG ; RJ-45 x 2 for G2
- Mode: Ultra ATA 100/66/33
- Channel: 1
- Port 2 for SATA1, 150 MB/s
- USB: 6 USB2.0 for VG; 5 USB2.0 for G2 480 Mbps; 4 ports onboard and 2 for VG/1 for G2 ports on rear I/O
- Serial :6 COM (2 x RS-232 onboard; Optional: 4 x RS-422/485 w/auto-flow by PCA-COM485 module)
- Parallel: 1 (via super I/O)
- FDD: 1
- GPIO: 8-bit ; CMOS Level (0 ~ 5 V)
- PS/2: 6-pin DIN socket on bracket for PS/2 keyboard and mouse (via super I/O) 6-pin (2.54 mm) wafer box connector for keyboard only
- Output System reset
- Interval 1 min/sec or Max 65535 min/sec
- Audio Output: Intel High Definition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E)
- Solid State Disk: CompactFlash socket (Type I/II), shared with secondary IDE
- CPU/RAM: Atom 1.6G + DDR2 2G (533)
- Voltage: +12 V (0.31 A) +5 V (2.19 A) +3.3 V (0A) +5 VSB (0.04A) +2 V (0A)
- Operating Temperature 0 ~ 60° C (32 ~ 140° F) (operating humidity: 40° C @ 85% RH Non-Condensing)
- Non-Operating Temperature (Storage): -40° C ~ 85° C and 60° C @ 95% RH Non- Condensing
- Dimensions: 185 mm (L) x 122 mm (W) (7.3″ x 4.8″)
Processor System
Bus
Memory
Graphics
Ethernet
EIDE
SATA (150 MB/s
I/O Interface
Watchdog Timer
Miscellaneous
Power Requirement
Environment
Physical
