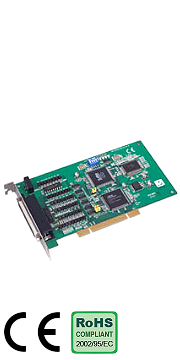

PCI-1243U 4-axis Low Cost Stepping Motor Control Universal PCI Card
Call for Price
PCI-1243U is a 4-axis intelligent stepping motor control card with universal PCI interface. The card’s PCD-4541 motion controller can execute a variety of motion-control commands.For advanced applications, we supply a DLL so that programs can be created for the Microsoft® Windows® environment.
PCI-1243U is a cost-effective solution for PCI based motion control. Each axis can be controlled directly through the card’s I/O registers. However, use of the card’s high-level DLLdriver is recommended. With the DLL driver, you can easily link to VC++®, Visual Basic® or BCB.
Please click the link below to open the PDF datasheet
View Datasheet - 4 axis stepping motor control
- PCI universal bus
- Up to 400 k pulse output rate
- T-curve acceleration/deceleration
- Pulse/Dir and CW/CCW pulse output mode
- Up 24-bit step count
- Opto-Isolated Digital input and output
- Up to 1,500 Vrms system isolation
- BoardIDTM switch
- Pulse Type Motion Control
- Motor Driver Support: Stepping
- Number of Axes: 4
- Max. Output Speed: 400 kpps
- Step Count Range: 0 ~ 16, 777, 215
- Pulse Output Type: Pulse/Direction, CW/CCW
- Position Counters: ±16, 777, 215
- Home Modes: 4
- Velocity Profiles: T or S-curve acceleration/deceleration
- Local I/O:
- Channels: 8
- Input Voltage Logic: 0: 1 V
- Isolation Protection: 3,750 VRMS
- Opto-Isolator Response: 25μs
- Input Resistance: 4.7 kW
- Channels: 8
- Output Type: Sink (NPN)
- Isolation Protection: 3,750 VRMS
- Output Voltage: 5 ~ 30 VDC
- Sink Current: 200 mA max./channel; 1.1 A max. total
- Opto-Isolator Response: 25μs
- Bus Type: PCI V2.2
- Certifications: CE
- Connectors: 1 x DB-62 female
- Dimensions: 175 x 100 mm (6.9″ x 3.9″)
- Power Consumption: Typical: 5 V @ 340 mA
- Storing Humidity: 5 ~ 95% RH, non-condensing (IEC 68-2-3)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Storing Temperature: -20 ~ 80° C (-4 ~ 170° F)
Machine Interfaces: PEL x 4, NEL x 4, ORG x 4, SLD x 4, EMG x 1
General Inputs: 8
General Outputs: 8
Isolated Digital Input
Logic 1: 12 V (24 V max.)
Isolated Digital Output
General
Max: 5 V @ 500 mA mA
