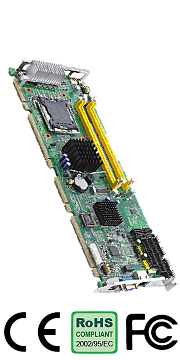

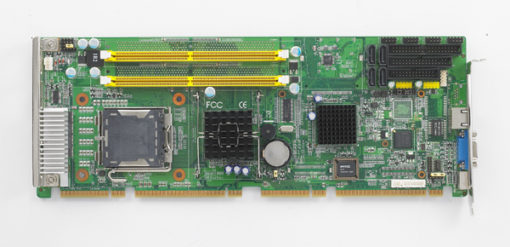

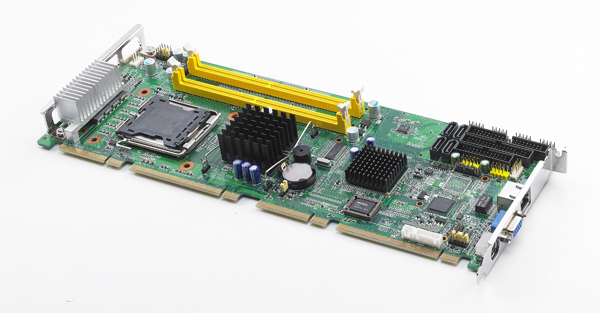

PCE-5020 LGA775 Intel® Core™2 Duo SHB with VGA/Dual GbE.

SKU: PCE-5020 Category: SHB Express

Please click the link below to open the PDF datasheet

Compliant with PICMG 1.3
Supports LGA 775Intel® Core™2 Duo processors with 1066 MHz FSB
Supports Dual Channel DDR2 667 MHz SDRAM up to 4 GB
One PCIe x16 and Four x1 to backplane
Dual GbE LANs via PCIe x1 Lanes
Supports 4 SATA2 Ports with S/W RAID 0, 1, 5, 10
Supports Up To 4 Onboard COM ports

Processor System(all)

Chipset: VG Sku: Intel 945GC + ICH7R VE Sku: Intel 945GC + ICH7
BIOS: AWARD 4 Mbit FWH

Processor System

CPU: Intel Core2 Duo
FSB 1066 MHz
Max Speed: 2.93 GHz
L2 Cache: 4 MB

Processor System

CPU: Pentium Dual-Core
FSB 800 MHz
Max Speed: 2.7 GHz
L2 Cache: 2 MB

Processor System

CPU: Intel Celeron D 440
FSB 800 MHz
Max Speed: 2 GHz
L2 Cache: 512 KB

Processor System

CPU: Pentium 4
FSB 800 MHz
Max Speed: 3.4 GHz
L2 Cache: 2 MB

Processor System

CPU: Celeron D
FSB 533 MHz
Max Speed: 3.6 GHz
L2 Cache: 512 KB

Bus

PCIe: One x16 and Four x1 to backplane
PCI: Four 32-bit/33 MHz PCI Masters to backplane

Memory

Technology: Dual-channel DDR2 400/533/667 MHz DIMMs
Max. Cap.: 2 GB
Socket: 240-pin DIMM x 2

Graphics

Discrete: PCIe x16 Graphics Card
Integrated: Intel Graphics Media Accelerator 950
VRAM: Shared with 224 MB system memory

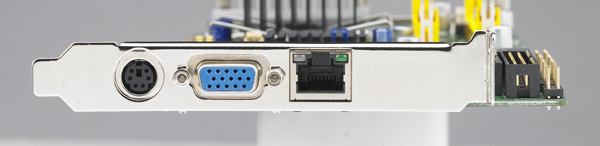

Video Output: 15-pin D-sub Connector x1

Ethernet

Interface: 10/100/1000 Mbps
Controller: G2 Sku: 82573L x 2 VG Sku: 82573L x 1 VE Sku: 82562GZ x 1
Connector: RJ-45 with LED Connector x 1

SATA

Bandwidth: 300 MB
Channel: 4 on SHB, G2/VG Sku supports S/W RAID 0, 1, 5, 10, VE Sku has NO S/W RAID

EIDE

Mode: ATA 100/66/33
Channel: 1 (Supports up to 2 IDE devices including 1 optional CF socket)

I/O Interface

USB: 2.0 4 ports on the SHB, 4 ports on the BP
Serial: G2 Sku: 1 RS-232/422/485 and 3 RS-232 with pin headers VG Sku: 1 RS-232/422/485 and 3 RS-232 with pin headers VE Sku: 1 RS-232/422/485 and 1 RS-232 with pin headers
Parallel: 1 (EPP/ECP)
FDD: 1
PS/2: 1 (for mouse and keyboard, and Y-cable is included in the package)

Watchdog Timer

Output Interrupt, system reset
Interval Programmable, 1~255 sec/min

Miscellaneous

Audio Output: Intel High Definition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E)

Power Requirement

CPU: Pentium D 3.2 GHz / 2 MB L2/ 800 MHz FSB / 130 W TDP
Memory: DDR2 667 MHz 1 GB x 2
Voltage/Current: +12V/15A, +5V/2A, +3.3V/20A, +5VSB/0.7A, -12V/0A, -5V/0A

Environment

Operating Temperature 0 ~ 60° C (32 ~ 140° F) (operation humidity: 40° C @ 85% RH Non-Condensing)
Non-Operating Temperature (Storage): -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimensions: 338.58 mm (L) x 126.39 mm (W) (13.3″ x 4.98″)
