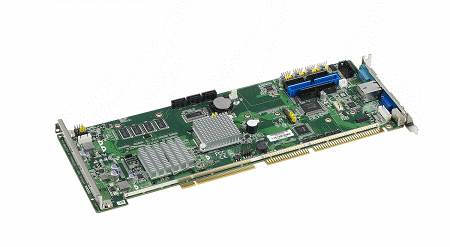

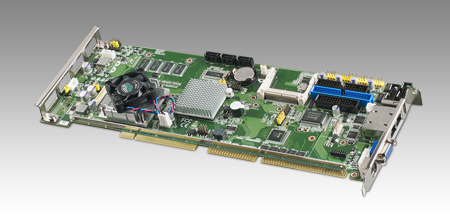

PCA-6013 Intel® Atom™ N455/D525 SBC with VGA/Dual GbE LAN
£0.00 excl. vat
Intel® Atom™ N455/D525 SBC with Anti-surge LAN/COM.
Please click the link below to open the PDF datasheet
View Datasheet - Anti-surge , Anti-Viberation, D525 CPU and maximum 3 GB DDR3 800 memory (Only for D SKU)
- Anti-surge , Anti-Viberation, fanless N455 CPU and maximum 2 GB DDR3 667 memory (Only for N SKU)
- Memory anti-vibration through 1GB on board memory and SO-DIMM mounting holes
- IE61000-4-5 LV.3 anti-surge certificated rear I/O: LAN, COM ports and optional module for 4x RS-485 w/Auto-flow control
- Processor System
- CPU: Intel Atom N455
- Speed: 1.66 GHz
- L2 Cache 512 KB
- Chipset: Intel ICH8M
- BIOS: AMI 16Mb SPI Flash
- CPU: Intel Atom D525
- Speed: 1.8 GHz
- L2 Cache 1 MB
- Chipset: Intel ICH8M
- BIOS: AMI 16Mb SPI Flash
- PCI: 32-bit/33 MHz PCI
- ISA: HISA (ISA High Drive)
- Technology: Dual channel DDR3 800 MHz DIMMs
- Max. Cap.: 2 GB 3 GB
- Layout: 1G on-board and 204 pin SODIMM x1
- Controller: Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant
- VRAM: Shared with system memory up to 224 MB
- Video Interface: 15-pin VGA D-sub connector x1/LVDS pin header x 1
- Video Output:
- Interface: 10/100/1000 Mbps
- Controller: LAN1: Intel 82567V, LAN2: Intel 82583V
- Connector: RJ45 with LED Connector x2 (G2 SKU), x1 (VG SKU)
- Max. Transfer Rate: 300 MB/s
- Channel: 3
- Mode: ATA 100/66/33
- Channel: 1 (Supports up to 2 IDE devices; Master device is alternative for CF socket)
- USB 2.0: 8 ports by pin header (VG SKU); 8 ports by pin header and 1 port on bracket I/O (G2 SKU)
- Serial: 2 RS-232 onboard pin-headers, plus four ports of RS-485 with auto-flow control by module
- Parallel: 1 (EPP/ECP)
- GPIO: 1 (8-bit)
- FDD: 1
- PS/2: 1 (for mouse and keyboard, Y cable is included in the package)
- Output System: reset
- Interval: Programmable, 1~255 sec/min
- Audio: Output Intel High Definition audio interface (requires an audio extension module, P/N: PCA-AUDIO-HDA1E)
- Configuration: Intel Atom D525 CPU 1.8 GHz + DDR3 1333 2G x2 SODIMM; Storage: One SATA HDD
- Voltage: +12 V +5 V +3.3 V +5 VSB -12 V -5 V
- Current: 0.44 A 3 A 0 A 0.15 A 0 A 0 A
- Configuration: Atom N455 CPU 1.66 GHz + DDR3 1333 1G x2 SODIMM; Storage: One SATA HDD
- Voltage: +12 V +5 V +3.3 V +5 VSB -12 V -5 V
- Current: 0.16 A 2.1 A 0 A 0.13 A 0 A 0 A
- Operating Temperature:
- Non-Operating Temperature:
- Dimensions: 338 mm (L) x 122 mm (W) (13.3″ x 4.8″)
Bus
Memory
Graphics
(G2 SKU only, supports single channel 18-bit LVDS)
VGA: Supports up to SXGA 1400 x 1050 @ 60 Hz for Intel Atom N455 VG SKU, up to 2048 x 1536 @ 60 Hz
for Atom D525 G2 SKU
LVDS: Supports 18-bit single channel and up to WXGA 1366 x 768 or 1280 x 800 (G2 SKU only)
Ethernet
SATA 2
EIDE
I/O Interface
(optional, Advantech P/N: PCA-COM485-00A1E)
Watchdog Timer
Miscellaneous
Power Requirement
Environment
0 ~ 60° C (32 ~ 140° F)
(Operational humidity: 40° C @ 85% RH
Non-Condensing)
-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Physical
