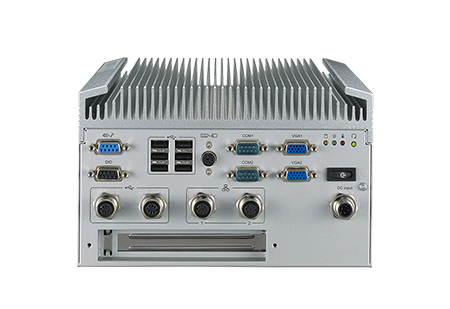

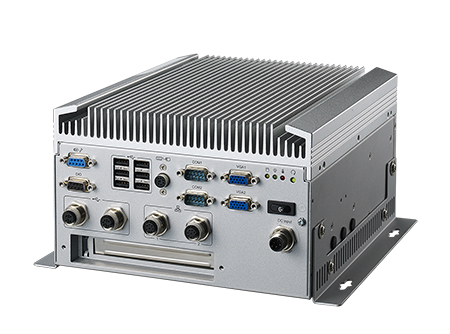

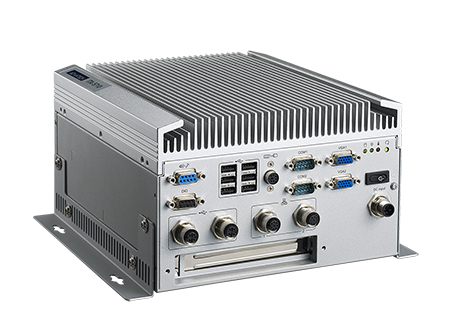

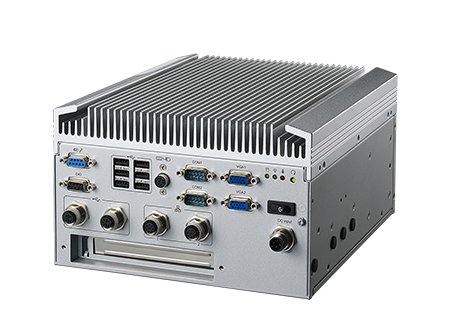

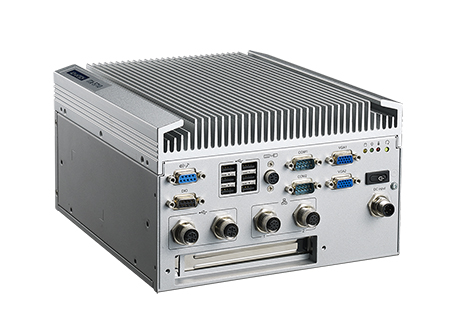

    ITA-5710 Intel® Atom D525 Fanless Compact System with 3 x M12 GigaLAN, 2 x M12 USB and Dual Display Fully compliant with EN 50155

    £1,117.00 excl. vat

    ITA-5710 Intel® Atom D525 Fanless Compact System with 3 x M12 GigaLAN, 2 x M12 USB and Dual Display Fully compliant with EN 50155

    Out of stock

    SKU: ITA-5710 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • Fanless computer for railway vehicle applications, fully compliant with EN 50155
    • ƒƒ Satisfy temp. standard: EN 50155 Tx (-40 ~ 70° C) and IEC 61373 body mount class B
    • ƒƒ Compliant with EN 50121-3-2 EMC test standard
    • ƒƒ Ruggedized connectors (M12) used for communication and power ports
    • ƒƒ Optional PCI/Mini PCIe slots for expansion
    • ƒƒ Support Easy-swap HDD/SSD/CF module


      System Chipset

    • CPU: Intel® Atom™ D525
    • Max Speed: 1.8 GHz
    • L2 Cache: 1 MB
    • Chipset: Intel ICH8-M
    • BIOS: AMI SPI 16 Mb

      • Memory

    • Technology: Single channel DDR3 800
    • Max. Capacity: Onboard 2GB

      • Display

    • Chipset: Embedded Gen3.5+ GFX Core, Frequency 400 MHz
    • VRAM: Shared system memory up to 256 MB SDRAM
    • Dual Display:

      • 2 x VGA or VGA + LVDS (Optional)
      Single Channel Max: 2048 x 1536 @ 60Hz
      Dual Channel Max: 1366 x 768 @ 60Hz

    • LVDS: Support 18-bit single channel up to 1366 x 768 @ 60 Hz (Optional)

      • Ethernet

    • Controller: Intel i210-IT
    • Interface: 10/100/1000 Mbps
    • Connector: 2 x M12 A-coded(F) 8-pin

      • Storage

    • HDD/SSD: 1 x 2.5″ SSD/HDD Easy-Swap bay
    • Others: 1 x CompactFlash socket for Type I/II CompactFlash disk on M/B

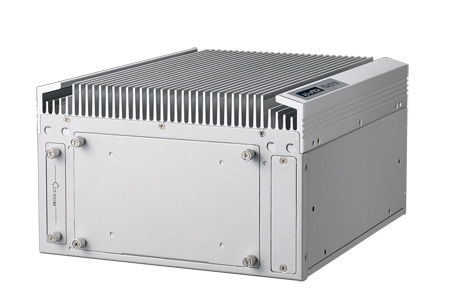

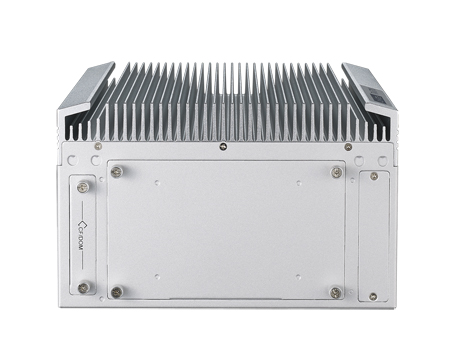

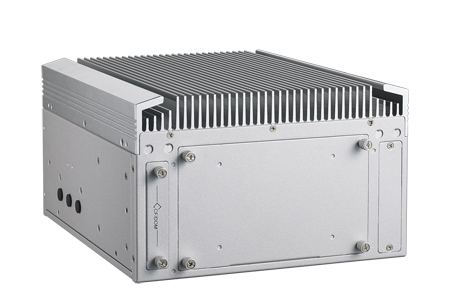

      • 1 x Easy-Swap CF/SATA DOM Module

      I/O (Others)

    • USB: 2 x USB2.0 with M12 A-coded(F) 4-pin

      • 6 x USB2.0 with Type A

    • Serial Port: 2 x DB9, RS-232/422/485, Support auto-flow control
    • DIO: 1 x DB9, 8-bit
    • VGA: 2 x DB15
    • Audio: 1 x DB9, 1 x Speaker-out with 2 x 4W Amp., 1 x Mic-in
    • PS2: 1 x PS2

      • Expansion Slot

    • Mini PCIe: 1 x Mini PCIe Socket (Full size)

      • 1 x Mini PCIe Socket (Full/Half size)

    • PCI: 1 x PCI32 33Mhz Slot

      • LED & Button

    • LED: 1 x Power, 1 x Storage, 1 x Alert
    • Button: 1 x Power on/off Switch

      • 1 x Reset Button

      Power

    • Input Voltage: DC 24V input compliant with EN50155 class S2/C1 (Optional DC 48/72/110V input)
    • Connector: 1 x M12 A-coded(M) 4-pin

      • Watchdog Timer

    • Output: System reset
    • Interval: Programmable 1~255 sec/min

      • Environment

    • Operating (with Industrial SSD/CF): Temperature: -40 ~ 70° C
    • Non-Operating Temperature: -40 ~ 85° C
    • Humidity: 5% ~ 95% @ 40° C

      • Mechanical

    • Dimension (W x H x D): 210 x 129 x 240 mm

      • 253 x 133 x 240 mm (with Supporting-angels)

    • Install: Desktop/Wall-mounting

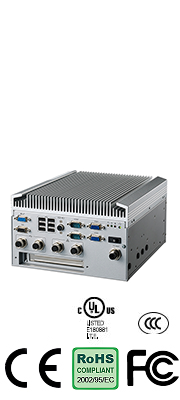

      • Certification

    • EMC: CE/FCC Class A, CCC
    • Safety: UL, CB, CCC

      • EN 50155 Compliance

    • Ambient Temperature: EN 50155 Tx (-40 ~ 70° C)
    • Shock and Vibration :IEC 61373 body mount class B
    • Interruptions of Voltage Supply: Class S2
    • Supply Change Over: Class C1
    • EMC: EN 50121-3-2
