View DatasheetITA-3630 Intel® 3rd Generation Core™ i Processor Fanless System for Road Surveillance
Call for Price

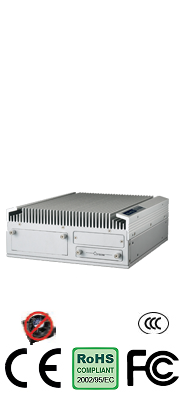

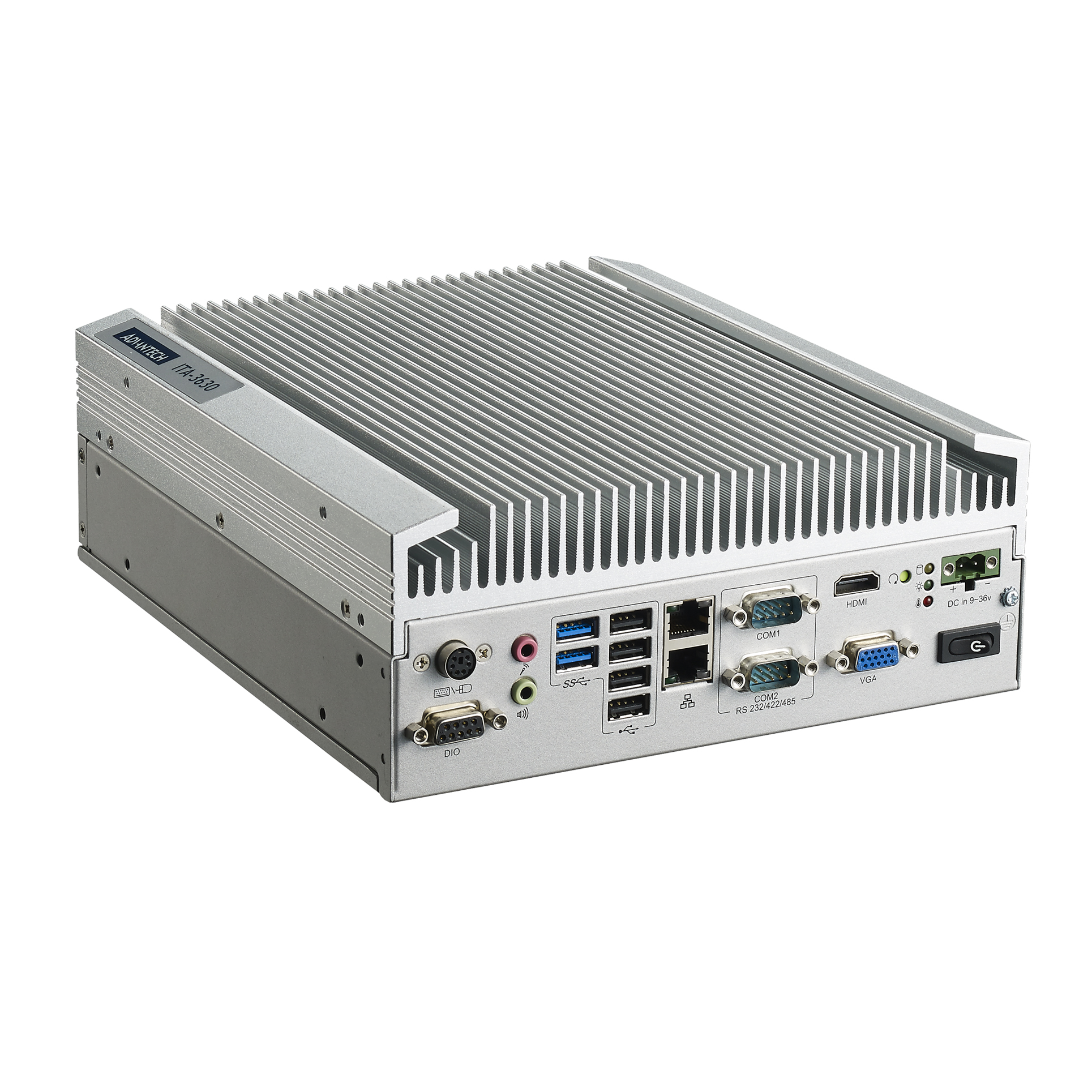

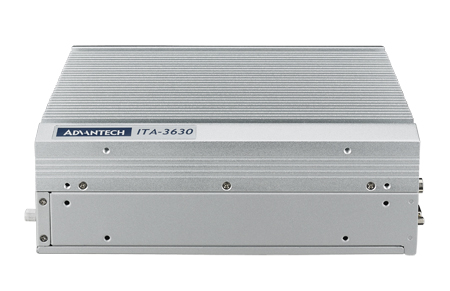

ITA-3630 Intel® 3rd Generation Core™ i Processor Fanless System for Road Surveillance
- Supports Intel® 3rd Generation Core™ i7/i5/i3 BGA type CPU
- ƒƒ Intel® HM76 PCH
- ƒƒ Support wide temperature -25° C ~ 60° C
- ƒƒ Supports three independent displays
- ƒƒ 2 x 2.5″ HDD or 1 x 2.5″ HDD+1 x Easy-swap CF/DOM
- ƒƒ Built-in fixed bracket with 2 x USB2.0 port for Dongle
- ƒƒ Supports 9 ~ 36V wide range DC input
- Max Speed: 2.5 GHz
- L3 Cache: 6 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- Max Speed: 2.7 GHz
- L3 Cache: 4 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- Max Speed: 2.4 GHz
- L3 Cache: 3 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- Max Speed: 2.20 GHz
- L3 Cache: 2 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- Technology: DDR3 1333/1600, non-ECC
- On board: memory 4 GB on board
- Socket: 1 x 204-pin SODIMM (up to 8GB per DIMM)
- Maximum Capacity: 12 GB
- Chipset: Intel Integrated Graphics HD4000, support Direct x11
- VGA: 1 x DB15, max resolution up to 2048 x 1536
- HDMI: 1 x HDMI, support HDMI1.4 standard, max to 1920 x 1200 @ 60Hz
- LVDS: Built-in interface, support 48-bit dual channel
- eDP: Box Header on board
- Display Option: Dual Display: VGA+HDMI
- Controller: Intel I210-AT,10/100/1000 Mbps
- Interface: 2 x RJ-45

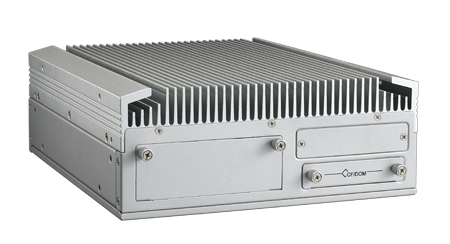

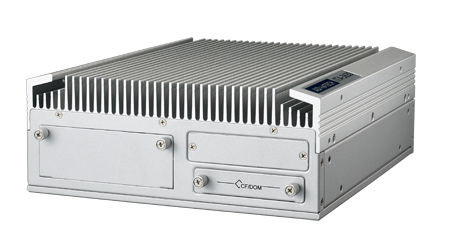

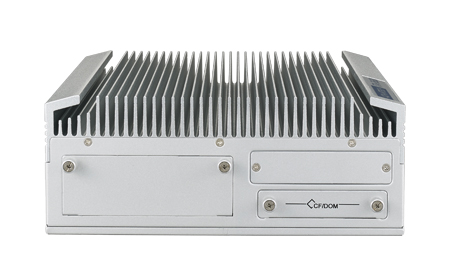

- HDD: Support 2 x 2.5″ HDD or 2.5″ HDD+CF module
- SSD: 1 x internal mSATA
- USB: 2 x USB3.0 & 4 x USB2.0
- Serial Port: 2 x DB9, RS232/422/485 with automatic flow control
- DIO: 1 x DB9, 8-bit
- Audio: 2 (1 x Line-0ut, 1 x Mic-in)
- PS2: 1 x PS2
- LPT: 1 x DB26 (Front panel, option)
- Mini PCIe: 1 x internal Mini PCIe (Full-Size)
- LED Power: x 1/Storage x 1/Fault x 1
- Button: Power on/off Switch x 1
- Input Voltage: DC wide range 9V ~ 36V input
- Interface: 2-pin terminal block
- Output: System reset
- Interval Programmable: 1~255 sec/min
- Vibration:
- Operating Temperature: CF/SSD/mSATA, 0.7m/s air flow: -25 ~ 60° C HDD: 0 ~ 40° C
- Storage Temperature: -40 ~ 85° C
- Humidity: 20 ~ 95% @ 40° C (non-condensing)
- Vibration: CF/SSD: 2 Grms @ 5 ~ 500 Hz, Random 1 Oct./
- Shock: 20 G half sine, 11 ms HDD: 20 G half sine, 11ms IEC 60068-2-27
- Dimension (W x H x D): 253 x 86.6 x 240 mm
- Install: Desktop/Wall-mounting
- Weight: 4kg
- EMC: CE/FCC Class A, CCC, BSMI
- Safety: UL,CCC,BSMI
System Chipset: CPU: Intel i7-3555LE Processor
System Chipset: CPU: Intel i5-3610ME Processor
System Chipset: CPU: Intel i3-3210ME Processor
System Chipset: CPU: Intel Celeron 1020E Processor
Memory

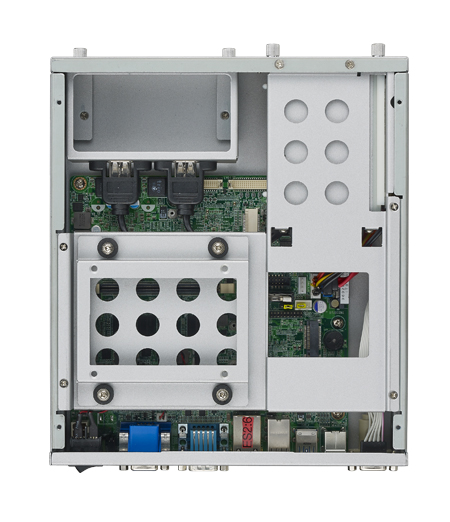

Note: SODIMM and HDD Tray has mechanism interferences, only 1 x HDD or 1 x CF can be used when you request to expand memory size
Display
Convert to real I/O via cable (Front panel, Option)
Triple Display: VGA+HDMI+eDP
Ethernet
Storage

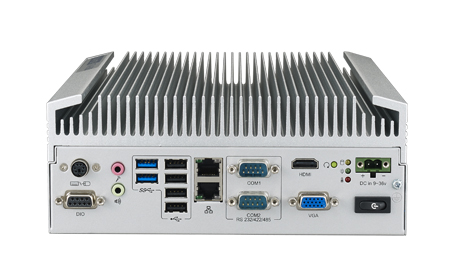

I/O
Expansion Slot
LED & Button
Reset button x 1
Power
Watchdog Timer
Environment
CF/SSD: 2G @ 5 ~ 500 Hz, Random 1Oct./min,
1Hr/axis
2.0Grms @ 5 ~ 500 Hz, Sine 1Hr/axis
HDD: 2G @ 5 ~ 500 Hz, Random 1Oct./min,
1Hr/axis
1.0Grms @ 5 ~ 500Hz, Sine 1Hr/axis
IEC 60068-2-6
IEC 60068-2-64
IEC 60068-2-1/ IEC 60068-2-2/
IEC 60068-2-78
min, 1hr/axis
HDD: 1 Grms @ 5 ~ 500 Hz, Random 1 Oct./min,
1hr/axis IEC 60068-2-64
Mechanical Features
Certiï¬cations
