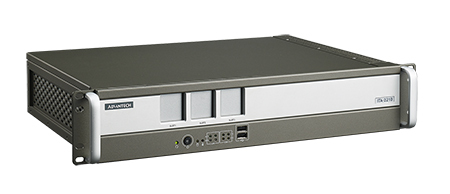

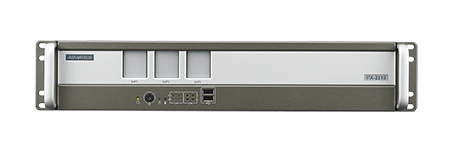

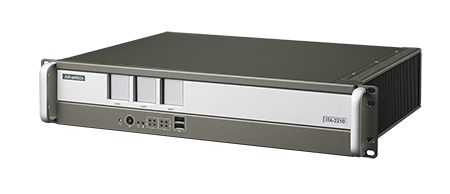

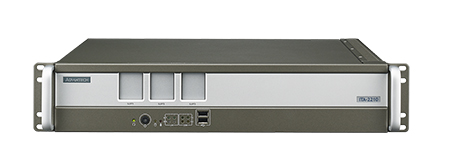

    ITA-2210 Intel® Atom™ D525 2U Fanless Rackmount System with 3 ITAM Module

    SKU: ITA-2210 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • ƒ Built-in Intel® Atom™ D525, 1.8 GHz CPU
    • ƒƒ Onboard 2GB DDR3 Memory
    • ƒƒ 2U Fanless Rackmount System

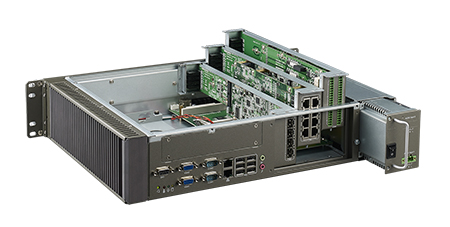

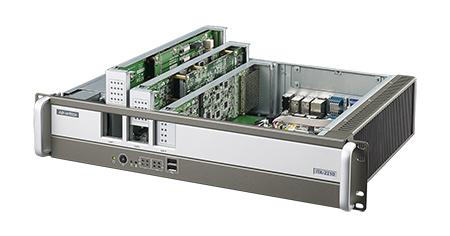

    • ƒƒ Support 3 ITAM Module for I/O Expansion
    • ƒƒ Support Easy-Swap Power Module
    • ƒƒ 8 USB 2.0
    • ƒƒ Dual VGA Display
    • ƒƒ Compliance with railway applications (EN50121-4)

      Processor System

    • CPU: Intel® Atom™ D525 Processor
    • Max Speed: 1.8 GHz
    • L2 Cache: 1 MB
    • Chipset: Intel® ICH8-M
    • BIOS: AMI® SPI 16 Mb

      • Memory

    • Technology: Single Channel DDR3 800
    • Max. Capacity: Onboard 2 GB

      • Graphics

    • Chipset: Embedded Gen3.5+ GFX Core, Frequency 400 MHz
    • VRAM: Shared System Memory up to 256 MB SDRAM
    • Dual Display:

      • 2 x VGA
      Single Channel Max: 2048 x 1536 @ 60Hz
      Dual Channel Max: 1366 x 768 @ 60Hz

      Ethernet

    • Interface: 10/100/1000 Mbps
    • Controller: 2 x Intel® 82583V
    • Connector: 2 x RJ-45

      • Storage

    • SSD: 1 x Compact Flash
    • HDD: 1 x 3.5″ or 2 x 2.5″ HDD bay

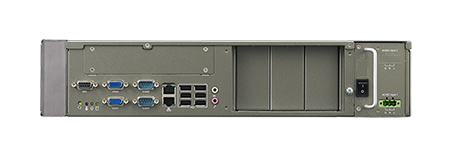

      • I/O Interface

    • VGA: 2
    • LAN: 2
    • USB: 8 x USB 2.0
    • Serial: 2 x DB9 (RS-232/422/485)
    • Digital I/O: 1 x 8-ch TTL GPIO
    • Audio: 1 x Speaker-out with 2 x4W Amp, 1 x Mic-in

      • Expansion Slots

    • ITAM Slot: 3
    • PC104+: 1
    • Mini PCIe: 1

      • Power Module

    • Single Power Module:

      • Input Range: AC 100 ~ 240V or DC 110V
      Connector: 1 x 3pin 5.08mm Terminal Block
      Wattage (60° C): 110 W

    • Dual Power Module

      • Input Range: Dual AC 100 ~ 240V or DC 110V
      Connector: 2 x 3pin 5.08mm Terminal Block
      Wattage (60° C): 110W (Load Balance)

      Watchdog Timer

    • Output System: Reset
    • Interval Programmable: 1~255 sec/min

      • Environment

    • Operating(with SSD) Temperature: -25 ~ 60° C
    • Operating (with HDD) Temperature: 0 ~ 40° C
    • Non-Operating Temperature: -40 ~ 85° C

      • Physical Characteristics

    • Dimensions (W x H x D): 483 x 88 x 325 mm

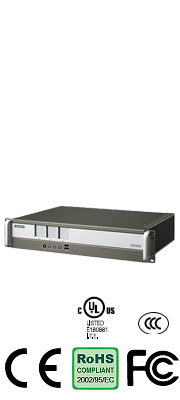

      • Certification

    • EMC: CE/FCC Class A
    • Safety: UL,CB,CCC
    • Compliance: EN 50121-4,Level 4 EMS
