View DatasheetITA-2000 Intel® Atom N270 2U Fanless System 4 x LAN, 18 x COM, PC104+
Call for Price

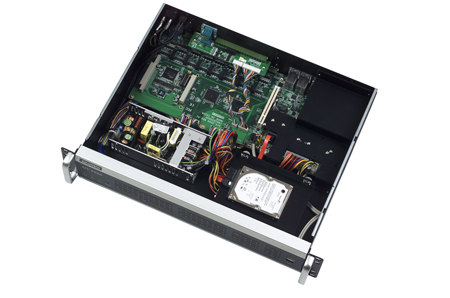

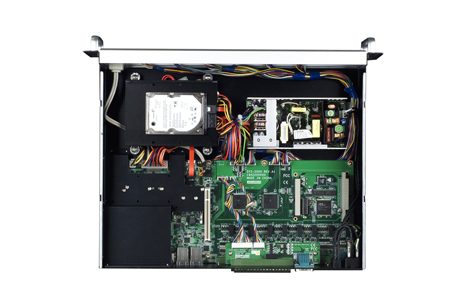

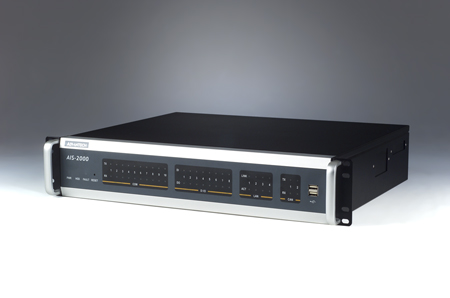

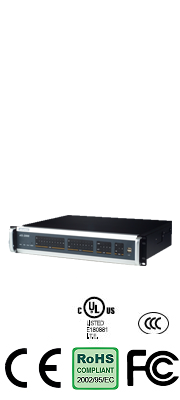

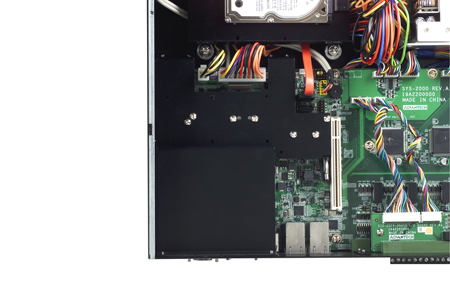

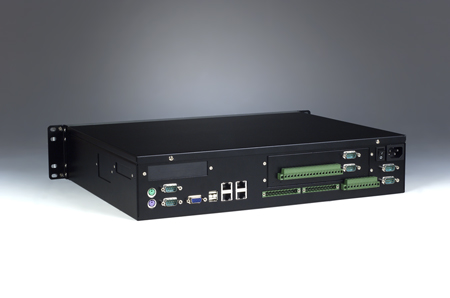

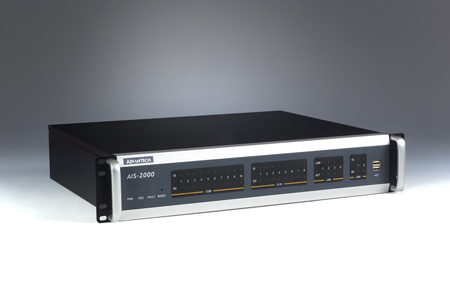

ITA-2000 Intel® Atom N270 2U Fanless System 4 x LAN, 18 x COM, PC104+
SKU: ITA-2000
Category: Intelligent Transportation Systems
- Intel® AtomN270,1.6GHz CPU
- 2U Fanless System
- 2 x RS232 and up to 16 x RS232/422/485 COM port
- Supports auto flow control and 128byte FIFO
- Up to 8 x 10/100/1000 Base-T Ethernet
- 4 x USB2.0 and 1 x PC104+
- Supports CF card and 2.5″ or 3.5″ SATA HDD
- Process
- CPU: Intel Atom N270
- Max Speed: 1.6GHz
- Chipset: Intel 945GSE/ICH7-M
- BIOS: Award 4-Mbit Flash BIOS
- Memory: On board 1G DDR2 533/667 DRAM
- Chipset: Intel GMA 950
- Interface: CRT
- Controller: Intel 82574L
- Interface: 10/100/1000M Base-T
- Connector: 4 x RJ45 (Optional another 4 x RJ45)
- Controller: Oxford OX16PCI954
- Ports: Max to 18
- Connector:
- Speed: 50~115.2kbps
- Watch Dog: 255 levels set by software
- PS/2: 1 x Keyboard/Mouse
- USB2.0: 4 x USB ports (Front x 2, Rear x 2)
- PC104+: 1
- CAN(Optional): CAN 2.0B (Controller: SJA-1000)
- DIO(Optional): 16bit DI/O

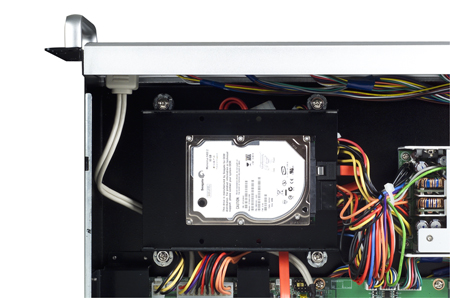

- HDD: 1 x Bracket for 2.5″ or 3.5″ HDD
- CF: 1 x CF socket for Type I/II CF
- Input Voltage: AC100 ~ 240V, DC 110 ~ 220V
- Output Power: 120 W
- Operating Temp: 0 ~ 45° C
- Operating Humidity: 95% @ 40° C
- Vibration: With CF: 5Grms, IEC 60068-2-64,5~500Hz, 1Oct./min,1hr/axis
- Shock: With CF: 50Grms, IEC 60068-2-27, half-sine, 11ms
- Dimension: 482 x 88 x 350 mm(19″ x 3.46″ x 12.8″)
- Weight: 9.2 kg (20.24 lb)
Graphic
Ethernet

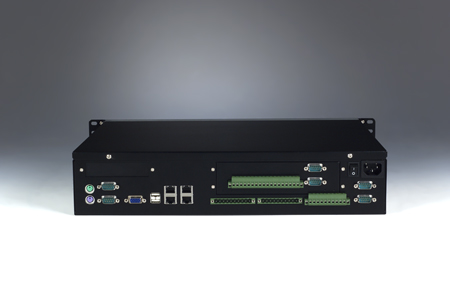

COM ports
2ports RS232 with DB9(COM1~2)
8 ports RS232/422/485 with Terminal Block (COM3~10 w/2KVDC isolation)
8 ports RS232/422/485 with Terminal Block
(COM11~18 w/2KVDC isolation, Optional)
Others
Storage

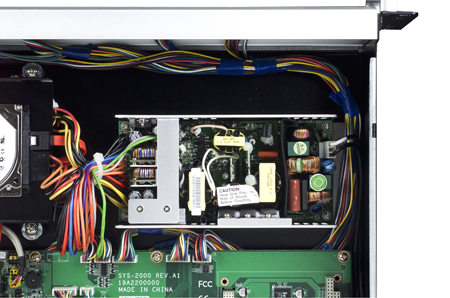

PSU
Environment
Mechanical
