ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN
    16 COM ports and Expansion Slots

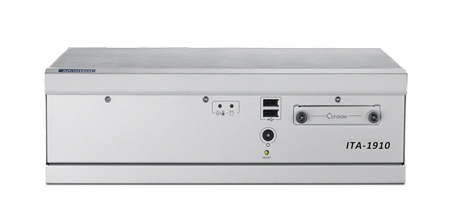

    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots - Image 3

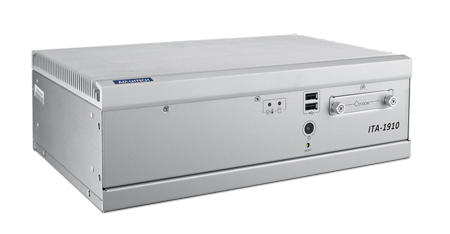

    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots - Image 4

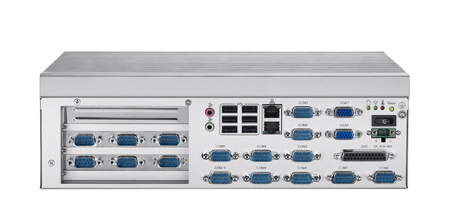

    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots - Image 5
    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN
    16 COM ports and Expansion Slots

    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots

    Call for Price

    ITA-1910 Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots

    SKU: ITA-1910 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • Fanless, Intel® Atom™ D525, 1.8 GHz Dual Core Compact System
    • ƒƒ Supports 9 ~ 36 V wide range DC input
    • ƒƒ Supports up to 2 x GbE, 8 x USB 2.0, 16 x COM ports
    • ƒƒ Serial ports support RS-232/422/485 with automatic flow control
    • ƒƒ PCI/PCIe expansion slots
    • ƒƒ Supports up to 24 Channel 24/48 bits Digital I/O
    • ƒƒ Onboard DDR3 memory up to 2GB and optional NVRAM
    • ƒƒ Front-accessible Easy Swap CF/DOM Module


      Processor System

    • CPU: Intel Atom Dual Core D525
    • Max Speed: 1.8 GHz
    • L2 Cache: 1 MB
    • Chipset: Intel ICH8-M
    • BIOS: AMI SPI 16 Mb

      • Memory

    • Technology: Single channel DDR3 800
    • Max. Capacity: Onboard 1 GB (max up to 2 GB)

      • Graphics

    • Chipset: Embedded Gen3.5+ GFX Core, Frequency 400 MHz
    • VRAM: Shared system memory up to 256 MB SDRAM
    • Multi display:

      • 2 x VGA or VGA + LVDS (Optional)
      Single Channel Max: 2048 x 1536 @ 60Hz
      Dual Channel Max: 1366 x 768 @ 60Hz

    • LVDS: Support 18-bit single channel up to 1366 x 768 @ 60Hz (Optional)

      • Extension Graphics (Optional)

    • Chipset: SMI SM750 GPU
    • VRAM: On chip 16MB
    • Multi display: 2 x VGA
    • Max Resolution: Up to 1920 x 1440 @ 60Hz

      • Ethernet

    • Interface: 10/100/1000 Mbps
    • Controller: 2 x Intel 82583V
    • Connector: 2 x RJ-45

      • Storage

    • NVRAM: 1 Mb FRAM (Optional)
    • CF: 1 x CompactFlash socket for Type I/II CompactFlash disk

      • 1 x Easy Swap SATA DOM CompactFlash Module

    • HDD: Support 2.5″ HDD (Optional)

      • I/O Interface

    • VGA: 2
    • LAN: 2
    • USB: 8
    • Serial: 16 x RS-232/422/485 Serial ports with automatic flow control
    • Digital I/O: 12-ch GPI, 12-ch GPO (Option another 12-ch GPI, 12-ch GPO)
    • Audio: 1 x Speaker out with 2x4w amplifier, 1x Mic in

      • Expansion Slots

    • PCI 32-bit: 1
    • PCIe x 1: 2 (w/o 6 COM I/O Card)
    • Mini PCIe: 1

      • Power

    • Power Input Voltage: DC 9 V ~ 36 V input

      • Watchdog Timer

    • Output System: reset
    • Interval: Programmable 1~255 sec/min

      • Environment

    • Temperature Operating (W/O HDD): -25 ~ 60° C
    • Temperature Operating (With HDD): 0 ~ 40° C
    • Temperature Non-Operating: -40 ~ 85° C

      • Physical Characteristics

    • Dimensions (W x H x D): 315 x 190 x 100 mm
