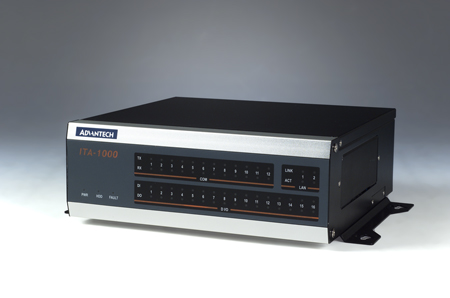

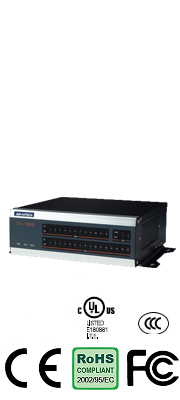

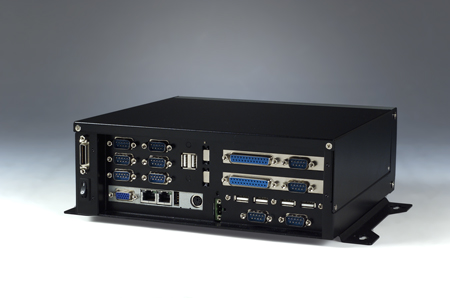

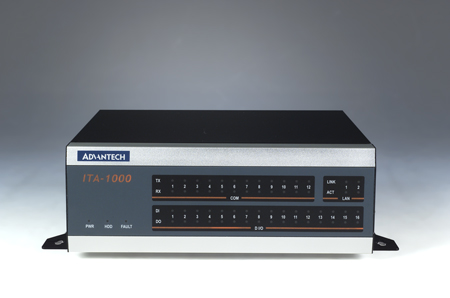

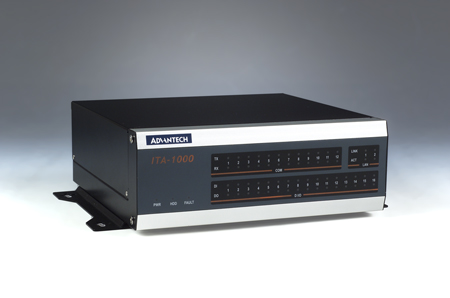

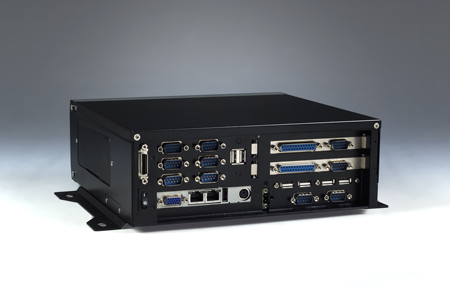

    ITA-1000 Intel® Atom N270 Fanless Compact System with Dual LAN, 12 x COM, 16 x DI, 16 x DO

    £0.00 excl. vat

    ITA-1000 Intel® Atom N270 Fanless Compact System with Dual LAN, 12 x COM, 16 x DI, 16 x DO

    Out of stock

    SKU: ITA-1000 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • Built-in Intel® Atom™ N270, 1.60 GHz CPU
    • ƒƒ 6 x RS-232 serial and up to 6 x RS-422/485 ports with automatic flow control
    • ƒƒ 32 Digital I/O (16-ch DI/16-ch DO)
    • ƒƒ 2 x 10/100/1000 Base-T Ethernet ports
    • ƒƒ 7 x USB 2.0 Ports
    • ƒƒ Supports internal CF card and 2.5″ SATA HDD
    • ƒƒ Dual display VGA + DVI (LVDS optional)
    • ƒƒ One PCIe x4 and one PCI 32-bit slot for extension
    • ƒƒ Supports audio function with optional audio kit

      Processor System

    • CPU: Intel Atom N270
    • Max: 1.6 GHz
    • L2 Cache: 512 KB
    • Chipset: Intel 945GSE + ICH7-M
    • Bios: Award SPI 8MB or 8-Mbit
    • Front Side Bus: 533/667 MHz

      • Expansion Slot

    • PCI, PCIe: 1 x PCI BUS (32-bit/33 MHz) (ITA-1200 only)

      • 1 x PCIe x 4 (ITA-1200 only)

      Memory

    • Technology: Single channel DDR2 SODIMM 400/533
    • Max.Capacity: 2 GB
    • Socket: Yes

      • Graphics

    • Embedded: Intel GMA950 sharing 224 MB system memory
    • LVDS: Supports 24/ 48-bit up to UXGA 1600 x 1200 pixels
    • Dual display: VGA + DVI/LVDS (LVDS optional)

      • Data Storage

    • NVRAM: 512 KB NVRAM onboard

      • Ethernet

    • Interface: 10/100/1000 Base-T
    • Controller: Intel 82574L
    • Connector: RJ45 x 2

      • Storage Drive Bay

    • HDD: 1 x SATA drive bay for 2.5″ harddisk
    • SSD: 1 x CompactFlash socket for Type I/II CompactFlash disk

      • I/O Interface: ITA-1000

    • Display: 1 CRT + 1 DVI/LVDS
    • LAN: 2
    • USB: 7
    • Digital I/O: 32-ch GP I/O for DI and DO
    • Serial:

      • 10 ports
      6 x RS-232, 2 x RS-232/422/485,
      2 x RS-422/485

    • PS/2: 6-pin (2.54mm) wafer box connector for keyboard only
    • Audio: –

      • I/O Interface: ITA-1100

    • Display: 1 CRT + 1 DVI/LVDS
    • LAN: 2
    • USB: 7
    • Digital I/O: 32-ch GP I/O for DI and DO – –
    • Serial:

      • 12 ports
      6 x RS-232, 4 x RS-232/422/485,
      2 x RS-422/485

    • PS/2: 6-pin (2.54mm) wafer box connector for keyboard only
    • Audio: –

      • I/O Interface: ITA-1200

    • Display: CRT + 1 DVI/LVDS
    • LAN: 2
    • USB: 7
    • Digital I/O: –
    • Serial:

      • 8 ports
      6 x RS-232, 2 x RS-422/485

    • PS/2: 6-pin (2.54mm) wafer box connector for keyboard only
    • Audio: PCA-AUDIO-HDA1E (Optional)

      • Power

    • Input Voltage: DC 10V ~ 24V

      • Watchdog Timer

    • Output: System reset
    • Interval: Programmable 1~255 sec/min

      • Environment

    • Operating Temperature: 0 ~ 50° C
    • Non-operating Temperature: -20 ~ 70° C (-4 ~ -150° F)

      • Physical Characteristics

    • Dimensions (W x H x D): 250 x 215 x 88 mm
