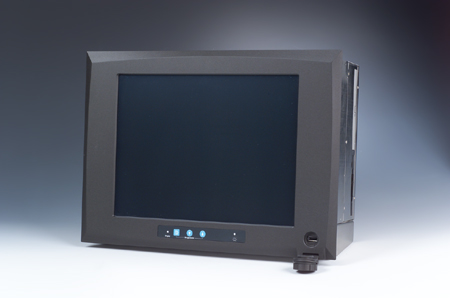

IPPC-9151G 15″ XGA LED backlight TFT LCD Intel® Core™ i7/i5/i3 Industrial Panel PC with 1 x PCIe Slot
Call for Price
IPPC-9151G/IPPC-9171G is a fully functional computer system with front USB access, with Intel® mobile Core i7-2710QE 2.1GHz/Core i5-2510E 2.5 GHz/Core i3-2330E 2.2 GHz /Celeron® B810 1.6 GHz processors up to 6 MB L3 cache and DDR3 SO-DIMM 1066/1333 up to 8 GB and a resolution up to 1024 x 768 to meet the demands of today’s high-end industrial software. The IPPC-9151G/IPPC-9171G is a rugged unit with an aluminum panel,15″/17″ TFT LCD with LED backlight, a stainless steel structure and a Pcie slot. The IPPC-9151G/9171G is rugged enough to handle the toughest industrial operating environments. With optional mounting accessories, from panels to racks, it can be mounted anywhere.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Core™ i7/i5/i3 Celeron® μFC-PGA988 processor with Intel® QM67
- 15″ XGA/17″ SXGA LED backlight LCD with low power consumption
- Front access USB connector
- Supports 1 xPCIe x1 or 4 (Gen2) (PCI optional)
- Heavy-duty stainless steel chassis with aluminum front panel
- Strengthened glass protects the front panel from shock damage and s IP65
- Supports dual display of HDMI, LVDS, VGA
- Supports 1 x 2.5″ SATA II or SATA III HDD and 1 x CFast
- Hard anodic coating to prevent panel abrasion and acid corrosion
- Supports embedded software APLs and Utilities
chipset
compliant
- General
- BIOS: AMI EFI 64 Mbit SPI

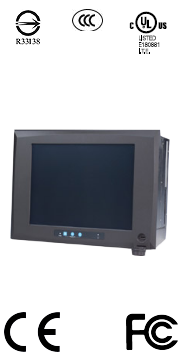

- Certification: BSMI, CCC, CE, FCC, UL
- Cooling System: 2 x 10.1 CFM fans w/50,000 hrs MTBF
- Dimensions (W x H x D):
- Disk Drive Bay: Supports 1 x 2.5″ SATA II or SATA III HDD
- Enclosure: Stainless steel back case, 10 mm aluminum front panel
- Mounting: Panel, rack
- Power Input: 100~240 VAC @ 4A 50~60hz
- Power Supply: 180 W, MTBF: 100,000 hrs
- Weight (Gross): IPPC-9151G: 10.52 Kg (23.19 Ibs)
- CPU: Supports uFC-PGA988 Intel® mobile Core i7-2710QE
- Chipset: Intel® 6 series chipset (QM67)
- Audio Ports: Mic-in, Line-out, Line-in
- Expansion Slots: Supports 1 x PCIe x1 or x4 (PCI optional)
- PS/2: 1 x keyboard and 1 x mouse
- LAN: 2 x 10/100/1000 Mbps
- Memory: 2 x 204 pin DDR3 1066/1333 SODIMM sockets
- Cfast: 1 x CFast slot

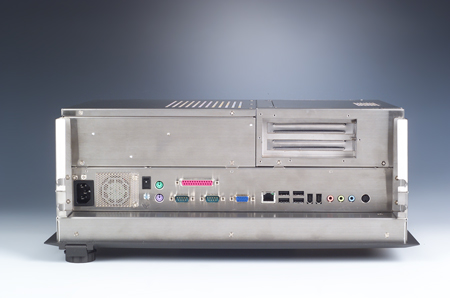

- I/Os: 1 x VGA; 1 x HDMI; 5 x USB 2.0 (one at front);
- LCD Display Type: IPPC-9151G: XGA TFT LCD with LED Backlight
- Display Size: IPPC-9151G: 15″
- Max. Resolution: IPPC-9151G: 1024 x 768
- Max. Colors: IPPC-9151G: 16.2M or 256K Color
- Viewing Angle (H/V°): IPPC-9151G: 160/140
- Luminance: IPPC-9151G: 350 cd/m²
- Backlight Life: 50,000hrs
- Contrast Ratio: IPPC-9151G: 700:1
- Lifespan: 36 million with a silicone rubber of R8 finger, writing
- Light Transmission: > 80%
- Type: Analog resistive (5-wire)
- Humidity: 5 ~ 85% @ 40°C (non-condensing)
- Ingress Protection: Front panel: IP65
- Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Vibration Protection: 5 ~ 500 Hz, 1 GRMS random vibration
IPPC-9151G: 428 x 310 x 96.5 mm (16.35″ x 12.2″ x 3.79″)
System Hardware
2.1 GHz/Core i5-2510E 2.5 GHz/Core i3-2330E
2.2 GHz/Celeron® B810 1. 6GHz processor
supports up to 8GB (2 x 4GB)
4 xRS-232
LCD Display
Touchscreen
rate is by 250g at 2 times/s
Environment
