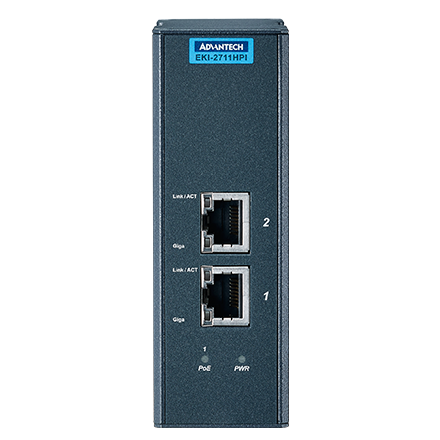

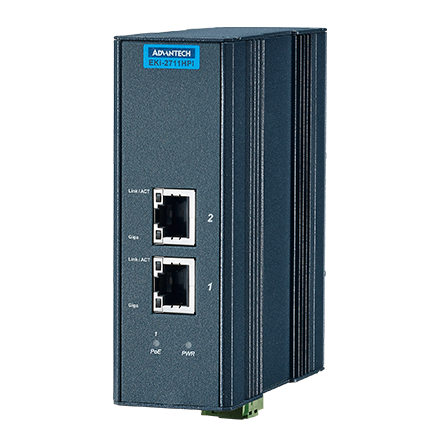

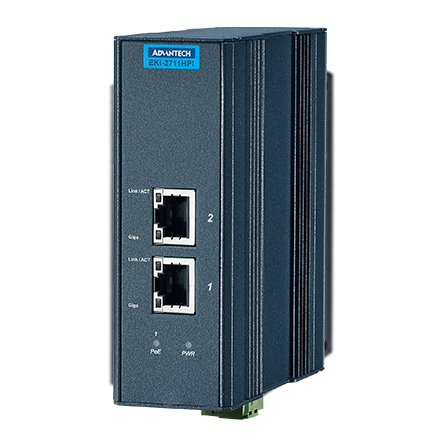

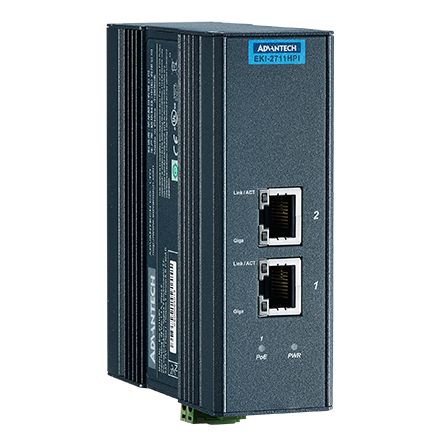

EKI-2711HPI 1GE PoE Injector, IEEE802.3af/at,up to 60W 48VDC, -40~75°C
£278.00 excl. vat
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2711HPI is compliant IEEE 802.3af/at and inject up to 60W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C.
Please click the link below to open the PDF datasheet
View Datasheet -
- Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
- IEEE 802.3af/at compliant
- Power input 48 VDC, Inject power up to 60W
- Provides slim size and DIN-rail/Wall mount with IP31 metal mechanism
- Supports operating temperatures from -40 to 75°C
Communications
-
- Standard: IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab
- LAN: 10/100/1000Base-T (X)
- Transmission Distance: Ethernet: Up to 100 m
- Transmission Speed: Up to 1000 Mbps
Interface
-
- Connectors: PoE OUT: RJ45
DATA IN: RJ45
2-pin removable screw terminal
-
- LED Indicators: PWR, PoE Status, Link/Activity
Power
-
- Power Consumption: Max. 63.5 W (Full load PoE+)
- Power Input: 48 VDC (Single input)
- Power Output: 60W
Mechanism
-
- Dimensions (W x H x D): 36.7 x 108.4 x 103.5 mm (1.44″ x 4.27″ x 4.07″)
- Enclosure: IP31, Metal shell with solid mounting kits
- Mounting: DIN-rail, Wall
Protection
-
- Power Reverse: Present
- Overload current: Present
Environment
-
- Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
- Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
- Operating Humidity: 10 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- MTBF: 730,337 hours
Certification
-
- Safety: UL/cUL 508 Class I, Division 2, Groups A, B, C and D
- EMI: CE, FCC Class A
- EMS: EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
-
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Patent: http://www.advantech.com/legal/patent
