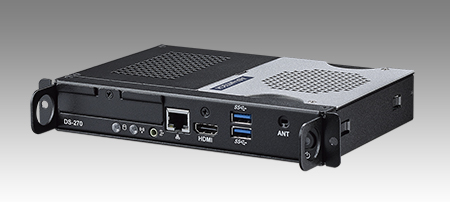

DS-270 OPS Intel Celeron J1900 Quad-Core SoC with Advanced NVIDIA GeForce GT730M Graphics up to 4K resolution
Call for Price
OPS Intel Celeron J1900 Quad-Core SoC with Advanced NVIDIA GeForce GT730M Graphics up to 4K resolution
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Celeron® J1900 low power Quad-Core™ SoC platform
- Integrated NVIDIA GeForce GT 730M graphic module for UHD/FHD playback
- OPS (Open Pluggable Standardization) compliant design supports simultaneous dual-display output
- Slot-in integration, easy maintenance
- Content management software built-in
- Processor System
- CPU: Intel Celeron J1900 QuadCore SoC 2.00GHz
- System Chipset: Integrated in CPU
- BIOS: AMI uEFI 64M bit
- Technology: 2 x DDR3L 204-pin SO-DIMM*
- Max. Capacity: 8 GB (up to 4GB per each SO-DIMM)
- Chipset: NVIDIA GeForce GT730M
- Memory Size: Independent display memory 1024MB
- Resolution (Chipset support): HDMI up to 3840 x 2160 @ 30Hz (Front);
- Video format: H.264, VC1, MPEG-1, MPEG-2, MPEG-4 Part 2SP, MPEG-4 ASP, WMV9, DivX3.11
- SATA Interface: 1 x 2.5-inch SATA II HDD/SSD (supports 7mm height only)
- Interface: Gigabit LAN Controller
- Controller: Intel I211
- Connector: 1 x RJ-45

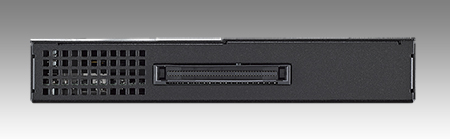

- JAE Connector: 1 (JAE TX25 80-pin)
- HDMI (front): 1
- LAN: 1 (RJ-45)
- USB: 2 (USB 3.0 compliant)
- Audio: 1 x Line-out (supports Jack Sense via OS setting)
- Mini-PCIe (Internal): 1 (full size, support mSATA)
- Management: ACPI 3.0
- Power Consumption: Typical: 11.82W (w/o expansion); Max.: 21.84W (w/o expansion)
- Input Voltage: 12V -24V DC-in (via OPS interconnection)
- Output: Interrupt, system reset
- Interval: Programmable by SUSIAccess
- Dimensions (W x H x D): 200 x 30 x 119 mm (OPS compliant)
- Weight: 1.5 kg (3.3 lb.)
- Operating Temperature: 0° C ~ 40° C (32~104° F) w/ HDD; 0° C – 50° C (32~122° F) w/ SSD
- Relative Humidity: 95% @ 40° C (non-condensing), operating
- Vibration Resistance: 0.2Grms, IEC 60068-2-64, random, 5-500 Hz, 1 Oct./ min, 1hr/ axis (w/ HDD)
- Operating System: Windows 8 (64bit), Windows 7 (64bit), Linux (by project)
- Remote Device Management: SUSIAccess
- System Recovery: Acronis
- Anti-Virus: McAfee
- Electromagnetic: CE, FCC Class B, BSMI, C-Tick
- Safety: UL, CB, CCC, BSMI
Memory
Display
HDMI/ DP up to 3840 x 2160 @ 30Hz (via OPS interconnection)
Storage
Ethernet
I/O Interface
Power Requirement
Watchdog Timer
Physical Characteristics
Environment
Software Development Kit
Certification
