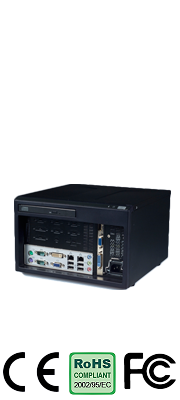

ARK-6610 Compact Chassis for Mini-ITX Motherboard
Call for Price
Compact Chassis for Mini-ITX Motherboard
Please click the link below to open the PDF datasheet
View Datasheet - ARK-6610 with one front I/O expansion slot
- Various cut-outs for COM/DVI/LVDS,USB,S/C-video
- Shockproof drive bay for slim ODD and 3.5″ HDD
- Bottom door to access CF card or Mini-PCIe card
- Support 180W Flex ATX power supply
- Disk Drive Bay
- Slim Optical Drive: 1
- 3.5″ (internal): 1
- COM: 5
- USB: 2
- DVI/LVDS: 2
- S/C-Video: 1
- WLAN Antenna: 1
- Fan: 1 (9 cm / 52.5 CFM)
- Air Filter: Yes
- LED Indicators: Power, HDD, temperature
- Control: Power switch
- Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
- Humidity: 10 ~ 85%, 40° C, non-condensing
- Vibration (5 ~ 500 Hz): 1 Grms
- Shock: 10 G (with 11ms duration, half sine wave)
- Non-operating Temperature: -20 ~ 60° C (-4 ~ 140° F)
- Humidity: 10 ~ 95%, @ 40° C, non-condensing
- Vibration (5 ~ 500 Hz): 2 G
- Shock: 10 G (with 11ms duration, half sine wave) 30 G
- Dimensions (W x H x D): 250 x 156 x 253 mm (9.8″ x 6.1″ x 10″)
- Weight: 4.76 kg (10.47 lb)
I/O Interface
Cooling
Miscellaneous
Environment
Physical Characteristics
