ARK-1550 Intel® 4th Generation Core i5 4300U/ Celeron 2980U SoC Slim and Panel Mountable Fanless Box PC
Call for Price

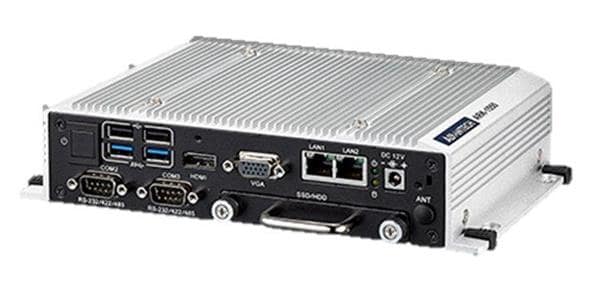

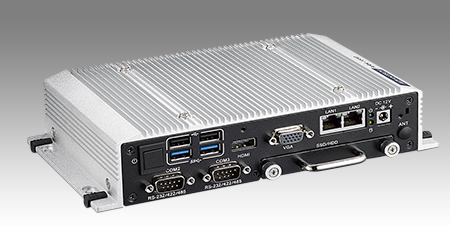

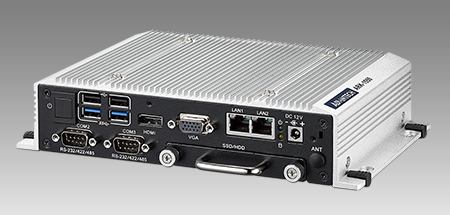

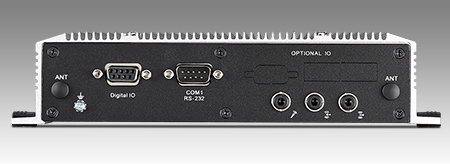

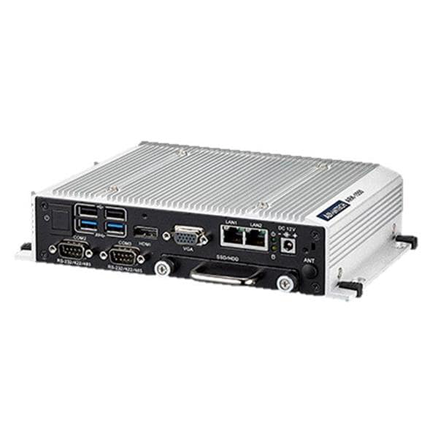

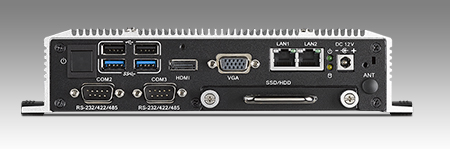

ARK-1550 is slim and panel mountable Fanless system which equipped with 4th generation Intel Core i5/Celeron SoC with Intel Turbo Boost 2.0 support. CPU performance than the previous generation upgrades more than 120%. System height is only 4.6 cm and can support wide temperature -20 to 55C. Customer can choose DIN Rail, VESA and Wall mount kit in different environments. In addition, ARK-1550 supports VGA, HDMI and LVDS displays, hot-swappable 2.5″ HDD, DIO and 3 COMs. Also, WIFI, 3G and dual Gigabit LANs can be used simultaneously to improve the performance of data transmission. ARK-1550 has passed CE/FCC/UL/CB/CCC/BSMI certifications and its high reliability, performance, quality and robust design are good for all kinds of embedded applications.
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Dual Core Celeron 2980U 1.6 GHz / Core i5 4300U 1.9 GHz SoC
- One Swappable 2.5″ SATA HDD Bay and mSATA slot
- Triple Independent Displays by VGA + HDMI + LVDS (LVDS option)
- Optional VESA / DIN Rail Mounting kits
- Supports 2 x Intel GbE and 1 x GPIO
- Lockable DC jack design
- Supports iManager, SUSIAccess and Embedded Software APIs
- Support Intel Turbo Boost Technology 2.0 in Core i5 4300U
- No RED Certification
