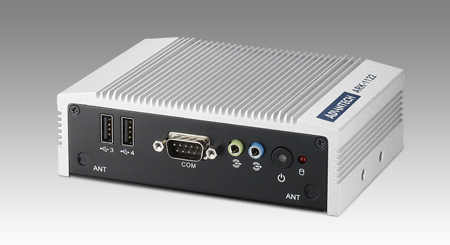

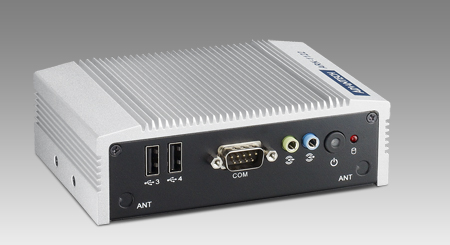

ARK-1122HS Independent Dual Displays Intel® Atom™ N2600 Fanless Embedded Box PC
£501.00 excl. vat
ARK-1122HS-S6A1E is an ALL IN ONE palm size Fanless Embedded Box PC with Intel Atom N2600 CPU. It adopted ARK-1122H-S6A1E which integrated with 2G RAM, 2.5″ 500G HDD, WES7 and SUSIAccess Pro preloaded. It is just plug and play and will bring much more conveniences for our customers. ARK-1122HS-S6A1E can save at least 12% cost if assembly by CTOS and save at least 30% cost if bundle by customer. Also, we assured the product reliability and compatibility before shipment
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet -
- Plug and Play : 3 STEPs to power on the appliance unit for instant use
- Fanless design with Intel® Atom™ N2600, 1.6 GHz
- 2G DDR3 Memory & 500G 2.5″ HDD built-in
- Window Embedded 7 & SUSIAccess Pro (w/ Acronis and McAfee) preload
- Palm-size form factor : 134 x 94 x 43 mm

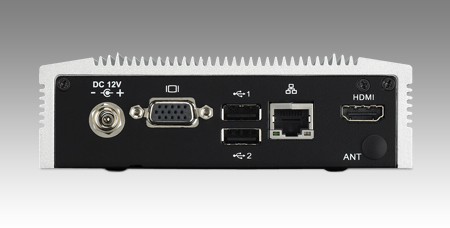

- Supports independent dual displays interfaces : VGA + HDMI
- Supports 1 x GbE LAN and 4 USB 2.0 ports

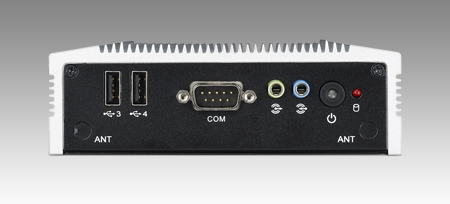

- Supports 1 x RS-232 and 1 x line in / line out
- Built-in 1 x half size Mini PCIe expansion slot (i.e.: WiFi module)
- Optional VESA / DIN-Rail / Wall mounts
Processor System
-
- CPU: Intel Atom DC N2600 1.6 GHz
- System Chipset: Intel NM10
- BIOS: AMI EFI 16 Mbit
Memory
-
- Technology: 2GB DDR3 memory built-in
Graphics
-
- Chipset: Intel Atom N2600
- Interface: VGA (1920 x 1200)
HDMI (1920 x 1200) with lockable design
Ethernet
-
- LAN: 1 x GbE Intel 82583V LAN
Audio
-
- Chipset: Realtek ALC892, High Definition Audio (HD)
- Interface: Line-in and Line-out
I/O Interface
-
- Serial Ports: 1 x RS-232
- USB Interface: 4 x USB ports, USB2.0 Compliant
Other
-
- Watchdog timer: 255-level timer interval, setup by software
Expansion
-
- Mini PCIe: 1 x half-size Mini PCIe
Storage
-
- 2.5″ HDD: 500 GB 2.5″ SATA HDD built-in
- mSATA: 1 x full-size Mini PCIe slot
Software
-
- Operating System: WES7E 32bit (Eng/Jpn/Chs/Cht/Spain) Preload
- Remote management & Security: SUSIAccess Pro (w/ Acronis and McAfee) Preload
Power Requirement
-
- Power Input Voltage: Supports single 12 V input, ± 10%
- DC Jack Type: Support lockable design
- Power Adaptor: AC to DC, DC12 V/3 A, 36 W with lockable design
Mechanical
-
- Construction: Aluminum housing
- Mounting: Support VESA/DIN Rail/Wall mounting (Optional)
- Dimensions (W x H x D): 133.8 x 43.1 x 94.2 mm (5.27″ x 1.7″ x 3.71″)
Environmental and Certifications
-
- Operating Temperature: 0 ~ 40° C
- Storage Temperature: -40 ~ 85° C
- Relative Humidity: 95% @ 40° C (non-condensing)
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: CB, UL, CCC, BSMI
