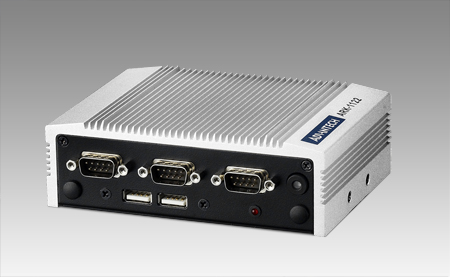

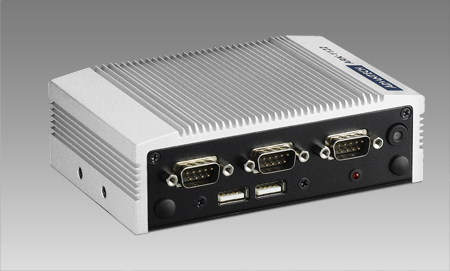

ARK-1122C Palm-size and 4 COM Ports Intel® Atom™ N2600 Fanless Embedded Box PC
£306.00 excl. vat
ARK-1122C is a palm size Fanless Embedded Box PC with Intel Atom N2600 CPU which power consumption under 10W. Combined with ultra small form factor and 4 COM ports(2 x RS-232 & 2 x RS232/422/485, selected by BIOS), ARK-1122C reserves high availability in self service kiosks and industrial automation markets with optional VESA/DIN-Rail mountings. Moreover, ARK-1122C provides the superior reliability with fanless and wide temperature(-20~60C)design.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Atom™ Dual Core N2600, 1.6 GHz
- Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
- Supports 4 x COM ports (2 x RS-232 & 2 x RS-232/422/485, select by BIOS)
- Supports 1 x VGA and 4 x USB 2.0 ports
- Built-in 1 x half size Mini PCIe expansion slot (i.e.: Wi-Fi module)
- Supports mSATA storage (Hard drive bay by request)
- Wide operating temperature -20 ~ 60° C support
- Optional VESA / DIN-Rail / Wall mounts
- Lockable DC jack design
- Supports SUSIAccess and Embedded Software APIs
Processor System
-
- CPU: Intel Atom Dual Core N2600 1.6 GHz
- L2 Cache: 1MB
- System Chipset: Intel NM10
- BIOS: AMI EFI 16 Mbit
Memory
-
- Technology: DDR3 800 MHz, up to 4 GB
- Socket: 1 x 204-pin SO-DIMM
Graphics
-
- Chipset: Intel Atom N2600
- Interface: VGA (1920 x 1200)
Ethernet
-
- LAN: 1 x 10/100/1000 Mbps Intel 82583V GbE
I/O Interface
-
- Serial Ports: 2 x RS-232, 2 x RS-232/422/485, selected by BIOS
- USB Interface: 4 x USB ports, USB2.0 Compliant (Standard)
or 2 x USB ports (Option 2.5″ drive bay version)
Other
-
- Watchdog timer: 255-level timer interval, setup by software
Expansion
-
- Others: 1 x half-size Mini PCIe supports WIFI only
Storage
-
- 2.5″ HDD/SSD: 1 x SATA II HDD bay (Optional by T-Part)
- mSATA: 1 x full-size Mini PCIe slot, colay with USB signal
Software Support
-
- Microsoft Windows: Windows 7 Pro 32bit, WES7 32bit, XP Embedded (XP Embedded by project support)
Power Requirement
-
- Power Input: Voltage 12 VDC, ± 10%
- DC Jack Type: Support lockable design
- Power Adaptor: AC to DC, DC12 V/3 A, 36 W with lockable design
Power Consumption
-
- Typical: 5.4 W
- Max: 9.47 W
Mechanical
-
- Construction: Aluminum housing
- Mounting: Support VESA/DIN Rail/Wall mounting (Optional)
- Dimensions (W x H x D): 133.8 x 43.1 x 94.2 mm (5.27″ x 1.7″ x 3.71″)
Environmental and Certifications
-
- Operating Temperature: With standard temperature HDD/SSD/mSATA devices: 0 ~ 40° C with 0.7 m/s air flow
With extended temperature SSD/mSATA devices: -20 ~ 60° C with 0.7 m/s air flow
-
- Storage Temperature: -40 ~ 85° C
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration During Operation: With SSD/mSATA: 3Grms, IEC 60068-2-27, half sine, 11ms duration
- Shock During Operation: With SSD/mSATA: 30Grms, IEC 60068-2-27, half sine, 11ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: CB, UL, CCC, BSMI
