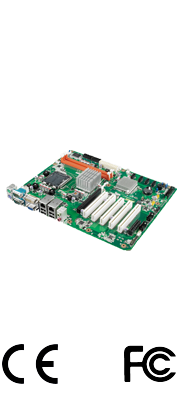

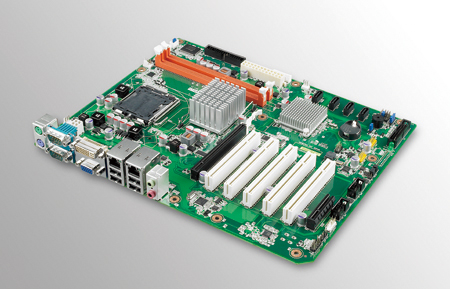

AIMB-767 LGA775 Intel® Core™2 Quad ATX with Dual VGADVI, 4 COM, Dual LAN
Call for Price
AIMB-767 is designed by Intel G41 and the ICH7R for industrial applications that need dual display of DVI plus VGA and rich strong I/O capability. It supports Intel LGA 775 Core 2 Duo, Core 2 Quad, Pentium Dual-Core and Celeron 400 series processors with FSB up to 1333MHz and DDR3 800/1066MHz SDRAM up to 4GB, and it is capable of software SATA RAID 0, 1, 5 & 10 to ensure reliable storage and system protection for network-intensive applications.
Please click the link below to open the PDF datasheet
View Datasheet - Processor System
- CPU (45nm/65nm): Intel Core 2 Quad
- Max. Speed: Q9650 3.0 GHz
- L2 Cache: 12 MB
- CPU (45nm/65nm): Intel Core 2 Duo
- Max. Speed: E8500 3.16 GHz
- L2 Cache: 6 MB
- CPU (45nm/65nm): Intel Pentium
- Max. Speed: E6500 2.93 GHz
- L2 Cache: 8 MB
- CPU (45nm/65nm): Intel Celeron
- Max. Speed: E1500 2.2 GHz
- L2 Cache: 512 KB
- Chipset: Intel G41 + ICH7R
- BIOS: AMI 16 Mbit, SPI
- Front Side Bus: 800/1066/1333 MHz
- PCIe x16: 4.0 GB/s per direction, 1 slot
- PCIe x4: 1 GB/s per direction, 1 slot
- PCI: 32-bit/33 MHz, 5 slots
- Technology: Dual channel DDR3 800/1066 MHz
- Max. Capacity: 8 GB
- Socket: 2 x 240-pin DIMM
- Embedded: Intel GMA X4500 shared 352 MB system memory
- DVI: Yes (If PCIe x16 slot is used, DVI is automatically disabled)
- Dual Display: VGA + DVI
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Intel 82583V, GbE LAN2: Intel 82583V
- Connector: RJ-45 x 2
- Max. Data Transfer Rate 300 MB/s
- Channel: 4
- VGA: 1
- DVI: 1
- Ethernet: 2
- USB: 4
- Audio: 2 (Line-out, Mic-in)
- Serial: 2 (2 x RS-232)
- PS/2: 2 (1 x keyboard and 1 x mouse)
- USB: 4
- Serial: 2 (1 x RS-232/422/485 with auto-flow control)
- Parallel: 1
- SATA: 4
- FDD: 1
- Output: System reset
- Interval: Programmable 1 ~ 255 sec
- Power On: Intel Core 2 Quad Q9400 2.66 GHz FSB 1333 MHz, 2 x 2 GB DDR3 1066 SDRAM
- Operating Temperature 0 ~ 60° C (32 ~ 140° F), depends on CPU
- Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions (W x D): 304.8 x 244 mm (12″ x 9.6″)
Expansion Slot
Memory
Graphics
Ethernet
SATA II

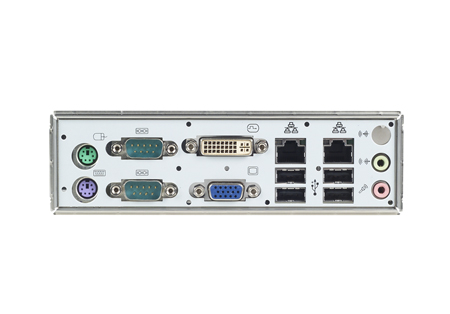

Rear I/O
Internal Connectors
Watchdog Timer
Power Requirement
3.3 V/ 5 V/ 12 V/ 5 Vsb/ -12 V
0.28 A/ 3.12 A/ 2.52 A/ 0.6 A/ 0.24 A
Environment
speed and cooler solution
Physical Characteristics
