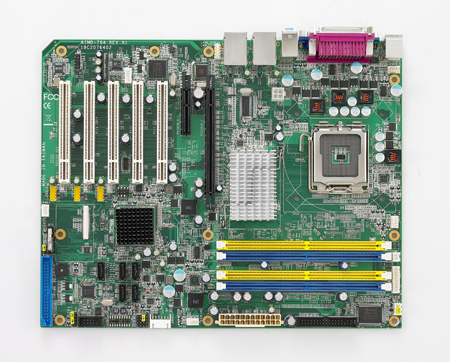

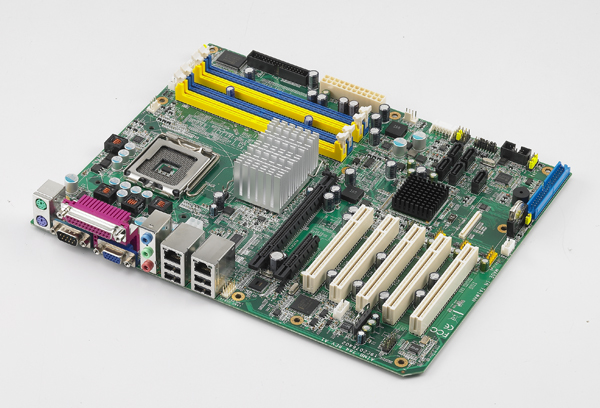

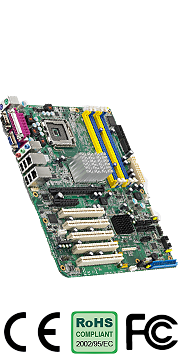

AIMB-764 LGA 775 Core™ 2 Quad/ Core™ 2 Duo/ Pentium® 4 / Celeron® D Processor-based ATX with DDR2/PCIe/Dual LAN
Call for Price
Full-sized industrial ATX motherboards measure 305 x 244 mm and support up to 7 expansion slots. Advantech’s ATX motherboards offer a wide range of computing capacities from low power intel Pentium M based solutions to the latest multi- core processors.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Q965 533/800/1066 MHz FSB
- Supports Intel Core™ 2 Duo processor
- Dual channel DDR2 533/667/800 SDRAM up to 8GB
- Chipset integrated VGA sharing 256MB system memory
- PCIe x16 slot for VGA card
- Five SATA II ports with 300 MB transfer rate
- Supports SATA RAID 0,1,5 and 10
- Supports Dual 10/100/1000Base-T Ethernet via dedicated PCIe x1 bus
- Processor System(all)
- Chipset: Intel Q965+ICH8DO
- BIOS: Award 16Mbit SPI
- Front Side Bus: 533/800/1066 MHz
- Max. Speed: 2.66 GHz
- L2 Cache: 8 MB
- Max. Speed: 2.8 GHz
- L2 Cache: 3 MB
- Max. Speed: 2.2 GHz
- L2 Cache: 1 MB
- Max. Speed: 3.8 GHz
- L2 Cache: 2 MB/1 MB
- Max. Speed: 3.06 GHz
- L2 Cache: 512 KB/ 256 KB
- PCIe x16: 4.0 GB/s per direction, 1 slot
- PCIe x4: 1 GB/s per direction, 1 slot
- PCI: 32-bit/33MHz, 5 slots
- Technology:Dual channel DDR2 533/667/800 MHz
- Max. Capacity: 8 GB
- Socket: 240-pin DIMM x 4
- Embedded: Intel GMA 3000 sharing 256 MB system memory
- Add-on:PCIe x16 slot
- Interface: 10/100/1000 Base-T
- Controller: GbE LAN1 Intel 82556DM; GbE LAN2:Intel 82573L
- Connector:RJ-45 x 2
- Max. Data Transfer Rate: 300 MB/s
- Channel:5
- Mode: ATA 100/66/33
- Channel: 1 (Max. 1 device)
- VGA: 1
- USB: Max. 10 (USB 2.0 compliant), 4 ports on board
- Audio: 2 (MIC-In, Line-Out)
- Serial: 2 (COM2 for RS232/422/485)
- Parallel: 1 (SPP/EPP/ECP)
- FDD: 1
- PS/2: 2
- Out put:System reset
- Interval: Programmable 1~255 sec/ min
- Typical: Intel Core 2 Duo 2.13 GHz and four 1 GB DDR2 667Mhz SDRAM
- Operating Temperature:0-55° C (32 ~ 131° F), depends on CPU’s speed and cooler solution
- Non-Operating Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions (W x D): 304.8 x 244 mm (12″ x 9.6″)
Processor System(Intel Core 2 Quad)
Processor System(Core 2 Duo)
Processor System(Pentium dual-core)
Processor System(Pentium 4)
Processor System(Celeron D)
Expansion Slot
Memory
Graphics
Ethernet
SATA II
EIDE
I/O Interface
Watchdog Timer
Power Requirement
+12V/10A +5V/4.5A +3.3V/4A 5Vsb/1A
Environment
Characteristics
