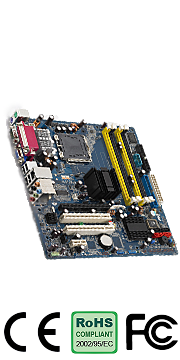

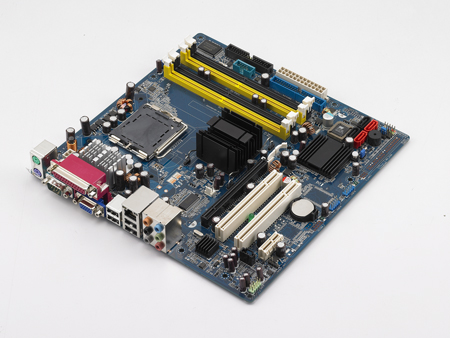

AIMB-562 Intel® Core™2 Duo LGA 775 MicroATX with Dual CRT/LVDS, 10 COM, Single LAN
Call for Price
AIMB-562 Intel® 945G chipset 533/800/1066 MHz FSB. Supports Intel® Core™ 2 Duo processor.Dual channel DDR2 533/667 SDRAM up to 4 GB.Chipset integrated VGA sharing 224 MB system memory.PCIe x16 slot for VGA card.Four SATA II ports with 300 MB transfer rate. Supports single 10/100/1000Base-T Ethernet via dedicated PCIe x1 bus.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® 945G chipset 533/800/1066 MHz FSB
- Supports Intel® Core™ 2 Duo processor
- Dual channel DDR2 533/667 SDRAM up to 4 GB
- Chipset integrated VGA sharing 224 MB system memory
- PCIe x16 slot for VGA card
- Four SATA II ports with 300 MB transfer rate
- Supports single 10/100/1000Base-T Ethernet via dedicated PCIe x1 bus
- Processor System(all)
- Chipset: Intel® 945G + ICH7
- BIOS: AMI® 4 Mbit, FWH
- Front Side Bus: 533/800/1066 MHz
- Max. Speed: E6700 2.66 GHz
- L2 Cache: 4 MB
- Max. Speed: 940 3.2 GHz
- L2 Cache: 4 MB
- Max. Speed: 672 3.8 GHz
- L2 Cache: 2 MB/1 MB
- Max. Speed:E2200 2.2 GHz
- L2 Cache: 1 MB
- Max. Speed:346 3.06 GHz
- L2 Cache: 512 KB/256 KB
- PCIe x16: 4.0 GB/s per direction, 1 slot
- PCIe x1: 250 MB per direction, 1 slot
- PCI: 32-bit/33MHz, 2 slots
- Technology: Dual channel DDR2 533/667 MHz
- Max. Capacity:4 GB
- Socket: 4 x 240-pin DIMM
- Embedded: Intel® GMA 950 sharing 224 MB system memory
- Add-on: PCIe x16 slot
- Interface: 10/100/1000 Base-T
- Controller: GbE LAN: Intel 82573L
- Connector: RJ-45 x 1
- Max. Data Transfer Rate: 300 MB/s
- Channel: 4
- Mode:ATA 100/66/33
- Channel:1 (Max. 2 devices)
- USB:Max. 8 (USB 2.0 compliant), 4 ports on board
- Audio:6 (MIC-In, Line-In, Line-Out, CD-Audio)
- Serial:2
- Parallel:1 (SPP/EPP/ECP)
- FDD:1
- PS/2:2
- OutputSystem: reset
- Interval Programmable: 1~255 sec/ min
- Typical: Pentium 4 3.4 GHz, 1 GB SDRAM, 80 GB HDD
- Operating Temperature:0 ~ 60° C (32 ~ 140° F), depends on CPU’s speed and cooler solution
- Non-Operating Temperature:-20 ~ 70° C (-4 ~ 158° F)
- Dimensions (W x D):244 x 244 mm (9.6″ x 9.6″)
Processor System(Intel® Core™ 2 Duo)
Processor System(Intel® Pentium® D)
Processor System(Intel® Pentium® 4)
Processor System(Intel® Pentium® Dual-Core)
Processor System(Intel® Pentium® Dual-Core)
Expansion Slot
Memory
Graphics
Ethernet
SATA II
EIDE
I/O InterfaceVGA:1
Watchdog Timer
Power Requirement
+12V/10.35A +5V/3.95A +3.3V/4.5A 5Vsb/1.2A -12V/36mA
Environment
Physical Characteristics
